Home > Products > powder filling machine > automatic powder filling machine
automatic powder filling machine
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Cartons | Packaging Material | Metal | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 1.5KW | Place of Origin | Shanghai, China | |
| Brand Name | Minhua | Model Number | DHCS series |
Product Description
Specifications
1.automatic powder filling machine .2.automatic weighter
3.Stainless steel SUS304
4.Touch screen setting .
5.optional feede
Specification

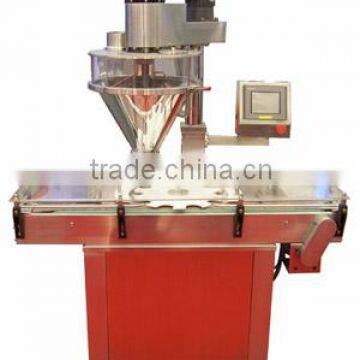

automatic powder filling machine.
This series could do work of measuring ,can holding ,and filling ,etc ,it can constitute the whole set can filling work line with other related machines ,and suitable for filling kohl ,glitter ,pepper ,cayenne pepper ,cayenne pepper ,milk powder ,coffee powder ,medicine powder , additive ,essence and spice ,etc
Main Features :
Stainless steel structure ,level split hopper could be washed easily without tools .
Servo-motor drive powder.
Servo controlled turntable with stable performance .
PLC Touch screen and weighing module control ,
With adjustable height-adjustment handweel at reasonable height ,easy to adjust the head position ..
With pneumatic can lifting device to assure the material not spilling out when filling .
Weight chosen device ,to assure each product be qualified ,so to leave the latter cull eliminator ,
To save all products parameter formula for later use , save 10 sets at most .
When changing the auger accessories ,it is suitable for materials ranging from super fine powder to small granular .
Model | DHCS-2A-2 | DHCS-2B-2 |
Container Size | 20-85mm H10-150mm | 30-160mm H50-280mm |
Packing Weight | 1g--500g | 10-5000g |
Packing Accuracy | ≤ 100g , ≤ ± 2 % ;100-500g ≤ ± 2 % | ≤ 500g , ≤ ± 1 % ;500g,≤ ± 0.5 % |
Filling Speed | 30-50 cans /min | 30-50 cans /min |
Powder supply | 3P AC208-415V 50-60HZ | 3P AC208-415V 50-60HZ |
Air Compress | 6KG/c 0.05CBM/min | 6KG/c 0.05CBM/min |
Total Power | 1.8 Kw | 2.3Kw |
Total Weight | 250KGS | 350KGS |
Overall Size | 1000x720x1800mm | 1600x100x2000mm |
Hopper volume | 35L | 45L (Enlarged Size 65L ) |
