Home > Products > powder filling machine > Automatic powder filler with weigher DCS-5B series

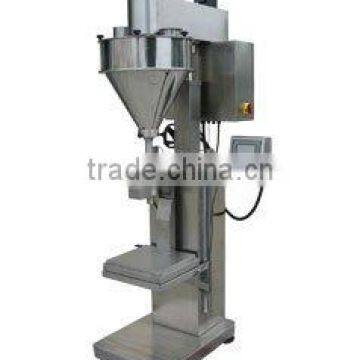

Automatic powder filler with weigher DCS-5B series
- Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China |
Product Description
Specifications
It is suitable for filling carbon powder, dry powder of fire extinguisher, and other fine powder which needs high accuracy.
Descriptions:
This model is designed mainly for the fine powder which easily to spout dust and high-accuracy packing requirement. Based on the feedback sign given by below weight sensor, this machine do measuring, two-filling, and up-down work, etc. It is specially suitable for filling carbon powder, dry powder of fire extinguisher, and other fine powder which needs high packing accuracy
Features:
l Weight sensor is below the tray, to do fast filling and slow filling based on the pre-set weight,to guarantee the high packaging accuracy.
l Servo motor does up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filing.
l With servo motor and servo driver controll auger, perform stably, and with high accuracy.
l PLC control, ouch screen display, easy to operate.
l Made of stainless steel, combined hopper, easily to be cleaned.
l With handwheel to adjust the height, easy to fill many kinds of weight.
l With fixed screw installation, the material quality won't be effected.
l Process: put bag/can(container) on the machine → container raise → fast filling, container declines → weight reaches the pre-set number → slow filling → weight reaches the goal number → take the container away manually.
Note: the pneumatic bag-clamp equipment and can-hold set is optional, they are suitable for can or bag filling
separately.
Model | DCS-5B-1 | DCS-5B-2 |
Feeding Mode | 100g-10kg | 1-50kg |
Filling Weight | 100-1000g,≤±2g; >1kg, ≤±0.1-0.2% | ≤±0.1-0.2% |
Filling Rate | 5-30 times/min | 5-25 times/min |
Power Supply | 3P AC 208-415V 50/60Hz | 3P AC 208-415V 50/60Hz |
Total Power | 2.2kw | 2.7kw |
Total Weight | 350kg | 400kg |
Overall Dimensions | 1000x850x2300 mm | 1100x950x2500 mm |
Hopper volume | 70L | 100L |
