Home > Products > New Products > 5.3mm super narrow bezel Sumsung DID LCD video Wall/ Big size video wall, advertising displays, LCD monitor

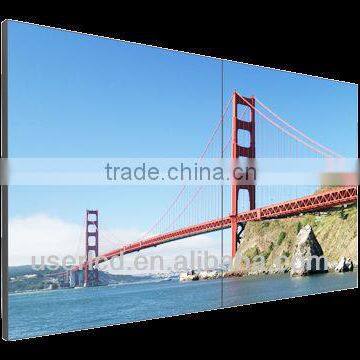

5.3mm super narrow bezel Sumsung DID LCD video Wall/ Big size video wall, advertising displays, LCD monitor
US$ 1 - 9,999
/ Unit
1 Unit(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | User | |
| Model Number | US-PJ5501 | Type | TFT | |
| Application | Indoor | Panel Size | 55Inch | |
| Max Resolution | 1920x1080 | Viewing Angle | 178 | |
| Color | 16.7M | Contrast Ratio | 3500:1 | |
| Brightness | 450 | Response Time | 6ms | |
| Input Voltage | Max 250W |
Product Description
Specifications
Sunlight readableUltra-low power consumption
Waterproof
wider work tempareture
long life time(60000hrs)
Features of Samsung DID LCD MONITOR
1. Samsung DID LCD screen, high brightness, high contrast, high resolution
2. Super narrow edge design, narrow border a range of 1.7 mm - 11 mm
3. Built-in splicing controller splicing unit
4. 178 ° wide perspective
5. High stability, long life, life for as long as 60000 hours
6. Unitize, modular design, can be single use, also can use mosaics
7. Rich input signal output interface, may meet computer and all kinds of video equipment
8. Cheapest price with factory
| Specifications | ||||||||
| Model No. | PJ5502(US-LTI550HN05) | |||||||
| Panel Size | 55" Samsung DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight) | |||||||
| Aspect Ratio | 16:9 | |||||||
| Max Resolution Support | 1920x1080 | |||||||
| Color | 8Bit,16.7M | |||||||
| Brightness (nits) | 450cd/m2 | |||||||
| Contrast | 3500:1 | |||||||
| Visual Angle (H/V) | 178° | |||||||
| Response Time | <=6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Input and output | ||||||||
| DVI | 1 | |||||||
| HDMI | 1 | |||||||
| VGA | 1 | |||||||
| YPbPr | 1(BNCx3) | |||||||
| S-video | 1(BNCx2) | |||||||
| Composite Video Input/(AV) | 3(BNCx3) | |||||||
| Composite Video Output | 2(BNCx2) | |||||||
| Control signal input and loop out | RS232(RJ45-8) | |||||||
| Split Screen | Support Picture in Picture(PIP/POP) | |||||||
| Power | ||||||||
| Power Supply | AC100V~240V | |||||||
| Maximum Power Consumption | 250W | |||||||
| Standby Power Consumption | <=3W | |||||||
| Temperature | ||||||||
| Working Temperature | 0°C~50°C | |||||||
| Working Humidity | 20%-80% | |||||||
| Dimension | 1215.3mm × 686.1mmx116.2mm | |||||||
| Video Wall Controller(Built-in each Screen) | ||||||||
| Model No. | US-P816A | |||||||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs | ||||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |||||||
| Y/C | 2*BNC inputs, support PAL/NTSC all formats | |||||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
| Operate mode | Panel key operation(needs customization) | |||||||
| Standard RS232 port( provide free control software) | ||||||||
| Infrared Remote Control Operation | ||||||||
| Engineering software | Customized | |||||||
| Working temperature | 0~70 °C | |||||||
| working humidity | 5~95 %RH | |||||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||||
| power consumption | Max 300W,according to different Screen models | |||||||
| Dimension | 338×295×60(mm) | |||||||
| Weight | About 3.5KG | |||||||
