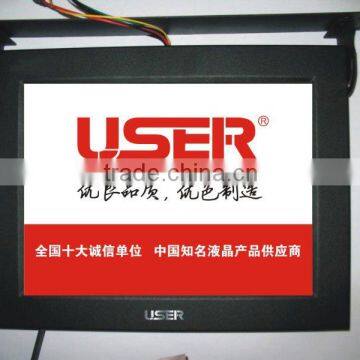

17 inch advertising lcd monitors for Bus

Detailed functions

Video format

MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI

Audio format

Wave/MP3/WMA/AAC

Image format

JPEG/BMP/TIFF/PNG/GIF

Image resolution

480P/720P

Play mode

Power on, single card auto loop play;classified files auto loop play;

multi cards auto loop display etc

Time

year/month/day/week/h/m/s, in the top right corner (open and close optional)

Timing open & close

Per day 5 times, 7 days a week, free time

Timing play

7 days a week, free set the play program everyday

Alarm clock

Set 5 alarms one day, once ring the alarm, play the specified program

OTG

Support copy, delete, remove, rename, build new file among different cards

Running subtitle

Can set the play location, word size, color and back-color

Log files

Record the play time (concise to second), the play contents

Angle subscript display function

Can set the play time, just support BMP picture with biggest resolution

160*90

Memory function

Power off, memory the time of the play; power on, play from the time,

not from beginning

Key and lock function

Use the remote controller before input the keyword

Encrypt CF card

Play the contents in the CF card before input the keyword

Sound volume

Can set the volume of sound in the different time

Storage card lock

Have a anti-theft lock in the case, equip 2 sets key

Other function

Customized

Upgrade software

Just put the upgrade file in the storage cards

Specification model

US-M1701C

Panel size

17″TFT-LCD

Display area(mm)/mode

304(W)×272(H)  4:3

Maximum resolution

1280*1024

Display color

16.7M

Pixel Pitch(mm)

0.264(H)×0.264(V)

Brightness (nits)

450cd/m2

Contrast

1000:1

Visual angle

170°/170°

Response time

5ms

Life(hrs)

>60,000(hrs)

Input and output

Composite video input

No

Y,Pb,Pr/Y,Cb,Cr input

No

S-video

No

HDMI

No

Composite video loop output

1

L/R audio input

1 ( RCA * 2)

L/R audio output

1 ( RCA * 2)

Speaker

2×5W(9Ω)

Video

Color system

PAL/NTSC/SECAM

Remote controller

Special

Ads input interfaces

USB

1 ( USB2.0 interface)

SD

1

CF

1

OSD display( screen menu display)

Menu language

Chinese/English( multiple language option required)

Power

Power supply

DC12V 2A

Maximum power consumption

50W

Standby power consumption

<3W

Temperature

Working temperature

0°C~50°C

Storage temperature

-20°C~60°C

Working humidity

85%

Storage humidity

85%

Appearance

Body dimension(Lx W x H)mm

329*258*60 (just for reference)

Panel color/appearance

White, black, customized

Panel material

Metal case SPCC

Installation

Ceiling mount
