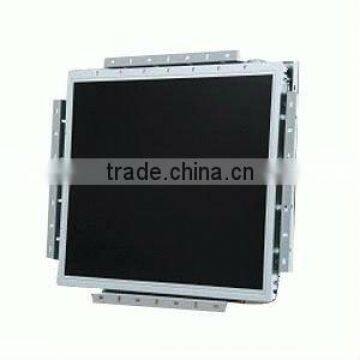

Open frame HD 24 inch LCD Monitor(Professional)
USD $1 - $999
/ Set
10 Sets(Min.Order)
- 1000 Set / Sets per Month
- shenzhen
- Credit Card
You May Like
-
42 inch FHD LCD cctv monitor with FCC,CE,UL,RoHS certificates
-
32 inch Outdoor waterproof LCD digital signage,high brightness,auto-dimming system
-
network indoor lcd digital signage with 1,920 x 1,080 pixels
-
Awsome!!46''Full HD Floor Standing LCD Digital Signage Media Player
-
Indoor: 63 inch TFT lcd advertising digital signage
-
Large display 55 inch LCD Video Wall with Ultra Slim BezelWall
Product Details
| Place of Origin | China | Brand Name | User Or OEM | |
| Model Number | US-M2401O |
Product Description
Specifications
Open frame HD 24 inch LCD MonitorDisplay area(mm)/mode: 518.4(W) x 324(H) 16:10
Maximum resolution: 1920x1200
Open frame HD 24 inch LCD Monitor
| Specifications | ||||||||||
| Model No. | US-M2401P | |||||||||
| Panel size | 24" TFT-LCD | |||||||||
| Display area(mm)/mode | 518.4(W)×324(H) 16:10 | |||||||||
| Maximum resolution | 1920x1200 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.270(H)×0.270(V) | |||||||||
| Brightness (nits) | 500cd/m2 | |||||||||
| Contrast | 1200:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 31-60KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 2 (BNC×2) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 3 (BNC×3) | |||||||||
| S-video | 1 (optional) | |||||||||
| D-15 pin RGB input | 1 | |||||||||
| DVI/HDMI | 1 (optional) | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI/DVI input | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <52W | |||||||||
| Standby power consumption | <3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10-90% | |||||||||
| Storage humidity | 60% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 572×378×94mm | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Metal | |||||||||
| Net weight | 12kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||
