Home > Products > New Products > 22" Rack Mount Surveillance/ CCTV LCD Monitor

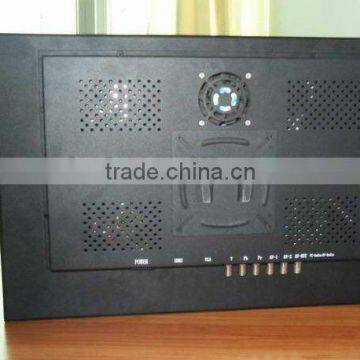

22" Rack Mount Surveillance/ CCTV LCD Monitor
- 5000 Set / Sets per Month
- shenzhen
- Credit Card
You May Like
-
46 inch DID SAMSUNG panel LCD display Video Wall with Super Narrow Bezel
-
New indoor panel LCD video wall,lcd split wall,tv wall
-
46inch SAMSUNG panel LTI460AA05 lcd video wall
-
55 inch 4x4 narrow bezel 5.7mm lcd video wall DID with original new Samsung lcd panel
-
2013 top quality 3*4 panel lcd video advertising wall monitor
-
15 Inch five-wire resistive touchscreen TFT-LCD Monitor
Product Details
Place of Origin | Guangdong, China | Brand Name | User | |
Model Number | US-M2001P |
Product Description
Specifications
BNC interfaceFor CCTV or IP network cameras
Single or from multiple cameras on a screen
Product NO.:US-M2001P
Accept :OEM&ODM
Available size:5"7"8"10.4"15"17"19"22"24"26"32"37"42"47"52"55"65"70"82"
Product name: Security Field High brightness 32" HD CCTV LCD Monitor
Specifications | ||||||||||
Model No. | US-M2001P | |||||||||
Panel size | 20" TFT-LCD | |||||||||
Display area(mm)/mode | 700(W)×394(H) 16:9 | |||||||||
Maximum resolution | 1366×768 | |||||||||
Display color | 16.7M | |||||||||
Pixel Pitch(mm) | 0.51075(H)×0.51075(V) | |||||||||
Brightness (nits) | 600cd/m2 | |||||||||
Contrast | 4000:1 | |||||||||
Visual angle | 178°/178° | |||||||||
Response time | 5ms | |||||||||
Horizontal frequency | 30-75KHZ | |||||||||
Vertical frequency | 56-75KHZ | |||||||||
Life(hrs) | 60,000(hrs) | |||||||||
Input and output | ||||||||||
Composite video input | 3 (BNC×3) | |||||||||
YPbPr input | 1 (BNC×3) | |||||||||
S-video input | 2 (BNC×2) | |||||||||
VGA | 1 | |||||||||
HDMI | 1 | |||||||||
DVI | 1 | |||||||||
Composite video output | 2 (BNC×2) | |||||||||
Video | ||||||||||
Color system | PAL/NTSC/SECAM | |||||||||
Compatible HDMI/DVI input | 480P,576P,720P,1080I,1080P | |||||||||
3D Comb filter | Yes | |||||||||
Video reduction noise | Yes | |||||||||
OSD display( screen menu display) | ||||||||||
Menu language | Chinese/English | |||||||||
Power | ||||||||||
Power supply | AC100V~240V,50/60Hz | |||||||||
Maximum power consumption | <120W | |||||||||
Standby power consumption | 3W | |||||||||
Temperature | ||||||||||
Working temperature | 0°C~50°C | |||||||||
Storage temperature | -20°C~60°C | |||||||||
Working humidity | 10%~95% | |||||||||
Storage humidity | 10%~95% | |||||||||
Appearance | ||||||||||
Body dimension(Lx W x H)mm | 773.6×470.0×116.2mm | |||||||||
Panel color/appearance | White,black,customized | |||||||||
Case Material | Metal | |||||||||
Net weight | 23kg | |||||||||
Installation | Wall-mounted,desktop(optional) |
Applicable field:
1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy. Department store,
2.Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3.Non-profit Organizations: Telecommunications, post offices, Hospital information center , Education system;
4.Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Communication center, Traffic control center,
5.Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers; Warehouse,Conference Center
6.Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf cours,
Advantage:
1) Good service and honesty based;
2) Experienced R&D Department;
3) Buyer's Specifications Accepted;
4) OEM and ODM Production Capability;
5) Reliability;
6)Speedy shipment: sample shipment within 3 working days after receipt of your payment.
Warranty:
1 year free warranty
Our Service
1, Reply your inquiry in 24 working hours .
2, Experienced staffs answer all your questions in fluent English .
3, Customized requirment is available , OEM&ODM are welcome.
4, Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5, Special discount and protection of sales area provided to our distributor.
Company and products information related
Established in 2003, Shenzhen User Special Display Technologies Co., Ltd is a high tech enterprise, specializing in development, production and marketing of
special displays. The company can customize special displays of 5~82 inches according to customer need.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are
divided into several series:LCD video wall, CCTV LCD monitor,LCD advertising player,digital signage ,electronic whiteboard,Multimedia kiosk,Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, large size high definition data LCD display, video wall processor,and so on.
Welcome to visit our company!
