Home > Products > New Products > All Weather Using Lcd Video Wall(Narrow bezel)

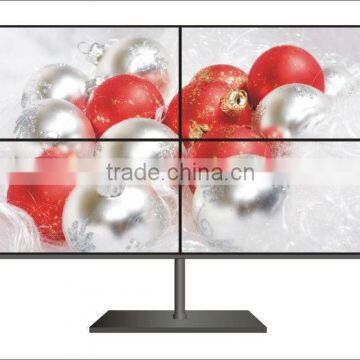

All Weather Using Lcd Video Wall(Narrow bezel)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | User Or Oem | |
| Model Number | PJ-4203 | Type | TFT | |
| Application | Indoor | Panel Size | 42 Inch | |
| Max Resolution | 1920x1080 | Viewing Angle | 178D | |
| Pixel Pitch | 0.53*0.53 | Color | 16.7M | |
| Contrast Ratio | 3000:1 | Brightness | 450cd/m2 | |
| Response Time | 6ms | Input Voltage | 250W |
Product Description
Specifications
lcd video wall1.Brightness: 450cd/m2
2.Max Resolution Support:1366x768
3.Contrast: 2000:1
lcd video wall
46inch Narrow Bezel 6.7mm LCD video wall
Features:
High brightness,High definition and high gaumt
Narrow bezel design
Optional joining methods
Environmental & safety
Advanced screen parameter revise functions
Stable operation , long life and low maintenace costs
The LCD video wall bracket adopts steel structure,firm and embedded installation,simple and compact structure,save space
| Specifications | ||||||||
| Model No. | PJ4203 | |||||||
| Screen size | 42'' Samsung DID LCD screen(super narrow bezel 6.7mm) | |||||||
| Aspect Ratio | 16:9 | |||||||
| Resolution | 1920x1080 | |||||||
| Color | 8Bit,16.7M | |||||||
| Brightness (nits) | 450cd/m2 | |||||||
| Contrast | 2000:1 | |||||||
| Visual angle (H/V) | 178° | |||||||
| Response time | <=6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Input and output | ||||||||
| Composite Video Input | 3(3xBNC) | |||||||
| YUV/YPbPR | 1(3xBNC) | |||||||
| S-YC | 1(2xBNC) | |||||||
| D-15 RGB Input(VGA) | 1 | |||||||
| HDMI | 1 | |||||||
| DVI | 1 | |||||||
| Audio Input | 1 | |||||||
| Composite Video Output | 2(2xBNC) | |||||||
| Split Screen | Support Picture in Picture(PIP/POP/PAP) | |||||||
| Power | ||||||||
| Power supply | AC100V~240V | |||||||
| Maximum power consumption | 250W | |||||||
| Standby power consumption | <=3W | |||||||
| Temperature | ||||||||
| Working temperature | 0°C~50°C | |||||||
| Working humidity | 20%-80% | |||||||
| Appearance | ||||||||
| Product dimension( W x H x D) mm | 1025.65x579.84x126.73 | |||||||
| Acessory | ||||||||
| Cable | Can supply different kinds of cable | |||||||
| Video Wall Controller(Built-in each screen) | ||||||||
| Model No. | US-P816A | |||||||
| Input | CVBS | 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs | ||||||
| VGA | 1*D15 port, support SVGA/XGA/WXGA | |||||||
| YPbPr/YCbCr | 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV | |||||||
| Y/C | 2*BNC inputs, support PAL/NTSC all formats | |||||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
| Operate mode | Panel key operation(needs customization) | |||||||
| Standard RS232 port( provide free control software) | ||||||||
| Infrared Remote Control Operation | ||||||||
| Engineering software | Customized | |||||||
| Working temperature | 0~70 °C | |||||||
| working humidity | 5~95 %RH | |||||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||||
| power consumption | Max 300W,according to different screen models | |||||||
| Dimension | 338×295×60(mm) | |||||||
| Weight | About 3.5KG | |||||||
Install:
Wall-mounted,floor stand, cabinet installation optional
Package:
Application:
The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public place,assembly room ,Enterprise,Goverment ect.
Stable performance for video monitor and production scheduling ensure apply to: Public security,Transportation, Electrical Power , Energy sources,coal mine, Military and so on.
Application case:
We provide servise:
1. Customized requirment is available , OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Certificate:
Office and Workshop:
