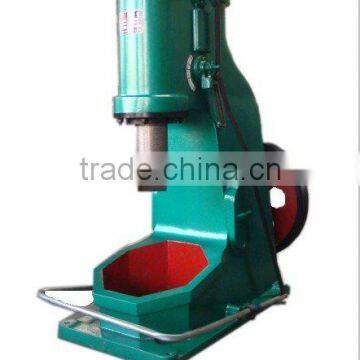

Air Hammer Wrought Iron Forging Hammer C41-55KG

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	HELI	Model Number	C41-55KG
Voltage	380V	Power(W)	5500
Dimension(LWH)	13206701620MM	Weight	1700KG
Certification	CE	Warranty	12 months
After-sales Service Provided	Overseas service center available

1.simple structure
2.Easy operation
3.Stable function
4.Motion agility
5.Easy transit,fix and maintenance

It's used to free forging,drawing,upsetting,punching,hot shearing,forged welding,bending and torsion

Main Technical Data

Item		Unit	MODEL NO.
Weight of falling parts		kg	55
Maximum blow energy		J	700
Distance from center of die to frame		mm	270
Distance between top and bottom die		mm	265
Number of blows per minute		min-1	230
Dimension of top to bottom		mm	120*50
Diameter of the working cylinder		mm	215
Diameter of the compressing cylinder		mm	220
Travel distance of malleus		mm	265
Travel distance of plunger		mm	140
Forges	Round	mm	Φ68
	Square	mm	52
Motor	Power	kw	5.5
	Rotate speed	rpm	1440
Outside Size	Length	mm	1320
	Width	mm	670
	High	mm	1620
Anvil block weight		kg	600
Hammer weight		kg	~1700
