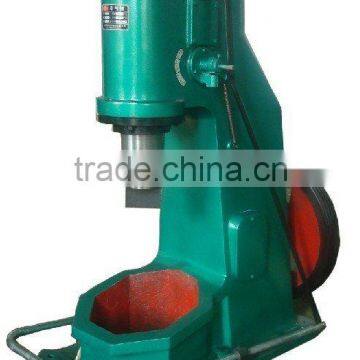

Air hammer pneumatic power forging Hammer C41-75kg for sale Supplier's Choice
Negotiable
/ Set
1 Set(Min.Order)
- 220 Set / Sets per Month
- QINGDAO
- T/T
You May Like
-
Air hammer metal forging hammer C41 series 16kg/20kg/25kg/40kg/55kg/75kg/150kg
-
Air Hammer Wrought Iron Forging Hammer C41-55KG
-
Air hammer pneumatic iron hammer C41-40KG(SEPARATE)
-
Air power hammer Metal forging hammer C41-40KG (Integrated)
-
Air hammer pneumatic forging hammer C41-25KG (SEPARATE)
-
Air Forging Hammer C41-20KG(SEPARATE) Pneumatic iron hammer
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HELI | Model Number | C41-75KG | |
| Voltage | 380V | Power(W) | 7500 | |
| Dimension(L*W*H) | 1400*760*1950MM | Weight | 2800KG | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
Air forging hammers are best used for art blacksmithing such as drawing-out, upsetting, punching, chiseling and bending
Product Description
Item | Unit | Numerical Value | |
Weight of falling parts | kg | 75 | |
Maximum blow energy | J | 1000 | |
Distance from center of die to frame | mm | 300 | |
Distance between top and bottom die | mm | 300 | |
Number of blows per minute | min-1 | 210 | |
Dimension of top to bottom | mm | 145*65 | |
Diameter of the working cylinder | mm | 235 | |
Diameter of the compressing cylinder | mm | 240 | |
Travel distance of malleus | mm | 345 | |
Travel distance of plunger | mm | 200 | |
Forges | Round | mm | Φ85 |
Square | mm | 65 | |
Motor | Power | kw | 7.5 |
Rotate speed | rpm | 1440 | |
Outside Size | Length | mm | 1400 |
Width | mm | 760 | |
High | mm | 1950 | |
Anvil block weight | kg | 850 | |
Hammer weight | kg | ~2800 | |
Packaging & Shipping
Tito plywood (fumigation) or fumigation
