Home > Products > Grinding Machine > 1808T Larger High precision centerless grinding machine for sale

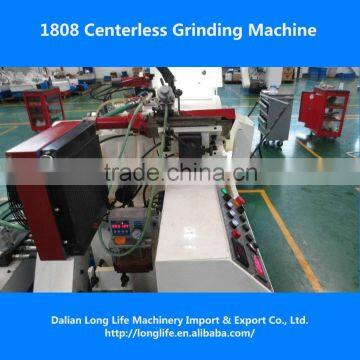

1808T Larger High precision centerless grinding machine for sale
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T L/C D/P D/A
You May Like
-
M7160x1000 CE semi auto surface grinding machine
-
M1432x1500 Universal Cylindrical Grinding Machine
-
Catalouge of M13/14 cylindrical grinding machine
-
M1332x1500 semi auto cylindrical grinding machine for sale
-
MK1350x1500 high class cnc cylindrical grinding machine fo sale
-
M1432x3000 Universal Cylindrical Grinding Machine
Product Details
| Condition | New | Type | Other, Centerless Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 1~120mm | |
| Max. Grinding Length | 250mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | LFM1808T/S centerless grinding machine | |
| Voltage | Customer's Requirement | Power(W) | 11kW | |
| Dimension(L*W*H) | 2350x1960x1560mm | Weight | 2850kgs | |
| Certification | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1808 high precision centerless grinding machine
1. Servomotor driving;
2. High precision;
3. CE Standard and CE Certificate;
Roundness: ≤0.001mm;
Straightness: ≤0.002mm
Roughness: ≤0.2Ra
Size accuracy: ≤0.002mm
Specifications | Unit | Parameter |
Grinding diameter | mm | Φ1 ~ Φ50 |
Special work rest (dia.) | mm | Φ40 ~ Φ120 |
Grinding wheel size | mm | Φ455×205×Φ228.6 |
Regulating wheel size | mm | Φ255×205×Φ111.2 |
Grinding wheel speed (speed less) | rpm | 18~1520 |
Regulating wheel speed | rpm | 0~260 |
Grinding wheel motor |
| 15HP(11kW)AC380V/50HZ |
Regulating wheel motor |
| 4HP(3kW)AC380V/50HZ |
Hydraulic pump motor |
| 1HP(0.75kW)AC380V/50HZ |
Coolant pump motor |
| 1/4HP(180W)AC380V/50HZ |
Regulating wheel feed on hand wheel | mm | 4 (Rev) 0.05 (Gra) |
Regulating micro feed on hand wheel | mm | 0.1 (Rev) 0.001 (Gra) |
Table feed on hand wheel | mm | 9 (Rev) 0.10 (Gra) |
Table micro feed on hand wheel | mm | 0.2 (Rev) 0.001 (Gra) |
Dressing hand wheel | mm | 2 (Rev) 0.01 (Gra) |
Regulating wheel tilt angle |
| +6° ~ -5° |
Regulating wheel swivel angle |
| ±6° |
Floor space (L×W×H) no more than | mm | 2350×1960×1560 |
Package dimension (L×W×H) | mm | 2400×2000×1800 |
Net weight | kgs | 2850 |
Working accuracy |
|
|
Roundness | mm | ≤0.001 |
Straightness | mm | ≤0.002 |
Roughness |
| ≤0.2Ra |
Size accuracy | mm | ≤0.002 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.
