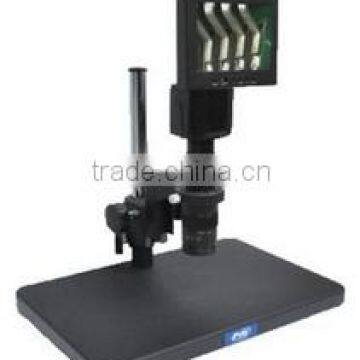

LCD-80501 Video zoom Microscope
- 500 Set / Sets per Month
- beijing
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | PDV | |
| Model Number | LCD-80501 | Theory | Video Microscope | |
| Drawtube | Other, Video zoom Microscope |
Product Description
1/2” COMS camera
5” LCD color Monitor (optional 10”)
Resolution: 640X480;1280X1024;2048X1536
Video Resolution: 640X480
Memory Card: SD card (Standard 1G), support max. 4GB
Signal Output Port: BNC 75Ω
Signal Format: PAL/NTSC
Operate mode: keyboard
Power: DV12V
Camera Lens Mount: C/CS-Mount
Zoom Range: 0.7X-4.5X
Zoom Ratio: 1: 7
Magnification Range: 16X-160X
Field of View: 2.14mm-21.4mm
Working Distance: 100mm-105mm
Optional Video Couplers: 0.5X, 1.5X and 2.0X
Optional Objective Lenses: 0.5X, 1.0X and 2.0X
Specification:
Scope holder:Φ48mm
Vertical Post Height:260mm Vertical Post Dia.:25mm
Base Dimensions:375x245x30mm.
Travel Distance:48mm.
