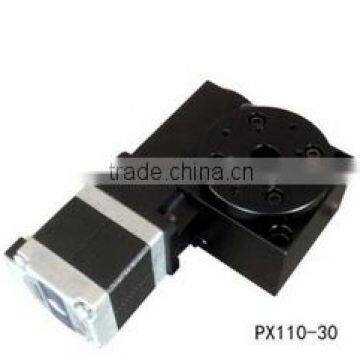

PX110-30 Miniature Motorized Rotation Stage
- 600 Set / Sets per Month
- Beijing
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | PDV | |
| Model Number | PX110-30 |
Product Description
Structure Specifications
1 Item Number: PX110-30
2 Rotation Range: 360° of Continuous Rotation
3 Diameter of Platform: Ø30mm
4 Drive Mechanism: Worm Gear
5 Worm Gear Ratio: 64 : 1
6 Stepper Motor (1.8°): 28BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Load Capacity: 5Kgs
8 Weight: 1.2kgs
Accuracy Specifications
1 Design Resolution: 0.03°, Non-MS Driver
2 Rotational Velocity (Max): 25°/sec
3 Repeatability: 0.05°=18”
4 Absolute On-Axis Accuracy: 0.01°=36”
5 Run-Out of Top Plate: 20μm
6 Backlash: 0.005°=18”
7 Eccentricity: 5μm
8 Lost Motion: 0.005°=18″
9 Parallelization: 60μm
