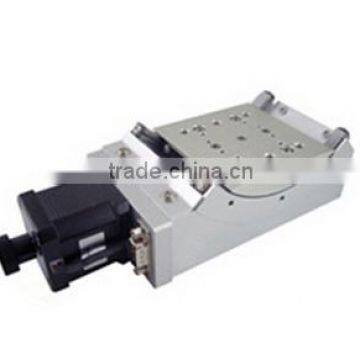

PT-GD303 Motorized Goniometer Stage

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	PDV
Model Number	PT-GD303

Structure Specifications

1 Item Number: PT-GD303

2 Rotation Range: ±45°

3 Platform: 80mm × 80mm

4 Drive Mechanism: Worm Gear

5 Travel Guide: Crossed Roller Bearing

6 Worm Gear Ratio: 352 : 1

7 Height of Rotation Stage: 50 mm±0.2 mm

8 Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

9 Material – Finish: Aluminum Alloy -Anodized

10 Load Capacity: 10Kgs

11 Weight: 1.5kgs

Accuracy Specifications

1 Design Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive)

2 Rotation Center Deflection Accuracy: 0.03 mm

3 Max Velocity: 7°/sec

4 Repeatability: ±3”

5 Absolute Accuracy: ±8”

6 Backlash: ±3”

7 Lost Motion: 3″
