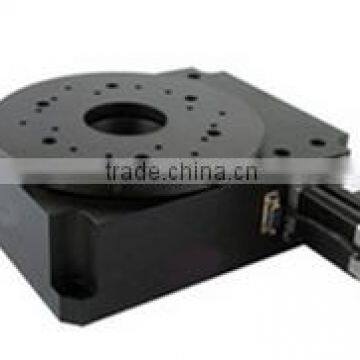

PT-GD204 High Precision Motorized Rotation Stages

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	PDV
Model Number	PT-GD204

Structure Specifications

1 Item Number: PT-GD204

2 Rotation Range: 360° of Continuous Rotation

3 Diameter of Platform: Ø200mm

4 Drive Mechanism: Worm Gear

5 Worm Gear Ratio: 180 : 1

6 Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

7 Material – Finish: Aluminum Alloy - Black-Anodized

8 Load Capacity:100Kgs

9 Weight: 12kgs

Accuracy Specifications

1 Design Resolution: 0.01°=36”, Non-MS Driver; 0.0005°=1.8”, 20MS Driver

2 Rotational Velocity (Max): 25°/sec

3 Repeatability: 0.002°=7.2”

4 Absolute On-Axis Accuracy: 0.005°=18”

5 Run-Out of Top Plate: 10μm

6 Backlash: 0.002°=7.2”

7 Eccentricity: 20μm

8 Lost Motion: 0.005°=18″

9 Parallelization:50μm
