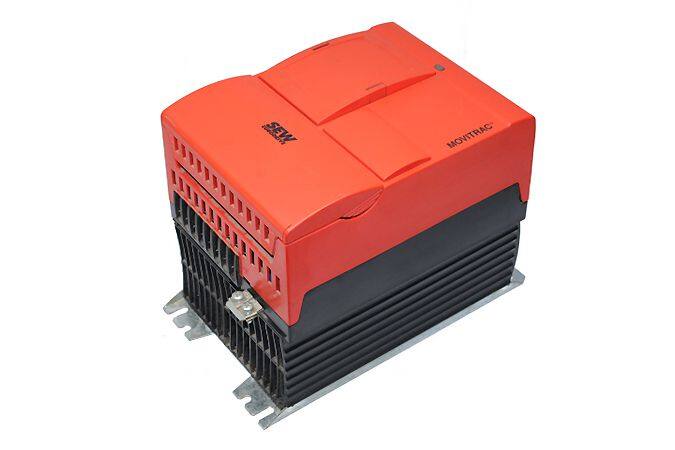

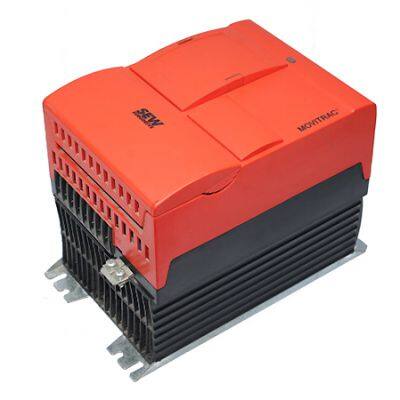

SEW 31C055-503-4-00 Servo Controller

I. Overview

The SEW 31C055-503-4-00 is a high-performance servo drive developed for medium-power transmission scenarios. As a core medium-power model in SEW's 31C product series, it is positioned as an "efficient and precise motion control core" for applications such as small and medium-sized automated production lines, intelligent warehousing and logistics equipment, medium-sized packaging machinery, and feed axes of precision machine tools.

This drive fully integrates SEW's technical expertise in medium-power transmission. It adopts an enhanced vector control algorithm, a high-reliability hardware architecture, and anti-interference optimized design. Key functions include high-precision speed regulation of medium-power servo motors, millimeter-level position control, stable high-torque output, and high-speed data interaction with mid-to-high-end upper-level control systems. It also features excellent compatibility with SEW's full range of medium-power servo motors, mainstream PLCs, and industrial human-machine interaction devices, ensuring high precision, reliability, and efficiency in motion control for medium-power transmission scenarios.

As the flagship medium-power model of the 31C series, the 31C055-503-4-00 is fully compatible with SEW DRS series medium-power servo motors (e.g., DRS160M4), HCS30 standard operation panels, and high-precision incremental/absolute encoders. It can be flexibly integrated into automated systems via multiple methods, including pulse control, analog control, and industrial bus control. Full-process operations—such as control mode switching, refined parameter calibration, fault diagnosis, and energy recovery—can be completed without complex adaptation.

Widely used in key applications like main drives for small/medium conveyor lines, stacker travel drives for intelligent warehousing, forming mechanism drives for medium-sized packaging machinery, and feed axis drives for precision machine tools, it provides core drive support for medium-torque precise output, stable positioning, and high-speed operation of equipment. It is a critical component for improving production efficiency of medium-power automated equipment, ensuring process stability, and reducing operation and maintenance costs.

The drive boasts core features including enhanced vector control, multi-dimensional interface integration, comprehensive safety protection, high energy efficiency, and convenient maintenance. It can adapt to harsh operating conditions in industrial sites—such as strong electromagnetic interference, voltage fluctuations, and medium-load impacts—fully meeting the high-performance requirements of medium-power transmission scenarios.

II. Technical Parameters

III. Functional Features

1. Enhanced Vector Control for Medium-Power High-Precision Scenarios

• With an absolute encoder: Speed control precision reaches ±0.001% and position control precision reaches ±0.005mm, meeting the needs of medium-power scenarios with strict precision requirements (e.g., feed axes of precision machine tools, stackers for intelligent warehousing).

• Sensorless vector control mode: Achieves ±0.05% speed control precision without an external encoder, suitable for medium-load scenarios with moderate precision requirements (e.g., ordinary small/medium conveyor lines, fans, and pumps).

• V/F control mode: Compatible with traditional medium-power induction motors, enabling upgrade and transformation of aging medium-power equipment.

2. Full-Dimensional Interface Integration for Efficient Medium-Power System Integration

• Control interfaces: Include 4-channel high-speed pulse input (max frequency 2MHz), 4-channel 16-bit high-precision analog input, and 12-channel photoelectrically isolated digital I/O. Support multiple control methods (pulse control for position/speed, analog control for speed/torque, digital control for start/stop/forward/reverse, and torque control). Can be directly connected to output interfaces of mid-to-high-end PLCs (e.g., Siemens S7-1500, Mitsubishi Q series) without additional adapter modules, saving installation space and integration costs.
• Communication interfaces: Standard PROFINET RT and EtherNet/IP support 100Mbps high-speed communication with a data update cycle of ≤0.2ms. Enable synchronous control of multiple drives (e.g., multi-axis linkage machine tools, multi-drive units for large conveyor lines) and support remote reading, modification, and batch configuration of servo parameters by upper-level systems, significantly improving medium-power system integration efficiency.
• Dual USB debugging interfaces: Cooperate with SEW MOVITOOLS MotionStudio professional debugging software to complete parameter configuration and fault diagnosis simultaneously, shortening the debugging cycle and adapting to the rapid commissioning needs of medium-to-large production lines.

3. Comprehensive Protection for Safe and Reliable Medium-Power Operation

• Power supply side: Equipped with overvoltage, undervoltage, phase loss, and surge protection. When input voltage is ≥600VAC or ≤300VAC, the drive immediately cuts off output and triggers redundant alarms, preventing damage to medium-power precision equipment caused by power grid abnormalities.
• Motor side: Equipped with overcurrent, overload, locked-rotor, overspeed, overtemperature, and inter-turn short-circuit protection. If motor locked-rotor lasts more than 2s, overload protection is triggered to stop the motor, while recording key parameters (current, torque) during locked-rotor for easy fault troubleshooting.
• Drive itself: Adopts forced air cooling + high-efficiency heat sink design. When core component temperature reaches ≥85℃, output power is automatically reduced; at ≥95℃, shutdown protection is activated. It also includes IGBT module fault, short-circuit, and ground fault protection.
• Load side: Supports custom protection thresholds for tension, pressure, etc., adapting to precision process requirements of medium-power applications.

4. High-Efficiency Energy-Saving Design for Significantly Reduced Operating Costs

• During motor light load, deceleration, or braking: Regenerative energy can be fed back to the DC bus (requires standard brake unit configuration) or dissipated via brake resistors, saving 25%-35% more energy than traditional medium-power drives. Particularly suitable for medium-power scenarios with frequent start/stop (e.g., machine tools, stackers).
• Load adaptive optimization: Automatically adjusts carrier frequency, PID parameters, and cooling fan speed based on motor load changes. Reduces carrier frequency and fan speed during light load to lower energy consumption and noise; increases carrier frequency during heavy load to ensure control precision.
• Standby power consumption: ≤80W. Automatically enters deep energy-saving mode when equipment is shut down or on standby, turning off power to non-essential modules to further reduce energy loss.
• Common DC bus operation for multiple units: Multiple medium-power drives can share a DC bus to realize energy sharing, reduce reactive power loss, and improve overall system energy efficiency, adapting to the layout of medium-to-large multi-axis automated production lines.

5. Modular Design for Convenient Maintenance and Efficient Medium-Power Management

• Fault module replacement: Failed modules can be replaced individually without replacing the entire drive, reducing maintenance costs by over 70%.
• HCS30 standard color operation panel: Supports Chinese display, enabling intuitive viewing of operating parameters (speed, torque, current). Basic maintenance operations (control mode switching, parameter setting, fault reset) can be completed via the panel without connecting debugging software.
• Online firmware upgrade: Batch program updates for multiple drives can be performed via USB interface or PROFINET bus to obtain new functions and performance optimizations, extending the drive service life.
• MOVITOOLS MotionStudio software: Built-in parameter configuration templates and fault diagnosis wizards dedicated to medium-power equipment, enabling rapid batch configuration and fault troubleshooting of multiple drives, improving maintenance efficiency and reducing management costs.

6. Strong Environmental Adaptability for Stable Operation in Medium-Power Scenarios

• Power input side: Equipped with a high-performance EMC filter, compliant with EN 61800-3 EMC industrial level standards. Effectively suppresses high-frequency power grid interference and surge impacts, preventing electromagnetic interference to medium-power precision equipment.
• Control signals: Adopt dual protection of differential transmission and photoelectric isolation. In strong electromagnetic interference environments (e.g., machine tool processing workshops, multi-equipment industrial sites), the signal transmission error rate is ≤0.0001%, ensuring stable control signal transmission.
• Wide voltage input range: 380-480VAC±15%, adapting to regions or industrial plants with large power grid voltage fluctuations without additional voltage regulators.
• Environmental adaptability: Operating temperature range of 0℃-55℃ (forced air cooling adapts to high-temperature industrial environments); relative humidity of 5%-95% (non-condensing); protection class IP20 (upgradeable to IP65 with custom protective enclosure). Meets the needs of medium-power scenarios with high dust or moisture (e.g., food processing, pharmaceutical packaging).
