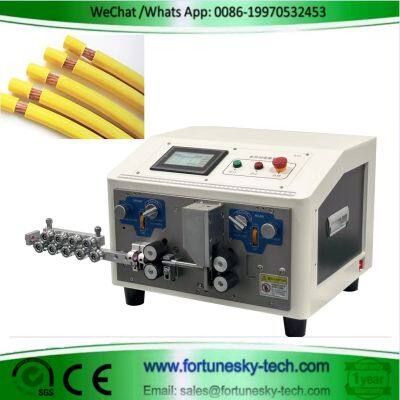

Automatic 16SQMM Wire Cutting Stripping Machine
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T PayPal Western Union
- 3 days
You May Like
-
Automatic 2AWG Wire Cutting Stripping Machine
-
Automatic 6SQMM Wire Cutting Stripping Machine
-
Automatic AWG30-12 Wire Cutting Stripping Machine
-
Automatic AWG30-AWG10 Wire Cutting Stripping Machine
-
Automatic Battery Cable Cutting Stripping Machine
-
Automatic Double Parallel Wire Cutting Stripping Splitting Machine
Product Details
| Material | Metal | Certification | CE | |
| Warranty | One Year Limited | Application | Other, Wire Cutting and Stripping | |
| Standard | ANSI | After-sales Service | Yes | |
| Customized | Customized | Condition | New | |
| Transport Package | Plywood Case | Specification | Yes | |
| Trademark | Yes | Origin | China |
Product Description
Features
1.) Self-developed single-chip motion control board
2.) Full-touch 4.3-inch LCD display
3.) Low-noise hybrid subdivision driver
4.) One-touch correction for wire length error
5.) Unique appearance with sleek, precise design
Technical Parameters:
| Parameter | Specification | Parameter | Specification |
| Model | FY-816 | Function | Wire cutting, double-end stripping, middle stripping |
| Power | AC220V 50/60HZ | Applicable Wire Core | 0.1?16mm2 (AWG30#-8#) |
| Machine Dimensions | 470mm×450mm×350mm | Cutting Length | 0.1mm?99999.9mm |
| Machine Weight | 36.5kg | Stripping Length | Head 0.1?250mm, Tail 0.1?70mm |
| Blade Material | Imported Tungsten Steel / High-Speed Steel | Middle Stripping Segments | 16 segments (Customizable) |
| Power | 880W | Additional Functions | Automatic in/out feed, timed start, jogging adjustment |
| Stripping Accuracy | Silent hybrid stepper motor 0.01mm | Capacity | 50/100/500/1000mm (1800/1700/1400/1120 pieces per hour) |
