Raythink CX20 Ultra Handheld Thermal Camera: AI-Powered Precision & Multi-Dimensional Sensing (Temp+Laser) for Facility Fault Detection
- YanTai
- T/T L/C PayPal D/P Western Union Other
- 7 days
You May Like
-
Portable CX20 Ultra Handheld Thermal Camera: AI-Powered Technology & Multi-Dimensional Sensing for HVAC Leak Detection & Equipment Maintenance
-
Wireless Raythink CX20 Series Thermal Camera: AI-Powered Imaging & Multi-Dimensional Sensing With WiFi/UVC Transmission for Electrical Maintenance
-
Compact Wireless Infrared Thermal Camera CX20 Pro With WiFi and USB Data Transmission
-
CX20 Ultra Professional Thermal Imaging Camera With Laser Rangefinder and 40mK High Sensitivity NETD
-
CX20 Ultra Professional Thermal Imaging Camera With Laser Rangefinder and 40mK High Sensitivity NETD
-
Raythink PD2T Dual-Spectrum Speed Dome Security Thermal Camera: 256×192 Thermal Detector, 5MP 20x Zoom Visible Sensor for Perimeter Protection
Product Details
| Application | Industry | Measuring Method | Automatic | |
| Infrared Resolution | 256×192 | Super Resolution | 512×384 | |
| NETD | <40mK | Lens Focal Length | 3.2mm | |
| FOV | 40°×30° | Display | 3.5-inch, 480×640 resolution | |
| Visible Light Camera | 2 megapixels | Digital Zoom | 2x, 4x | |
| Battery Life | 6h | Transport Package | Other | |
| Specification | 246X101X85mm | Trademark | Raythink | |
| Origin | Yantai |
Product Description

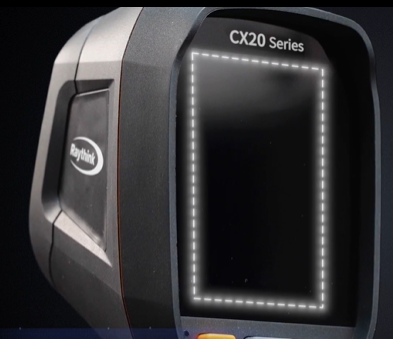

CX20 Series
Feature

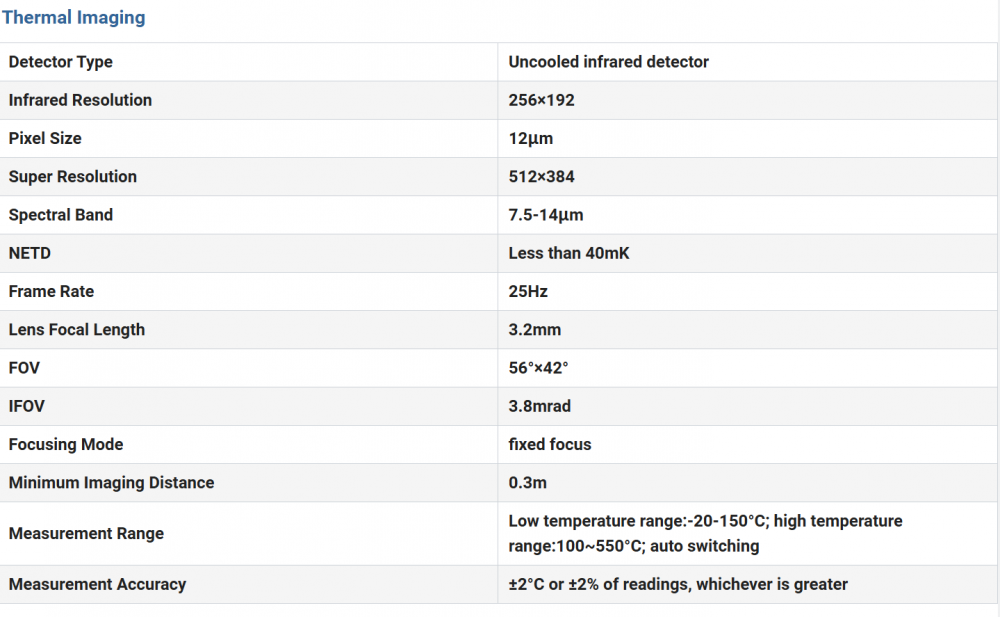

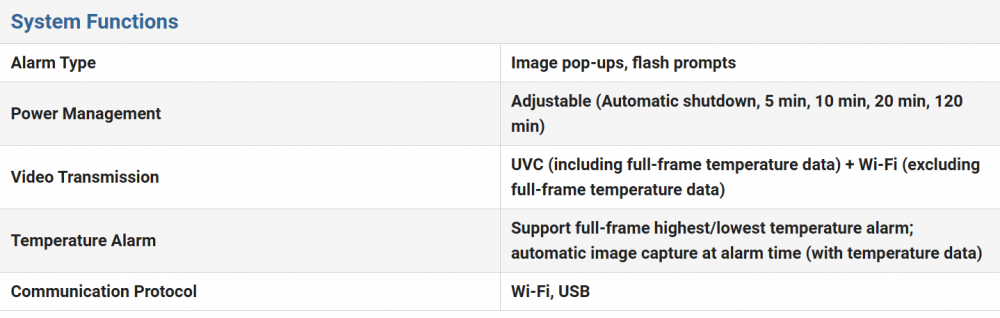

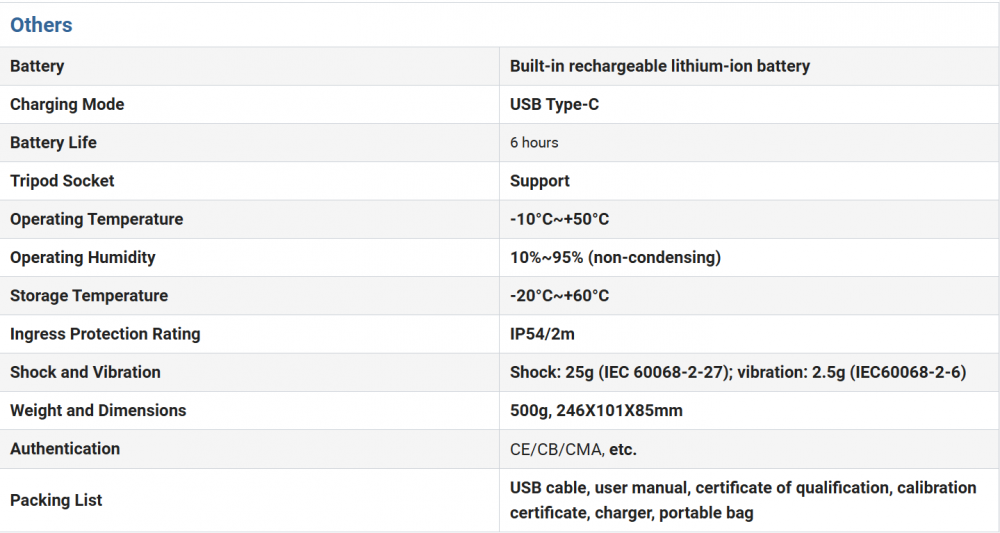

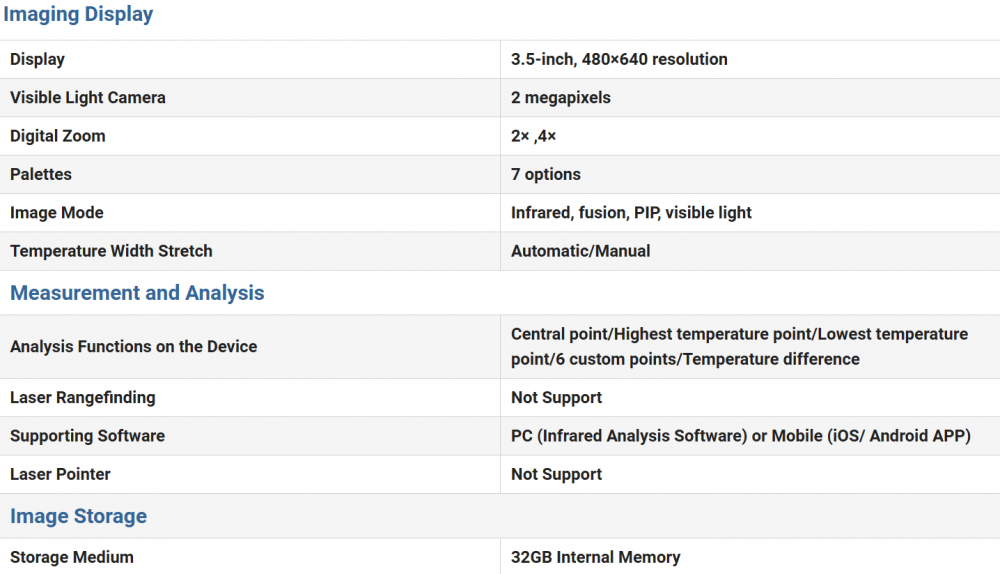

Specification
Company Profile
Raythink Technology Co., Ltd. is specialized in innovation and development, manufacturing and marketing of intelligent photoelectric sensing technology. We are deeply engaged in the fields of infrared night vision imaging, thermography, gas imaging and laser sensing, providing professional infrared and laser sensing components, devices, software and smart industry solutions to our global customers. We have also successfully achieved self-development and large-scale production of intelligent multi-dimensional sensing photoelectric products in diverse forms applicable to various fields.Being a solution provider to public sectors, industries, and commercial markets, we provide a rich portfolio of intelligent photoelectric sensing products, which are widely used in the smart industry, smart robots, gas detection imaging, fire fighting and safety, green energy, carbon neutrality, environmental protection, healthcare, etc. Bearing the mission of boosting intelligent photoelectric sensing technology progress, RayThink Technology integrates photoelectricity and smart technology to continuously create incremental value for customers and contribute to building a safe, energy-saving and environmentally friendly society.
