Home > Products > security camera > High-Performance Raythink PD2 Series Speed Dome: 12μm Uncooled IR Detector, ±2℃ Temp Accuracy & 360° PTZ for Warehouse Security

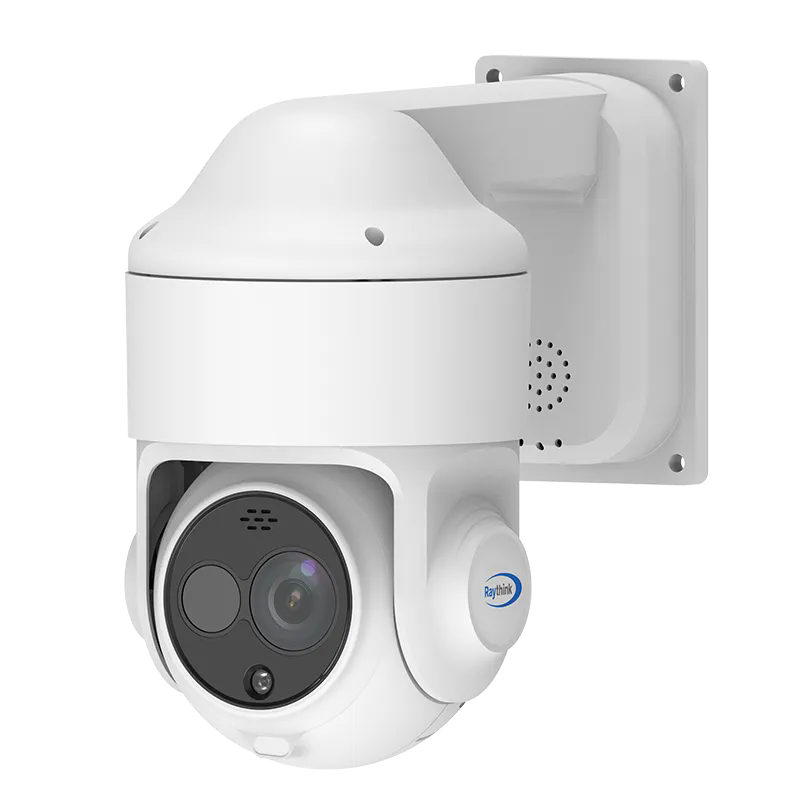

High-Performance Raythink PD2 Series Speed Dome: 12μm Uncooled IR Detector, ±2℃ Temp Accuracy & 360° PTZ for Warehouse Security
- T/T L/C PayPal Other
- 7 days
You May Like
-
All-Weather Raythink PD2T Camera: Dual Thermal/Visible Imaging, AI Human/Vehicle Detection & IP66 Protection for River Monitoring
-
Raythink TN460U Ultra-High Temperature Thermal Camera: 640×512 Resolution, 0~2000°C Range for Metallurgy
-
High-Precision Raythink TN460U Thermal Infrared Camera: 7.5~14μm Spectral Band & ±2% Accuracy for Glass Industry
-
Compact Raythink TN460U Temperature Thermal Camera: 12μm Detector, 25Hz Frame Rate & Optional Cooled Shells
-
Durable Raythink TN460U Ultra-High Temperature Network Camera: -20~60°C Operating Temp & IP-Compatible Design
-
Advanced Raythink TN460U Online Ultra-high Temperature Thermal Camera : H.264/H.265 Video, 20 Palettes & SD Card Storage for High-Temp Scenarios
Product Details
| Warranty | 1 year | Usage | Industrial | |
| After-sales Service | Support | Transport Package | Other | |
| Specification | 265×147.5×248.7mm | Trademark | Raythink | |
| Origin | Yantai |
Product Description
Feature
| | |
Specification
| Thermal Module | |
|---|---|
| Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution256×192Pixel Pitch12μmFocal Length7mm/10mm | |
| Optical Module | |
| Sensor5MP 1/2.8" Progressive Scan CMOSResolution2560×1920Focal Length5.4~108mm, 20xIR distance50m | |
| PTZ | |
| Pan360° continuous,0.1°~120°/sTilt0°~+90°,0.1°~60°/sPreset255Scan modePreset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama Scan | |
| Temperature Measurement | |
| Temperature Range-20℃~+550℃Temperature Accuracy±2℃ or ±2%Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
| Smart Function | |
| Fire DetectionSupportVCASupport Line Crossing&Intrusion detection with AI human/Vehicle recognition2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output/sound and light alarm | |
| System Interface | |
| PowerDC 12V±25%/PoE(802.3af/at)Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm2 in/1 outStorageMicro SD memory(maximum 256G)ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
| General | |
| Work Environment-40℃~+70℃;<95%RHProtectionIP66Power Consumption≤20WDimenstion(mm)265×147.5×248.7Weight≤2.5kg | |
Application Scenarios
Electric Temperature Measurement | Park Perimeter | River Monitoring | Warehouse Equipment Room |
