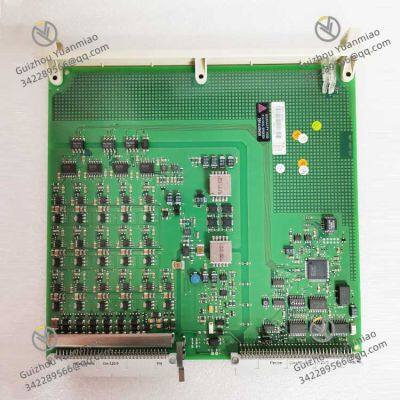

ABB DSAO130A 3BSE018294R1Analog Output Unit Module

Number of Channels: 4 independent analog output channels (each channel operates independently, with no mutual interference between channels);

Channel Isolation: Each output channel has galvanic isolation (isolation voltage ≥250V AC, 50Hz/60Hz, 1 minute), which can effectively suppress common-mode interference between channels and protect the module from voltage surges caused by on-site equipment failures;

Load Capacity: Each channel supports a maximum load resistance of 750Ω (for current output mode) and a minimum load resistance of 1kΩ (for voltage output mode), compatible with most industrial actuators (such as electro-pneumatic valves, frequency converters).

Key Explanations:

Short-Circuit Protection: Each output channel has independent electronic fusing (current limiting ≤30mA); if the channel is short-circuited, the module automatically cuts off the output to prevent damage to internal circuits, and resumes normal operation after the fault is eliminated;

Overvoltage Protection: The power input terminal supports transient overvoltage protection (up to 60V DC for 100ms), avoiding module damage caused by power grid surges;

Electromagnetic Compatibility (EMC): Complies with IEC 61000-6-2 (industrial environment EMC standards), with resistance to conducted interference (150kHz~80MHz) and radiated interference (30MHz~1GHz), ensuring stable signal output even near high-interference equipment (e.g., frequency converters, motors);

Reliability Index: Mean Time Between Failures (MTBF) ≥ 80,000 hours (based on ABB’s accelerated life testing and industrial-grade component selection), significantly reducing maintenance frequency.

Digital-to-Analog (D/A) Conversion: Receives digital control commands (e.g., "valve opening 50%") from the Advant OCS controller, converts them into continuous analog signals (e.g., 12mA current for 4~20mA range), and outputs them to actuators;

Channel Independent Control: Each of the 4 channels can be configured with independent signal ranges (e.g., Channel 1 for 4~20mA, Channel 2 for 0~10V) and control parameters (e.g., output gain, offset) via software, adapting to mixed actuator types in the same system;

Real-Time Status Monitoring & Fault Diagnosis: Monitors the module’s operating status (power, output signal integrity) and channel faults (short circuits, overloads) in real time. Fault information is transmitted back to the controller via the system bus, and displayed via LED indicators on the module front panel (e.g., red light for channel fault, green light for normal operation).

Petrochemical & Chemical Processing:
Used to control the opening of control valves in reaction kettles and pipelines. For example, converting the controller’s "temperature adjustment command" into a 4~20mA current signal to drive the valve, regulating the flow of cooling water or raw materials, and maintaining the reaction temperature within the set range.

Metallurgy & Steel:
Drives frequency converters for rolling mill motors or fan speed controllers. For instance, outputting a 0~10V voltage signal to adjust the fan speed of the blast furnace, controlling the air supply volume and ensuring stable combustion.

Power Industry:
Controls the opening of steam valves in thermal power plants. The module converts the turbine speed control command into a 4~20mA signal to adjust the valve opening, maintaining the generator’s output frequency at 50Hz (or 60Hz).

Water Treatment & Environmental Protection:
Regulates the dosing pump’s flow rate in sewage treatment plants. By outputting an analog signal to the dosing pump controller, the module adjusts the amount of coagulant or disinfectant added, ensuring that the effluent water quality meets national standards.

System Compatibility:
Exclusively compatible with ABB Advant OCS control systems, including MasterPiece 200/300 series controllers and Advant Controller 400/800. It cannot be directly integrated into non-ABB systems (e.g., Siemens S7, Rockwell ControlLogix) unless additional protocol converters are used.

Software Compatibility:
Requires configuration and debugging via ABB’s dedicated software Control Builder (version 5.0 or above). The software supports functions such as channel signal range setting, fault threshold configuration, and output signal calibration (e.g., correcting zero drift of individual channels).

Accessory Compatibility:

Environmental Conditions:
Install in a control cabinet with a temperature range of 0°C~+55°C (derate by 10% for temperatures above 40°C) and relative humidity of 5%~95% (no condensation). Avoid installation near heat sources (e.g., power supplies) or equipment with strong electromagnetic interference (e.g., inverters).

Wiring Specifications:

Rack Installation:
Insert the module into the Advant OCS standard I/O rack along the guide rails, ensuring the backplane connector is fully engaged. Secure the module with front-panel screws to prevent vibration-induced disconnection during operation.

Regular Inspection:
Check the module’s LED indicators monthly: green lights indicate normal operation, while red lights or flashing lights indicate faults (refer to the user manual for fault code interpretation, e.g., continuous red light for power failure, flashing red light for channel short circuit).

Signal Calibration:
Calibrate the output signal annually using a precision multimeter (e.g., Fluke 8846A):

Fault Handling:
If a channel fault occurs, first check the wiring for short circuits or loose connections. If the fault persists, replace the module (supports hot swapping under Advant OCS system specifications, but ensure the system is in "maintenance mode" to avoid affecting other channels).
