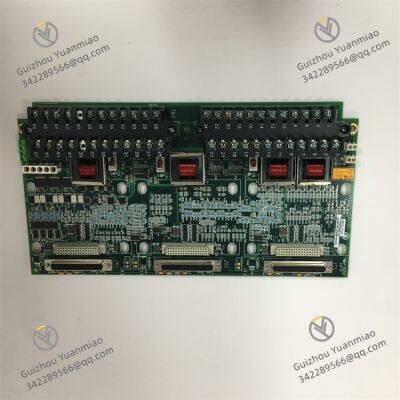

GE IS200TSVCH1ADC S1CX01H Servo I/O Terminal Board

I. Overview

This module adopts a standard industrial-grade printed circuit board design (with dimensions approximately 254mm×178mm×25mm), which is compatible with the dedicated cabinet slots of the GE Mark series. It realizes high-speed data interaction (with a transmission rate of 40MB/s) with the Mark VI/VI E main controller via the backplane bus. The surface of the module is coated with an electromagnetic interference (EMI) resistant layer, and key components (such as D/A converters and LVDT signal amplifiers) are equipped with metal shielding covers. The pin soldering process complies with the IPC-A-610 Class 3 industrial standard, enabling the module to withstand high-frequency electromagnetic interference in industrial sites (e.g., interference from frequency converters and high-voltage motors) and operate within a wide temperature range (-20℃~65℃). It meets the strict requirements for real-time performance and reliability in turbine control, and is particularly suitable for high-power turbine scenarios that demand high servo control precision.

II. Core Functional Features

1. High-Precision Drive Output for Dual Servo Valves

2. Full-Process Processing of LVDT Valve Position Signals

• Stable Excitation Output: It has a built-in LVDT excitation signal generator that can output a 10kHz sine wave (with an amplitude of 5Vrms), providing stable excitation for LVDT sensors and avoiding position measurement errors caused by fluctuations in the excitation signal.

• High-Precision Signal Conditioning: It adopts a differential amplification and 100Hz low-pass filter circuit to suppress noise in the position signal fed back by the LVDT (with a signal-to-noise ratio ≥80dB), effectively filtering out electromagnetic interference in industrial sites.

• Fast A/D Conversion: It converts the analog position signal into a digital signal through a 16-bit A/D converter, with a sampling period ≤1ms and a position measurement precision of ±0.05% FS. For example, in the fuel valve control of a gas turbine, it can collect the valve opening (0-100%) in real time, ensuring that the deviation between the feedback value and the actual opening is ≤0.05% and providing accurate data support for closed-loop regulation.

3. Dual Redundant Power Supply and Multi-Level Safety ProtectionRedundant Power Supply Design

Safety Trip Protection

4. Full-Link Fault Diagnosis and Status Feedback

• LVDT Signal Faults: Detecting open/short circuits of sensor cables and loss of excitation signals;

• Servo Drive Faults: Monitoring abnormalities of D/A converters and short circuits of drive circuits;

• Power Supply and Communication Faults: Identifying power supply voltage fluctuations and backplane bus communication interruptions.

III. Technical Parameters

1. Electrical Parameters

2. Environmental and Reliability Parameters

• Operating Temperature: -20℃~65℃, suitable for the high-temperature environment of power plant turbine rooms (the room temperature can reach 55℃ in summer) and the low-temperature environment of outdoor control cabinets in northern winters.

• Storage Temperature: -40℃~85℃, no risk of component aging or pin corrosion during long-term storage.

• Relative Humidity: 5%~95% (non-condensing). The board surface is coated with a 0.1mm-thick moisture-proof layer, enabling stable operation in high-humidity coastal environments (such as turbine control cabinets on offshore platforms).

• Electromagnetic Compatibility: Complies with the IEC 61000-6-2 industrial anti-interference standard, with electrostatic discharge (ESD) protection of ±2kV (contact discharge)/±4kV (air discharge) and electrical fast transient (EFT) protection of ±1kV (power port)/±0.5kV (signal port).

• Mean Time Between Failures (MTBF): ≥150,000 hours. Key components (such as D/A converters and LVDT amplifiers) use industrial-grade long-life devices (with a service life ≥10 years).

IV. Working Principle

1. Command Reception Stage: Based on the turbine operating conditions (such as grid load demand and speed feedback value), the GE Mark VI/VI E main controller calculates the target opening of the steam/fuel valve (e.g., "steam valve opening 60%") and sends the digital control command to the IS200TSVCH1ADC via the backplane bus.

2. Servo Drive Stage: The built-in 16-bit D/A converter of the module converts the digital command into an analog drive signal (e.g., a 14.4mA current corresponding to 60% opening). This signal is sent to the electro-hydraulic servo valve through the output terminal, driving the spool displacement to adjust the steam/fuel flow rate and change the turbine input power.

3.


4. Position Feedback Stage: The LVDT sensor detects the actual opening of the valve in real time and transmits the analog position signal to the LVDT processing circuit of the module. After the module filters and amplifies the signal, it converts the analog position signal into a digital signal through the 16-bit A/D converter and uploads it to the main controller.

5. Closed-Loop Regulation Stage: The main controller compares the deviation between the "target opening" and the "actual opening". If the deviation is >0.5% (e.g., target 60%, actual 59.2%), it issues a correction command to the module. The module adjusts the drive signal (e.g., increases the current to 14.6mA) until the valve opening reaches the target value, forming a closed-loop control.

6.


7. Fault Protection Stage: If the module detects a loss of LVDT signal (e.g., cable breakage) or receives an external trip signal (e.g., turbine overspeed), it immediately cuts off the servo drive output, resets the valve drive signal to zero (valve shutdown), and uploads the fault code to the main controller. The main controller then triggers the emergency shutdown procedure in linkage to ensure equipment safety.
