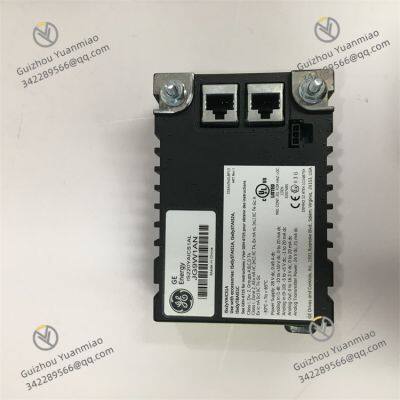

GE IS220YAICS1A L Safety Analog I/O Pack

The module is equipped with multiple analog input and output channels. For analog inputs, it typically supports a range of connection types, enabling it to interface with various sensors. For example, it can be configured to accept signals from temperature sensors (such as thermocouples and RTDs), pressure transmitters, and flow meters. The number of input channels is carefully designed to handle the needs of sensor - rich environments, reducing the need for excessive additional hardware.

On the output side, the analog output channels are designed to provide precise control signals to actuators, such as valves and variable - speed drives. These channels can output signals in standard ranges like 4 - 20mA or 0 - 10V, which are widely used in industrial control applications.

Analog Input: It has a high degree of compatibility with different analog signal types. It can handle direct - current (DC) voltage signals, such as 0 - 5V, 1 - 5V, and 0 - 10V, which are common in many industrial sensors. Additionally, it can accurately process DC current signals, with the 4 - 20mA signal being a prevalent choice in industrial settings due to its robustness against interference and long - distance transmission capabilities. The module can also interface with thermocouples and RTDs, allowing for accurate temperature measurement in industrial processes.

Analog Output: The analog output of the IS220YAICS1A L is designed to match the input requirements of typical industrial actuators. It can output signals in the 4 - 20mA range, which is ideal for controlling devices like control valves, where a precise and stable current signal is needed to regulate the flow of fluids. The output voltage signals, such as 0 - 10V, can be used to control variable - speed drives, providing smooth and accurate speed control.

The module offers a high - speed sampling rate, with the ability to sample analog inputs at a rate that can meet the demands of fast - changing industrial processes. For example, in a rapidly reacting chemical process where temperature and pressure changes occur in a short time frame, the module's high sampling rate ensures that it can capture these changes accurately. The sampling rate is typically adjustable, allowing users to optimize it according to the specific requirements of their applications.

In terms of conversion accuracy, the IS220YAICS1A L is designed to provide highly precise analog - to - digital (A/D) and digital - to - analog (D/A) conversions. The A/D conversion accuracy for analog inputs is often within a very tight tolerance, such as ±0.1% of the full - scale range. This high accuracy ensures that the control system receives an exact representation of the field sensor signals, enabling precise control decisions. The D/A conversion for analog outputs also maintains a high level of accuracy, ensuring that the control signals sent to actuators are accurate and reliable.

The IS220YAICS1A L incorporates advanced isolation technologies to safeguard against electrical interference. It features channel - to - channel isolation, which means that each input and output channel is electrically isolated from the others. This isolation helps to prevent cross - talk between channels, ensuring that signals remain pure and accurate. The isolation voltage between channels is typically rated at a high value, such as ≥250Vrms, which can effectively block common - mode interference and ground loops.

In addition to channel - to - channel isolation, there is isolation between the input/output circuitry and the module's backplane. This isolation, with a voltage rating often ≥500Vrms, protects the module from electrical surges and noise that may be present in the industrial environment, especially in facilities with high - power electrical equipment, such as factories with large motors and transformers.

To protect against potential damage from abnormal electrical conditions, the module is equipped with comprehensive overvoltage and overcurrent protection mechanisms. Each analog input channel has built - in overvoltage protection, which can withstand voltages up to a certain limit, typically ±30V DC. This protection is crucial in case of sensor wiring errors or voltage spikes in the field.

For overcurrent protection, both analog input and output channels are designed to handle abnormal current situations. The analog output channels, for example, are often equipped with current - limiting resistors or circuits that can prevent excessive current from flowing through the module, protecting it from damage due to short - circuits or overloading of connected actuators.

The module is designed to operate on a stable power supply, typically a 24V DC power source. It supports redundant power supply configurations, which means that in case of a primary power source failure, a secondary power source can take over seamlessly. The power supply range is usually designed to be relatively wide, with an operating voltage range of 18 - 32V DC, allowing for some tolerance in the power supply quality.

The module also has power - monitoring capabilities, which can detect any fluctuations or failures in the power supply. In the event of a power issue, the module can send out an alarm signal to the control system, enabling quick response and maintenance to avoid disruptions in the industrial process.

The IS220YAICS1A L is engineered to operate in a wide range of environmental conditions. It can withstand extreme temperatures, with an operating temperature range typically spanning from - 40°C to 70°C. This makes it suitable for use in various industrial settings, from cold storage facilities to hot industrial furnaces.

In terms of humidity, the module can operate in relative humidity levels ranging from 5% to 95% (non - condensing). This high humidity tolerance ensures that it can function reliably in environments where moisture is present, such as coastal industrial plants or facilities with high - humidity processing areas.

Industrial environments often involve mechanical vibrations and shocks, especially in facilities with heavy machinery. The IS220YAICS1A L is designed to be highly resistant to these mechanical stresses. It is constructed using robust materials and advanced manufacturing techniques that can withstand vibrations within a specified frequency range and shocks of a certain magnitude.

The module's internal components are carefully mounted and secured to prevent damage from vibrations and shocks. This ensures that the module can maintain its performance and reliability even in the harshest mechanical environments, reducing the risk of component failure and system downtime.

The IS220YAICS1A L is designed with high - quality components and undergoes rigorous testing to ensure long - term reliability. The Mean Time Between Failures (MTBF) of the module is typically very high, often exceeding 100,000 hours. This long MTBF value indicates that the module is highly reliable and can operate continuously for extended periods without experiencing failures.

The use of industrial - grade components, such as high - quality integrated circuits and connectors, contributes to the module's high reliability. Additionally, GE's strict quality control processes during manufacturing and testing further enhance the module's ability to perform consistently in demanding industrial applications.

The IS220YAICS1A L is equipped with a high - speed communication interface that enables seamless integration with the control system. It typically uses a serial communication protocol, such as Modbus or Profibus, which are widely used in industrial automation. These protocols allow for fast and reliable data transfer between the module and the control system, ensuring that real - time data from field sensors can be quickly transmitted to the control unit and control commands can be sent back to the actuators.

The communication interface also supports remote configuration and monitoring. This means that operators can access the module's settings and status information from a central control station, without the need to physically access the module. This feature is especially useful in large - scale industrial plants where the module may be located in hard - to - reach areas.

The module is designed to be fully compatible with GE's Mark VIE control system, as well as other popular industrial control systems. It can be easily integrated into existing industrial automation setups, either as an expansion module or as a replacement for older - generation I/O modules.

The IS220YAICS1A L's compatibility extends to various software platforms used in industrial control. It can work seamlessly with control system software, such as GE's Proficy software suite, which provides advanced features for process control, monitoring, and data analysis. This compatibility ensures that the module can be used in a wide range of industrial applications, regardless of the specific control system architecture.

The module is equipped with advanced diagnostic and self - monitoring capabilities. It can continuously monitor its own internal components, such as the A/D and D/A converters, communication interfaces, and power supply, for any signs of malfunction. In the event of a fault, the module can quickly detect the problem and send out a detailed diagnostic message to the control system.

The diagnostic messages typically include information about the location and nature of the fault, such as a specific channel number in case of an input or output channel failure. This allows maintenance personnel to quickly identify and resolve the issue, minimizing downtime and reducing maintenance costs.

The IS220YAICS1A L is designed for easy installation in industrial control cabinets. It typically uses a standard 3U rack - mount form factor, which allows for convenient integration with other modules in a rack - based control system. The module can be easily inserted into the rack using a slide - in mechanism and secured with screws or locking clips.

When mounting the module, it is important to ensure that there is sufficient space around it for ventilation. Adequate ventilation helps to dissipate heat generated by the module during operation, ensuring its reliable performance. The recommended clearance around the module is usually specified in the installation manual and should be strictly adhered to.

Wiring the IS220YAICS1A L requires careful attention to detail. The module has clearly labeled terminals for input and output connections. For analog input wiring, shielded cables are recommended to minimize interference. The shield of the cable should be properly grounded, usually at one end, to prevent ground loops.

When connecting sensors to the analog input terminals, it is important to ensure that the correct signal type and range are selected. For example, if connecting a 4 - 20mA pressure transmitter, the wiring should be connected to the appropriate 4 - 20mA input terminals. Similarly, for analog output wiring, the cables should be connected to the correct terminals based on the type of actuator being controlled.

Digital input and output connections also follow a similar process. Dry - contact or wet - contact digital signals can be connected to the appropriate digital input terminals, and digital output signals can be used to control relays or other digital devices.

After physical installation and wiring, the module needs to be configured to match the requirements of the industrial process. Configuration can be done using software tools provided by GE. These tools allow users to set parameters such as input and output signal ranges, sampling rates, and calibration values.

For example, if the module is being used to measure temperature using a thermocouple, the software can be used to select the appropriate thermocouple type (e.g., J - type, K - type) and set the temperature range. Configuration settings can be saved and uploaded to the module, and the module can be tested to ensure that it is functioning correctly.

Routine checks of the IS220YAICS1A L are essential to ensure its continued reliable operation. These checks include visual inspections of the module for any signs of physical damage, such as cracks or burns. The wiring connections should also be inspected regularly to ensure that they are secure and free from corrosion.

The module's status indicators, which are usually located on the front panel, can provide valuable information about its operation. For example, a green power - on LED indicates that the module is receiving power, and a blinking communication LED indicates that data is being transmitted. Any abnormal behavior of these indicators should be investigated immediately.

Calibration of the IS220YAICS1A L is an important maintenance task, especially for analog inputs and outputs. Calibration ensures that the module accurately measures and outputs signals. Calibration can be done using standard calibration equipment, such as precision signal generators for analog inputs and precision multimeters for analog outputs.

The calibration process typically involves applying known input signals to the module and comparing the measured outputs with the expected values. If there are any deviations, calibration adjustments can be made using the software tools. Regular calibration, usually on an annual basis, helps to maintain the module's accuracy and reliability.

In the event of a problem with the IS220YAICS1A L, troubleshooting should be carried out systematically. The module's diagnostic messages can provide a starting point for troubleshooting. If the module reports a specific channel failure, for example, the first step is to check the wiring connections for that channel.

If the problem persists, the module can be removed from the rack and tested using specialized test equipment. In some cases, a faulty component within the module may need to be replaced. GE usually provides detailed troubleshooting guides and support to help users resolve issues quickly and efficiently.
