2000H Ctp Plate Making Machine for Large Format CTP Flexo Printing Plate Imager
≥1 Units
- Tianjin
- T/T L/C
- 45 days
You May Like
-
MJF1800-80-5 layer Corrugated Production line for carton box factory
-
3,5,7 layer carton box making corrugated cardboard line for Corrugating Machinery Manufacturer
-
3 Layers Corrugated Cardboard Production Line for 5 Ply Corrugated Box Making Machine
-
Complete 3 5 7 Ply Flute Corrugated Cardboard Carton Box Machine Production Line
-
MJF2500-250-5 layer Corrugated Cardboard equipment 3ply/5ply/7ply for carton factory making machines
-
3ply/5 ply /7 ply Fully Automatic corrugated box making machine for corrugated plant
Product Details
| Certification | ISO 9001:2000, CE | Warranty | 1 year | |
| After-sales Service | life time | Automation | Automatic | |
| Suitable for | Recycled Material, Paper | Condition | New | |
| Paper Thickness | Normal Specification Paper | Transport Package | sea | |
| Specification | set | Trademark | Royal Packing | |
| Origin | China |
Product Description

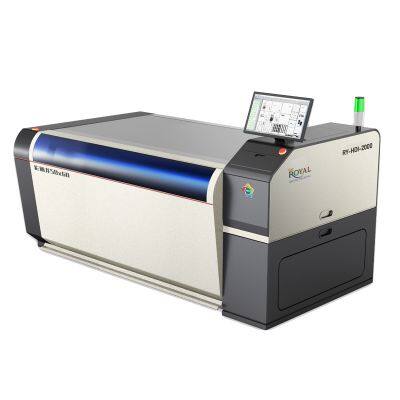

RY-HDI-2000H DIGITAL FLEXP PLATE MAKING MACHINE
I. Features of the Machine:
RY-HDI integrates the essence of CRON offset CTP technology, is positioned in high-precision flexographic imaging equipment, and provides customers with high-precision, high stability, high compatibility, and world-class equipment.
II. Specifications
RY-HDI-2000H | |
imaging quality | ? LPI：max. 250LPI ? Dots restore：1%-99% ? resolution configuration: 2400/4800/9600 DPI 2000/4000/8000 DPI 2540/5080 DPI |
Control engine | ? Laboo on Inter PC ? Control engine ? The acceptable file format is 1-bit TIFF |
Plate type | ? Digital flexo, Polyester letterpress, Ablative film ? 0.14mm-6.35mm ? Max. size 1270mm ×2032mm ? Min. size 200 mm ×350mm |
Plate making speed | 4.0m2/h |
Dimensions | ? (L x W x H) 2820 × 1400 × 1125 mm ? weight 2800 kg / 6172 lb
|
Installation requirements | ? Single-phase 220V ± 5% 50/60 Hz ? 18~28℃; RH: 40%~60% |
2、 workflow
The process software recommended by US is Founder EagleRIP
The prepress software of flexographic printing is specially developed for the printing and process characteristics of flexographic plate making. It is different from the process software of offset printing in terms of the shape, angle, accuracy, etc. of dots. We recommend customers to use the special prepress software for flexographic printing to obtain better flexographic printing quality and avoid printing problems such as screen collision.
