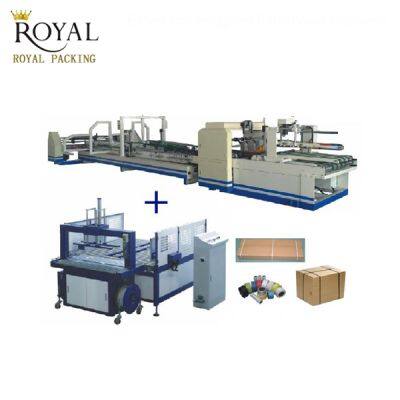

MJZXJ-1 Automatic Folder Gluer & Strapping Machine

Introduction of the machine:

MJZXJ-1 model Automatic Folder gluer machine is composed of feeding part, glue and folding part, stacker part, speed controlled by PLC, paper width is adjusted by Touch PC, machine operation is easy and accurate, machine with automatic paper feeding function, automatic glue and fold function, automatic counting, automatic stacking and double conversion operation, the normal speed is 160pcs/min, Max. speed can be 220 pcs/min, this machine is your best choose which is energy-efficient and environmental protection.

Function and characteristic:

1. Automatic carton folding and at same time to finish the tape paste which is save time and labor force

2. Can be used for different size cartons and size adjust is simple and fast.

3. Machine run is stable and reliable, packing result is strong and nice.

4. Machine operation is simple and easy for maintenance.

5. Automatic collimator angle, 180 degree correction, effective corrective the carton appear fork and tail phenomenon.

Product structure:

1. Control Panel:

1. Motor adopt European brand, with function of stability, speed adjustment speedy and without noise pollution

2. Seamless joint ring conveyor belt of folding part adopt imported special material which is high friction and high wear-resisting, can finish automatic folding accurately

3. Gluing part adopt high quality stainless steel gluing wheels, glue coated evenly、and can efficient to save glue.

4. Folding part equipped with single channel creasing correction and six coining device which can precision and efficient to correct paperboard’s pressing line deviation and make carton finish folding accurately.

2. Feeding part

3. Folding and gluing part

4. Correction stacking output part:

1. Stacking part has functions of auto-counting, stack neatly and stacking output, customer can set the output number of cartons by himself.

2. Automatic correction, stepless speed variator correction, automatic correct non-standard cartons.

5. Parts introduction:

1) Machine is 380V/AC, power is 11.5kw, energy conservation and high efficiency.

2) PLC computer components、frequency components and electric appliance all adopt high quality imported components.

3) Belt adopts Italy ring and seamless belt.

4) Bearing adopt famous brand “TR bearing”

5) Spiral screw、lead screw and nut all adopt 45# stainless steel with quench treatment.

6) Screw nut adopt high quality copper (ZQSn10-1), wear-resisting and durable, long life and drive precision is high.

7) Copper bush(ZQSn6-6-3) with oil lubrication, wear-resisting and durable

8) Machine is controlled by wireless remote device, can adjust paper size speedy and conveniently

6. Machine parameters: (Total 8tons)

Note: If you need any other size, kindly feel free to let us know. We can make the machine based on your sizes.

Automatic strapping system for corrugated carton
