Good Quality Automatic Two Pieces Carton Folder Gluer Machine

FOB Price

USD $23800

≥1 Unit

Supply Ability 0 Unit / Units per Month
Port Tianjin
Payment TermsT/T L/C
Delivery Detail45 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO 9001:2000, CE	Warranty	1 year
After-sales Service	life time	Automation	Automatic
Suitable for	Recycled Material, Paper	Condition	New
Paper Thickness	Normal Specification Paper	Transport Package	sea
Specification	set	Trademark	Royal Packing
Origin	China

Product Description

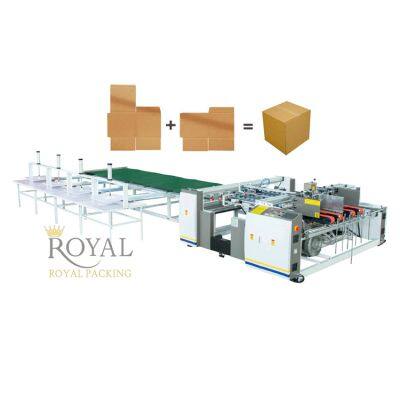

RYH-2400/2900A Semi-Automatic TWIN-BOX Folder Gluer Machine

Main Features:

RYH-2400A high speed folder gluer is used for box making by two pieces (AA pieces or AB pieces) or one piece of paper. It replaced the manual pasting, reducing the labor intensity. Comparing with the traditional semiautomatic gluer, it saves labor and increases the quality of products.

The machine uses servo driving, PLC central control, simulation to digit program system, which ensure high accurate running.

It is equipped with independent paper feeding system and strong suction feeding system, which ensures smooth feeding for both double sheets and single sheet. When doing double sheets, the gluing (hot melt glue) can be done dynamically with four side registration, thus guarantee high accuracy. After double sheets sticking, they need to be formed manually at the folding unit.At the same time, the bad creasing line and corrugated line can be corrected manually as well.

Two operators are enough for operating the machine.

Specification:

Model	RYH-2400A		RYH-2900A
Paper size(Single sheet)	Max.1200×1200	Min.500×300	Max.1450×1200	Min.500×300
Suitable paper	A-E corrugated board and 5ply cardboard not more than 6mm		A-E corrugated board and 5ply cardboard not more than 6mm
Speed	0-3800 sheets/h		0-3800 sheets/h
Machine dimension	4060×3200×1310mm		9660×5730×660
Total power	9 kw		11 kw

Electronic List:

Name	Origin
Button	Schneider, France
Contactor	Schneider, France
Servo motor	Delta, Taiwan China
Main frequency converter	INVT, China
PLC	Delta, Taiwan China
Touch screen	Delta, Taiwan China
Photoelectricity	Omron, Japan /C-ling,China
Intermediate relay	Omron, Japan / IDEC , Japan
Imported bearing	FKG, UK
Domestic bearing	LNG,China/ DSB,China
Main motor
Reducer
Micromotor
Fan belt	Rapplon, Swiss
Paper press belt	Forbo Siegling, Germany
Conveyor belt	Rapplon, Swiss
Ball screw	TBI, Taiwan China
Cylinder	XinWYang, Taiwan China
