High Speed Automatic Flute Laminator for Carton Box Laminating Machines

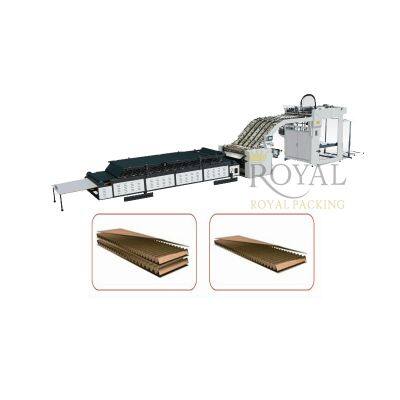

MJBZJ-4 High Speed Automatic Flute Laminator

I. Features of the Machine:

1. The feeding unit is equipped with a pre-piling device to increase the production efficiency. It can be also equipped with a plate for paper pile directly pushing.

2. High strength feeder uses 4 lifting suckers and 5 forwarding suckers to ensure smooth running with no missing of sheet even at high speed.

3. The positioning device uses several groups of sensor to sense the relative position of the running corrugated board so that the left and right servo motor used for the top paper can drive independently to align top paper with corrugated paper accurately, speedily and smoothly.

4. The electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.

5. Gluing unit uses high precise coating roller, together with specially designed metering roller enhances the evenness of gluing.The unique gluing roller with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.

II. Specifications
