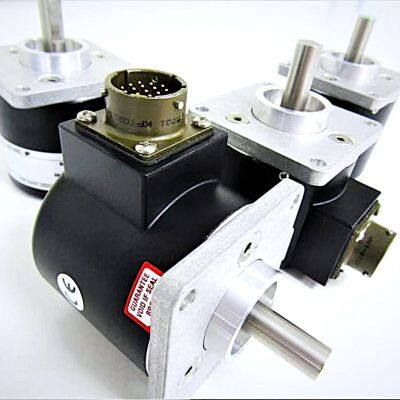

ACCU-CODER MODEL 725 incremental encoder

Features

standard size 25 Package (2.5" x 2.5")

up to 30,000 CPR

standard and Industrial Housings

 Servo and Flange Mounting

 IP67 sealing available

The Model 725 Accu-Coder? optical shaft encoder is specifically designed for the  challenges of an industrial environment. But don't let its tough, industrial package fool  you – this Size 25 encoder still has the performance to reach resolutions up to 30,000  cycles per revolution. The Model 725 offers both flange and servo mounting options,  and is available in two distinctive housing styles: Standard Housing (N) and Industrial  Housing (I). The rugged Standard Housing isolates the internal electronics from the shock  and stress of the outer environment, while the extra heavy-duty Industrial Housing  features a fully isolated internal encoder unit. Isolating the unit prolongs bearing life by  using an internal flexible mount to protect the encoder from severe axial and radial shaft  loading. The Industrial Housing is the recommended solution for applications subject  to continuous side loads, such as those that drive the encoder with a measuring wheel,  pulley, or chain and sprocket.

Common Applications

Motion Control Feedback, Conveyors, Elevator Controls, Machine Control, Food Processing, Process Control, Robotics, Material Handling, Textile Machines
