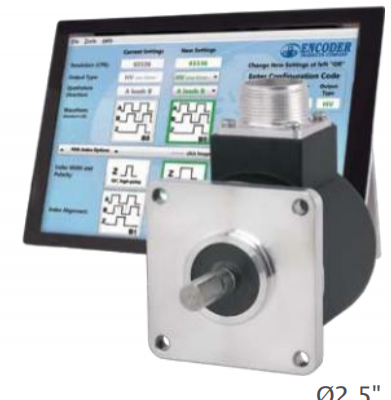

ACCU-CODER MODEL 25SP Programmable incremental encoder

Features

Industry Standard Size 25 Package (2.5" x 2.5" / 63.5 mm)

Fully Programmable with Optional USB Module or Factory Configured

Optical Technology for High Accuracy

Resolutions from 1 to 65,536 CPR (262,144 quadrature counts)

Servo and Flange Mounting  IP67 Sealing Available

The Model 25SP Programmable Size 25 Accu-CoderPro? shaft encoder is specifically  designed for the challenges of an industrial environment. But don't let the tough  exterior fool you – contained within the rugged, industrial housing is an advanced  set of electronics that allow the encoder to be programmed to your exact application  needs. Using EPC's optional programming module, users may select the output type, 32  different waveforms, and any resolution from 1 to 65,536 CPR – that's 262,144 counts  using 4x quadrature counting. These programming features allow a single encoder  to be configured for multiple applications, enabling one encoder to replace many  different part numbers – and that provides cost savings on inventory and down-time  replacement. The 25SP can also be configured and shipped with specs pre-programmed,  with no on-site programming needed. The Model 25SP Accu-CoderPro? comes standard  with dual bearings rated 80lbs axial or radial, and may be specified with up to IP67  sealing.

Common applications

Motion Control Feedback, Conveyors, Elevator Controls, Machine Control, Food Processing, Process Control, Robotics, Material Handling, Textile Machines
