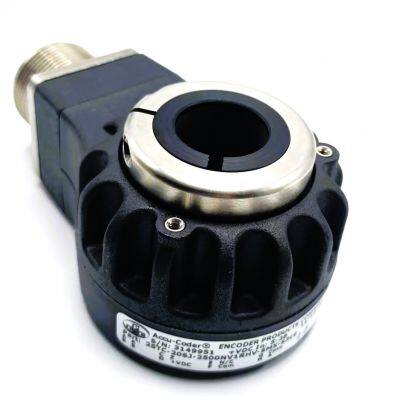

ACCU-CODER MODEL 25T incremental Rotary Encoder

Features

2.5" Opto-ASIC Encoder with a Low Profile (2.0”)

Standard Bore Sizes Ranging from 0.625” to 1.125”

Metric Bore Sizes Ranging from 6 mm to 28 mm

Single Replacement Solution for 2.0" to 3.5" Encoders

Resolutions to 10,000 CPR; Frequencies to 1 MHz

Versatile Flexible Mounting Options

 RoHS Compliant

Representing the next generation of high performance encoders, the Model 25T Accu-Coder?  features the largest thru-bore available in a 2.5” encoder, able to mount directly on shafts as large  as 1.125" (28 mm). With resolutions up to 10,000 CPR and frequencies up to 1MHz, this industrial  strength encoder is perfect for fast revving motors. The 25T features the next generation of EPC's  proprietary Opto-ASIC sensor, which provides superior accuracy and precision counts. The injection  molded housing, made from EPC's custom blend of nylon composites, is grooved with "cooling  fins" and can tolerate the extreme heat of the motion-control industry. With sealing available up to  IP66 and many new rugged flexible mounting options, the Model 25T can perform in demanding  industrial environments.

 Common applications

Motor-Mounted Feedback and Vector Control, Specialty Machines, Robotics,  Web Process Control, Paper and Printing, High Power Motors
