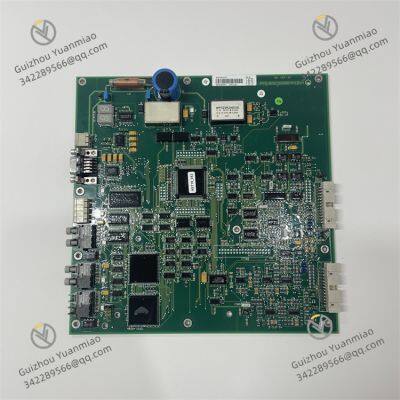

ABB DAPC100 3ASC25H203 Control Motherboard

Power Supply Specifications: The power module compatible with this control board is the DAPC100 3ASC25H203 power module, which has an output current of 5A and a voltage of 24V, capable of stably supplying power to the control board and related equipment. It also supports hot-swap functionality, allowing module replacement without turning off the system power, which greatly improves the convenience and efficiency of system maintenance and reduces downtime caused by equipment maintenance.

Communication Interfaces: It is equipped with rich and practical communication interfaces. Among them, there are two 10/100 Ethernet interfaces (in the form of RJ45 interfaces) that support the 10-base-t / 100-base-tx protocol and feature automatic full-duplex functionality, enabling high-speed data transmission to meet the requirements of industrial automation systems for real-time and large-volume data transmission. Through these Ethernet interfaces, the control board can be easily connected to a network switch, and then perform data interaction with upper computers, other intelligent devices, etc. Meanwhile, there is an RJ-11 interface (with similar functionality to port 1 on some CPUs) used to connect a terminal or emulation terminal for accessing administrator software, facilitating technicians to configure, monitor, and debug the system. In addition, it is equipped with a standard serial port (PS port) for serial communication between the CPU and other devices. When the control board transmits data through this serial port, the corresponding indicator light flashes; when the serial port is not in operation, it turns off, making it easy to intuitively judge the working status of the serial port.

Indicator Light Configuration: The DAPC100 is equipped with four LED indicator lights. Three adjacent ones are used to indicate the status of the Ethernet interface, namely EOK (indicating normal Ethernet connection), LAN (indicating network connection status), and STAT (reflecting network activity status). These indicator lights can clearly show the working condition of the Ethernet interface through different combinations of on/off and flashing, facilitating operators to quickly troubleshoot network connection faults. The other PS port indicator light is specifically used to indicate the working status of the CPU serial port, making it easy to monitor serial communication.

Core Control Function: With various on-board electronic components and optimized circuit design, the DAPC100 3ASC25H203 control board can accurately regulate various operating parameters of the AC drive, such as motor speed and torque, ensuring that the motor operates stably under different working conditions and meets the diverse needs of industrial production for motor drives.

Convenient Communication Function: The diverse communication interfaces endow the control board with strong communication capabilities. Through Ethernet interfaces, it can quickly and stably perform data interaction with other devices in the automation system, realizing functions such as remote monitoring and parameter setting. Serial communication provides a communication channel for devices that have low real-time requirements but need simple and reliable connections, expanding the application scenarios of the control board.

Visual Status Monitoring: The status monitoring system composed of four LED indicator lights provides operators with intuitive feedback on the equipment's operating status. Without complex detection tools, by observing the status of the indicator lights, one can quickly determine whether the Ethernet connection is normal, whether there is data transmission in the network, and whether the serial communication is smooth, etc., which greatly improves the efficiency of equipment fault diagnosis and maintenance.

Advantages of Hot-Swap Function: The hot-swap design of the power module allows safe replacement of the power module during system operation, avoiding system shutdown due to power module replacement. This is of great significance for industrial scenarios with high requirements for production continuity (such as continuous production industries like chemical industry and steel industry), effectively improving production efficiency and reducing economic losses caused by shutdowns.

Manufacturing Industry: In the steel manufacturing process, it is used to control various motor-driven equipment, ensuring the stable operation of steel rolling, smelting, and other links, and guaranteeing steel quality. In the field of automobile manufacturing, it can precisely control the AC drive systems of robotic arms, conveying equipment, etc., on the production line, realizing precise assembly and efficient transportation of components. In the electronics manufacturing industry, the control board can meet the precise control requirements of high-precision production equipment for motor drives, ensuring the production quality and efficiency of electronic products. In addition, industries such as machinery manufacturing and aviation manufacturing also rely on this control board to stably control the AC drives of various processing equipment and testing equipment, improving the level of manufacturing processes.

Energy Industry: In power generation fields such as thermal power, hydropower, nuclear power, and wind power, the DAPC100 3ASC25H203 control board can be used to control the excitation system, cooling system of generators, and AC drives of various auxiliary equipment, ensuring the stable operation of power generation equipment and improving power generation efficiency. In the process of oil and natural gas extraction and transportation, the control board can control AC motors of various pumps, compressors, and other equipment, ensuring stable extraction and transportation of energy.

Other Industries: In light industry fields such as glass manufacturing and papermaking, it is used to control various motor equipment on the production line, ensuring continuous production and stable quality of products. In the coal, metal, and non-metal mining and beneficiation industries, it can effectively control the AC drive systems of mining equipment and mineral processing equipment, improving the efficiency of mineral resource extraction and processing.
