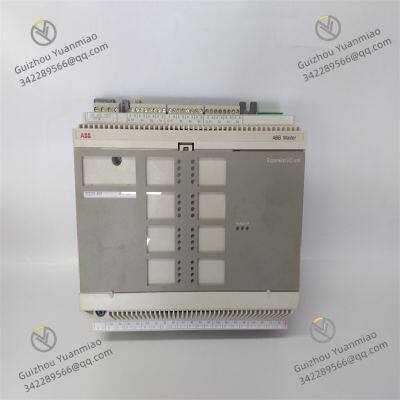

ABB DSAX452 5712289-A Analog I/O Module

ABB DSAX452 5712289 - A is a powerful remote input/output basic unit, elaborately designed to meet the complex and diverse signal processing and control needs in industrial systems. Originating from Switzerland (some information mentions Sweden as the place of origin), as an important member of ABB's industrial automation product line, it plays a key role in industrial control networks with advanced technology and reliable performance, providing a solid guarantee for achieving efficient and precise industrial automation control.

•


• Input/Output Channels: Equipped with 14 analog differential input channels with a resolution of 12 bits, which can accurately collect analog signals ranging from 0 to ±10V and 0 to ±20mA, ensuring precise acquisition of various sensor data and providing reliable front-end data support for the system. It also has 6 analog output channels with a resolution of 10 bits, and the output range covers 0 to +10V and 0 to +20mA, which can stably drive various actuators to achieve precise control of industrial equipment.

• Power Compatibility: Supports multiple AC voltage inputs, including 240V AC, 220V AC, and 120V AC. This wide voltage compatibility enables it to easily adapt to power systems in different industrial scenarios without the need for complex power conversion equipment, reducing the difficulty and cost of system integration.

• Physical Specifications: The product has a net depth/length of 240mm, a net height of 220mm, and a net width of 90mm. It adopts a compact and reasonable design, effectively saving space in the control cabinet and facilitating installation in various industrial environments with limited space. Its net weight is approximately 2.7kg, and the moderate weight not only ensures the stability of the equipment but also facilitates transportation and installation operations.

•


• Comprehensive Signal Processing Capability: Through rich analog input and output channels, it can process a large number of analog signals simultaneously. Whether it is the collection of sensor signals such as temperature, pressure, and flow, or the precise control of actuators such as control valves and frequency converters, it can handle them with ease, meeting the complex signal processing needs in industrial automation systems and improving the overall control accuracy and stability of the system.

• Remote Signal Processing and Integration: It has powerful remote signal processing functions, enabling efficient collection and control of analog signals over long distances. Through seamless integration with industrial control networks, it can transmit equipment data scattered in different areas to the central control system in real-time, while receiving and executing control commands from the central system, which greatly enhances the flexibility and scalability of the system and realizes centralized management and distributed control of industrial production processes.

• High Reliability Design: Designed for the harsh requirements of industrial environments, it uses high-quality industrial-grade components and advanced manufacturing processes, enabling it to have excellent anti-interference ability and stable operation performance. It can work continuously and stably in harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference, reducing the incidence of equipment failures, lowering maintenance costs, and ensuring the continuity and reliability of industrial production.

• Flexible Voltage Adaptation: Supporting multiple voltage inputs, users do not need to worry about the problem that the equipment cannot be used due to different on-site power supply voltages. In different regions or different industrial scenarios, this unit can be quickly and conveniently connected to the existing power supply system to achieve plug-and-play, improving the versatility and application range of the equipment.

•
