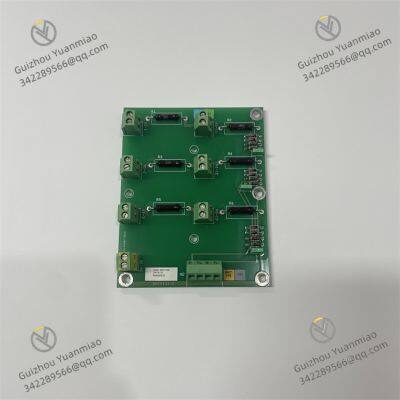

ABB DATX131 3ASC25H215E Controller Module

ABB DATX131 3ASC25H215E is a high-performance digital input/output module, belonging to ABB's industrial automation control system product line. In the field of industrial automation, it mainly undertakes the tasks of collecting digital signals and outputting control commands. It can accurately receive digital signals from on-site equipment, such as switch status and limit signals, and transmit these signals to the control system; at the same time, it can also convert the commands of the control system into digital signals to drive the action of actuators, serving as an important link connecting on-site equipment and the control system.

•


• Power Parameters: The working power supply is 24V DC, with an allowable voltage fluctuation range of ±10%, which can adapt to the fluctuation of the industrial on-site power supply and ensure stable power supply for the module.

• Input/Output Channels: Equipped with 16 digital input channels and 16 digital output channels, it can process multiple signals at the same time, meeting the needs of medium and large industrial control scenarios.

• Input Signal Type: Supports dry contact and wet contact input, adapts to 24V DC switch signals, with an input current range of 3mA-10mA, and can be compatible with output signals of various industrial switches and sensors.

• Output Signal Type: Adopts transistor output mode, each output can provide 24V DC voltage, with a maximum output current of 0.5A, and can drive actuators such as solenoid valves, indicator lights, and small contactors.

• Response Time: The response time of input signals is ≤1ms, and the response time of output signals is ≤1ms, which can quickly respond to signal changes and ensure the real-time performance of control.

• Isolation Performance: Optical isolation design is adopted between input channels, between output channels, and between input/output channels and the power supply, with an isolation voltage of 2500V AC, which effectively resists electromagnetic interference and ensures the accuracy of signal transmission.

• Environmental Parameters: The operating temperature range is 0℃-+60℃, and the storage temperature range is -40℃-+85℃; the relative humidity is 5%-95% (non-condensing); the protection level is IP20, suitable for installation in control cabinets to prevent dust intrusion.

• Physical Specifications: The size is approximately 150mm×100mm×80mm (length × width × height), and the weight is about 400g. It supports DIN rail mounting, with a compact design, saving installation space.

•


• Multi-channel Signal Processing: The configuration of 16 input and 16 output channels can collect and control multiple on-site signals at the same time, realize the collaborative work of multiple devices, simplify system wiring, and improve the efficiency of industrial control.

• Fast Response Capability: The response time of both input and output signals is ≤1ms, which can quickly capture changes in on-site signals and promptly execute commands from the control system, ensuring real-time monitoring and adjustment of the industrial production process.

• High Anti-interference: The optical isolation design combined with advanced filtering technology can effectively suppress electromagnetic interference, surges and other noises in industrial sites, avoid the generation and transmission of false signals, ensure the reliability of signals, and reduce equipment misoperation caused by interference.

• Flexible Compatibility: Compatible with multiple types of input and output signals, it can be connected with on-site equipment and control systems of different brands and types without additional conversion equipment, reducing the difficulty and cost of system integration.

• Status Monitoring and Diagnosis: The module panel is equipped with independent LED indicators for each channel, which can intuitively display the status of input and output signals; it has a self-diagnosis function, which can monitor abnormal situations such as power failure and channel short circuit, and upload fault information to the control system, facilitating maintenance personnel to quickly troubleshoot problems.

•


• Manufacturing Industry: In production lines such as automobile manufacturing and mechanical processing, it can collect the in-place signals of conveyors, the limit signals of robotic arms, etc., and control the start-stop of conveyors, the actions of robotic arms, etc., realizing the automated operation of the production line and improving production efficiency and product quality.

• Power Industry: Used in substations, power plants and other places, it collects the opening and closing status of circuit breakers, the position signals of disconnectors, etc., and controls the actions of indicator lights, small contactors and other equipment, realizing real-time monitoring and control of the operating status of power equipment, and ensuring the safe and stable operation of the power system.

• Chemical Industry: In chemical production equipment, it collects the switch status of valves, the operation signals of pumps, etc., and controls actuators such as solenoid valves and alarm devices, cooperating with the control system to realize precise control of the chemical production process and ensure production safety.

• Metallurgical Industry: In the smelting process of iron and steel and non-ferrous metals, it collects the operation signals of rolling mills, the switch status of furnace doors, etc., and controls the actions of cooling systems and conveying equipment, ensuring the stable progress of the smelting process and improving the efficiency and safety of metallurgical production.

• Municipal Engineering: In urban water supply, drainage, heating and other systems, it collects the start-stop status of water pumps, the pressure switch signals of pipe networks, etc., and controls the opening and closing of valves, the operation of pressurization equipment, etc., realizing the automated management of municipal facilities and ensuring the normal life of residents.
