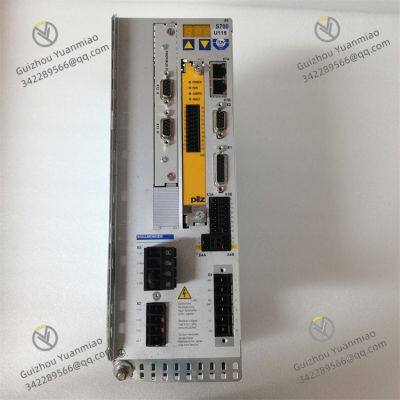

Kollmorgen S72402-NANANA Servo Drive

The S72402 is the series number of the drive, while NANANA is a custom identifier. This drive features excellent compatibility, enabling it to work with various motion controllers and other devices. It is suitable for multiple fields such as industrial automation, robotics, and CNC machine tools. With high reliability, it can operate stably in harsh environments and is easy to maintain. It has the capability of high-speed and high-precision motion control, supports multiple control modes, can connect to high-resolution encoders, is equipped with various communication interfaces such as Ethernet and CAN bus, and also has built-in protection functions against overcurrent, overheating, overvoltage, etc.

• Multi-Closed-Loop Control Architecture: Based on three closed-loop controls of position loop, speed loop, and current loop, combined with advanced PID algorithms, it achieves sub-micron positioning accuracy, suitable for precision scenarios such as semiconductor manufacturing and electronic processing.

• High Dynamic Response Characteristics: Low rotor inertia, short acceleration/deceleration time (e.g., 0-3000rpm acceleration time ≤50ms), supporting high-speed start-stop and complex trajectory tracking (such as S-curve and trapezoidal curve planning).

• High Torque Output in Compact Design: Rated power 2.4kW, peak torque up to 15Nm, body size only 120×120×150mm, suitable for space-constrained equipment (such as collaborative robots and small automated production lines).

• High-Efficiency Drive: Adopts sine-wave current control and low-loss silicon steel sheet materials, with motor efficiency ≥95%, low temperature rise, and strong long-term operation stability.

• Support for Multiple Encoder Types: Built-in 24-bit absolute encoder (EnDat 2.2 protocol), with position resolution reaching 16 million pulses per revolution, supporting real-time high-precision position feedback.

• Industrial Communication Compatibility: Standard with EtherCAT interface, optional Profinet, Modbus TCP and other protocols, seamlessly integrated into upper systems such as PLC and robot controllers.

• Communication Interfaces: Supports various communication protocols such as EtherCAT, Profinet, and CANopen, and also provides interface options such as RS232 interface, analog input/output, and digital input/output.

• Control Modes: Supports position control, speed control, torque control, etc.

• Noise Emission: Approximately 65dB(A).

• Operating Temperature: Ideal temperature range is 0℃-40℃.

• Relative Humidity: Up to 85% (non-condensing).

• Minimum Inductance: 0.7mH.

• Alarm F19 (Single-phase Main Power Supply is Too Weak): Try turning off the power and switching to 2-phase power supply.

• Power Failure: If caused by power voltage fluctuations or instability, ensure the power supply is stable and reliable, and stabilizers and other equipment can be used; if it is a power overload, check the load situation to ensure it does not exceed the rated load capacity of the drive and power supply; if the power cord is poorly connected, check the power cord connection to ensure the plug and socket are firm without looseness or disconnection.

• Communication Failure: If there is disconnection, short circuit, or poor contact in the communication line, check the communication line, repair the disconnection, eliminate the short circuit, and ensure good interface connection.

• Overvoltage Abnormality: It may be a power problem or a failure of the computer board or servo drive. First, check whether the power voltage is too high. If the power supply is normal, check the computer board or servo drive and repair or replace them if necessary.
