Home > Products > National Instruments > NI PXI-6052E Data Acquisition Module

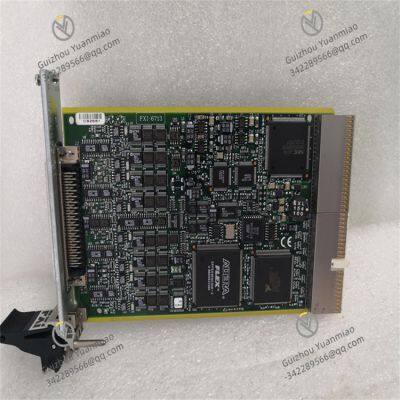

NI PXI-6052E Data Acquisition Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model

Product Description

NI PXI-6052EI. Product Positioning and Core Functions

The NI PXI-6052E is a PXI bus-based data acquisition (DAQ) module specifically designed for medium-speed analog/digital signal acquisition and output, suitable for industrial automation, laboratory testing, educational research, and other scenarios. Its core advantages include:

Multi-Functional Integration: Combines analog input, analog output, digital I/O, and counter functions, supporting synchronous processing of multiple signal types.
Medium-Speed High-Precision Acquisition: 12-bit ADC resolution and a maximum sampling rate of 1.25 MS/s meet the measurement requirements for conventional dynamic signals (such as voltage, current, and temperature).
Flexible I/O Configuration: Supports software-customizable channel functions, adapting to diverse testing scenarios (e.g., sensor signal acquisition, control signal output).

II. Hardware Specifications and Technical Parameters

Parameter Category	Specific Indicators
Analog Input (AI)	16 single-ended/8 differential inputs, 12-bit ADC, maximum sampling rate 1.25 MS/s, input ranges ±10V, ±5V, ±1V, ±0.5V
Analog Output (AO)	2 analog outputs, 12-bit DAC, maximum update rate 100 kS/s, output ranges ±10V, 0~10V
Digital I/O (DIO)	24 digital I/O (16 inputs/8 outputs), compatible with TTL/CMOS levels, supporting digital triggering and handshake protocols
Counter/Timer	2 x 24-bit counters, supporting frequency measurement, pulse width modulation (PWM), and event counting
Triggering and Synchronization	Supports PXI bus triggering, external triggering (TTL level), analog triggering (threshold triggering), and system clock sharing
Operating Environment	Temperature: 0℃~+55℃, humidity: 5%~95% (non-condensing), conforming to industrial-grade reliability standards

III. Typical Application Scenarios1. Industrial Process Monitoring and Control

Data acquisition from production line sensors (e.g., temperature, pressure, flow) for real-time equipment status monitoring.
PID closed-loop control combined with analog output channels (e.g., motor speed regulation, heating furnace temperature control).

2. Electronic Signal Testing and Analysis

Acquisition and playback of audio signals and communication baseband signals, supporting signal integrity analysis (e.g., harmonic distortion, noise level).
Logic state monitoring of digital circuits (capturing timing signals via DIO channels).

3. Educational and Research Experiments

Physics/electronics experimental teaching (e.g., RC circuit response, sensor principle verification).
Development of research prototype systems (e.g., simple data recorders, multi-channel signal acquisition platforms).

IV. Software Support and Programming Interfaces1. Drivers and Development Tools

NI-DAQmx Driver: Compatible with development environments such as LabVIEW, Python, C++, and MATLAB, providing a unified API interface.
NI MAX: Used for hardware configuration, channel calibration, self-test, and diagnostics.
SignalExpress: Code-free data acquisition software supporting real-time waveform display and simple analysis.

2. LabVIEW Programming Example (Pseudocode)

plaintext
// Analog input configuration (single-channel voltage acquisition) [Create DAQmx task] → Add AI voltage channel (physical channel "/PXI1Slot3/ai0", range ±10V) → Set sampling parameters (sampling rate 10 kS/s, buffer 1024 points, continuous acquisition mode) // Analog output configuration (generate sine wave) → Add AO voltage channel (physical channel "/PXI1Slot3/ao0", range 0~10V) → Generate 1 kHz sine wave array (amplitude 5V), configure for cyclic output // Synchronous acquisition and output While (operation status) {     Read AI data (real-time display of voltage values)     Write AO data (update sine wave output)     Output status indication via DIO channel (e.g., high level indicates system operation) }

V. System Integration and Expansion Recommendations1. Hardware Matching Solutions

Switch Module: Pair with the NI PXI-2564 multi-channel relay to expand to signal scanning for hundreds of channels (e.g., multi-point monitoring of large equipment).
Dedicated Module: Combine with the NI PXI-4472 dynamic signal acquisition card for synchronous analysis of high-frequency signals such as vibration and noise.
Chassis Selection: Compatible with PXI/PXI Express chassis (e.g., NI PXIE-1075) to achieve multi-module synchronization via the bus.

2. Performance Optimization Measures

Anti-Interference Design: Use shielded cables for analog input channels, connect the ground end to the chassis common ground to reduce electromagnetic interference.
Sampling Rate Configuration: Set the sampling rate to over 200 Hz based on the signal frequency (e.g., 100 Hz dynamic signal) to meet the Nyquist sampling theorem.
Calibration and Maintenance: Perform regular self-calibration via NI MAX (recommended annually) to compensate for ADC/DAC drift errors.

VI. Comparison with Similar Products

Model	NI PXI-6052E	NI PXI-6251 (High-Precision M Series)
Resolution	12-bit (analog input)	16-bit (analog input), dynamic range increased to 98 dB
Sampling Rate	Up to 1.25 MS/s (single channel)	Up to 1.25 MS/s (8-channel synchronous)
Special Functions	Basic multi-functional I/O, cost-effective	Built-in signal conditioning (IEPE support), hardware trigger chain
Application Scenarios	Routine industrial monitoring, educational experiments	High-precision research testing, dynamic signal analysis (e.g., vibration, acoustics)
