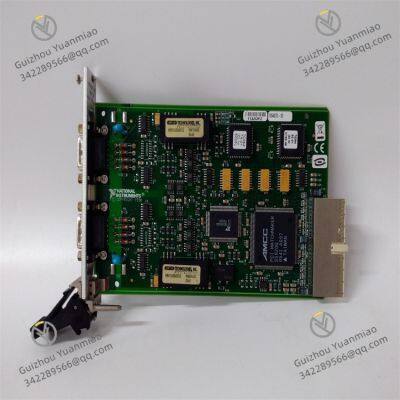

NI PXI-8423 Serial Communication Module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Temperature	0℃~55℃
Humidity	5%~95% (non-condensing)

Product Description

NI PXI-8423I. Product Positioning and Core Functions

The NI PXI-8423 is a high-performance serial communication module based on the PXI bus, specifically designed for automated testing, industrial control, and instrument integration scenarios requiring high-speed and reliable serial data transmission. Its core features include:

Multi-Channel Serial Integration: Supports 2 independent RS-232/422/485 serial channels, enabling simultaneous communication with multiple devices and compatibility with various industrial protocols.
High-Speed Data Transmission: The maximum baud rate reaches 115,200 bps (RS-232) or 1 Mbps (RS-422/485) per channel, meeting real-time data interaction requirements.
Flexible Protocol Support: Hardware-level compatibility with RS-232/422/485 electrical standards, and software-level support for custom protocols (e.g., Modbus, SCPI, custom instruction sets).
Reliable Hardware Design: Integrated overvoltage protection, ESD shielding, and isolation circuits (RS-422/485 channels), suitable for anti-interference scenarios in industrial environments.

II. Hardware Specifications and Technical Parameters

Parameter Category	Specific Indicators
Channels	2 independent serial ports (Channel 0 and Channel 1)
Electrical Standards	- RS-232: ±12 V level, maximum transmission distance 15 m - RS-422/485: Differential signals, maximum transmission distance 1,200 m
Baud Rate Range	- RS-232: 50 bps ~ 115.2 kbps - RS-422/485: 50 bps ~ 1 Mbps
Data Bits	5/6/7/8 bits (configurable)
Stop Bits	1/2 bits (configurable)
Parity Modes	No parity, odd parity, even parity, mark parity, space parity
Flow Control	- Hardware: RTS/CTS (RS-232), DTR/DSR - Software: XON/XOFF
I/O Protection	RS-422/485 channels support ±15 kV ESD protection, ±30 V overvoltage protection
Isolation	RS-422/485 channels support 2500 V rms electrical isolation; RS-232 channels non-isolated
PXI Bus Interface	PXI 2.2 (32-bit/33 MHz PCI), maximum data transfer rate 132 MB/s
Operating Environment	Temperature: 0℃~55℃, Humidity: 5%~95% (non-condensing)

III. Typical Application Scenarios1. Industrial Equipment Communication and Monitoring

Scenario: Multi-device networking of PLCs with sensors/actuators, such as data acquisition from temperature sensor arrays on production lines.
Implementation: Connect 32 Modbus slave stations (e.g., temperature transmitters) via RS-485 bus, leverage the dual-channel parallel communication of NI PXI-8423 to read temperature data in real time and upload to the master control system, with communication delay <10 ms.

2. Instrument Integration Testing

Scenario: Automated test process control for RF instruments (e.g., signal generators, spectrum analyzers).
Implementation: Send SCPI commands via RS-232 interface to control instrument parameters (e.g., frequency, power settings), while receiving test result data. Collaborate with LabVIEW to implement fully automated test sequences, improving test efficiency by 50%.

3. Embedded System Debugging and Data Interaction

Scenario: Ground station debugging for UAV flight control systems, requiring real-time reception of flight data and transmission of control commands.
Implementation: Use RS-422 channel to communicate with the flight control board at 500 kbps, transmitting attitude data (angular velocity, acceleration) and control commands (servo parameters), supporting hot-swapping and real-time error checking.

IV. Software Support and Programming Interfaces1. Drivers and Development Tools

NI-VISA Driver: Provides unified APIs for serial configuration, data read/write, and error handling, compatible with development environments like LabVIEW, C, Python, and MATLAB.
LabVIEW Serial Module: Graphical programming interface supporting drag-and-drop serial communication flow design, with built-in data flow monitoring and protocol analysis tools.
NI-Serial Toolkit: Offers advanced functions (e.g., custom protocol parsing, multi-channel synchronization) and supports real-time operating system (NI RT) deployment.

2. LabVIEW Programming Example (Pseudocode)

plaintext
// Dual-channel serial communication (RS-485 master mode) [Initialization configuration] → Configure Channel 0 as RS-485, baud rate 500 kbps, 8 data bits, 1 stop bit, no parity, enable hardware flow control   → Configure Channel 1 as RS-422, baud rate 1 Mbps, same parameters as above, enable isolation protection   // Send and receive data (Modbus RTU protocol) → Channel 0 sends Modbus read command: [Slave address 01][Function code 03][Start register 0001][Register count 0010][CRC check]   → Wait for response (timeout 500 ms), read data frame and parse temperature values (registers 0001-0010 correspond to 10 temperature sensors)   → Channel 1 sends real-time control commands to actuators while receiving device status feedback (e.g., motor speed, valve opening)   // Error handling mechanism   → When a parity error (CRC mismatch) is detected, automatically resend the command (up to 3 times)   → Trigger an interrupt when the serial port is disconnected, switching to the backup channel (e.g., enable Channel 1 for redundant communication if Channel 0 fails)

V. System Integration and Expansion Solutions1. Hardware Matching Recommendations

Serial Cables and Adapters:

RS-485 bus: Use shielded twisted-pair cables (AWG 24) with 120 Ω terminal matching resistors.
RS-232 connection: Straight or cross cables, supporting DB9 male/female adapters.

Multi-Device Networking: Pair with the NI PXI-8430 serial expansion module (4 channels) to achieve multi-serial synchronization via the PXI trigger bus, supporting up to 16 channels for parallel communication.
Industrial Environment Adaptation: Connect external isolation repeaters (e.g., ADAM-4520) to extend RS-485 bus distance to 2 km, or use optoelectronic converters for electrical isolation.

2. Performance Optimization Strategies

Real-Time Optimization: Deploy programs in the NI RT system to reduce Windows system scheduling latency (typical response time <500 μs).
Anti-Interference Design:

Keep cables away from strong electromagnetic sources (e.g., motors, frequency converters), and ground the RS-485 bus at a single point.
Enable hardware flow control (RTS/CTS) to avoid data congestion and reduce packet loss rate (typical <0.01%).

VI. Comparison with Similar Products

Model	NI PXI-8423	NI PXI-8430	NI PXI-8512 (USB to Serial)
Channels	2 channels	4 channels	2 channels (USB interface)
Maximum Baud Rate	1 Mbps (RS-422/485)	1 Mbps (RS-422/485)	230.4 kbps (RS-232)
Isolation	RS-422/485 channels isolated	RS-422/485 channels isolated	Non-isolated
Core Advantages	Dual-serial high-speed synchronization, industrial-grade protection	Multi-channel expansion, cost-effective	Strong portability, suitable for temporary debugging
Application Scenarios	Medium-scale industrial communication, instrument integration	Multi-device networking, automated testing	Laboratory debugging, portable devices
