Home > Products > Cummins Diesel Generator > Silent Type Cummins 400kW Diesel Generator Set with 800A ATS Box

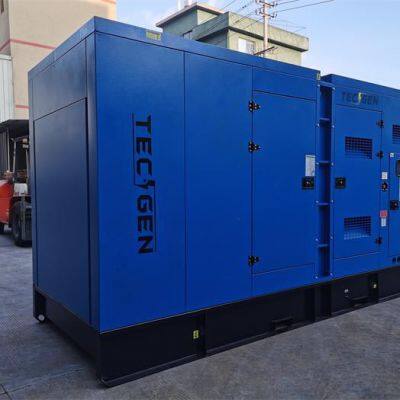

Silent Type Cummins 400kW Diesel Generator Set with 800A ATS Box
- 0 Set / Sets per Month
- Fuzhou
- T/T L/C PayPal D/P Western Union Other
- 20 days
You May Like
-
Weifang Ricardo 225kVA Diesel Engine Genset with Soundproof Canopy for Emergency Power
-
Open type 31kVA Ricardo Diesel Generator with 1800rpm Weifang Ricardo Engine for Back-up Power
-
150kW Weichai Marine Diesel Generator Set Marine Genset with Sea Water Pump Exchanger
-
150kVA Marine Diesel Generator Powered by Weichai Marine Diesel Engine
-
380V 154kW Marine Diesel Generator Weichai Marine Diesel Genset for Vessel Use
-
60Hz 154kW Marine Diesel Generator Weichai Marine Diesel Genset Vessel Operation
Product Details
Type | Self-Starting Diesel Generator | Warranty | 1500hours | |
Stroke | Four Stroke | Usage | Common Units, Emergency Crew | |
Speed | Speed | Cooling Method | Water Cooling | |
Installation Method | Fixed | Excitation Mode | AC Rotating Exciter | |
Conditions of Use | Land Use | Landuse Type of Unit | Low Noise Automation Type | |
Output Type | AC Three Phase | Model | TG550CS | |
Voltage | 440V//415V/400V/380V/230V/220V/110V | Frequency | 50Hz | |
Prime power | 400kW / 500kVA | Max power | 440kW / 550kVA | |
Engine Brand | Cummins | Engine model | KTA19-G3A | |
Alternator Model | TGI404S900 | Engine model option | QSK19-G13 | |
Breaker | Delixi Brand | Transport Package | FCL | |
Trademark | TECGEN | Origin | CHINA |
Product Description
Silent Type Cummins 400kW Diesel Generator Set with 800A ATS Box
Products: 500kVA Cummins Diesel Standby Generator
Standby Output: 440kW / 550kVA
Prime Output: 400kW / 500kVA
Payment Term One: 30% Paid By T/T for Deposit, 70% Paid by T/T Before Shipment.
Payment Term Two: 100% Paid by Irrevocable L/C At Sight.
Engine Manufacturer: Dongfeng Cummins Engine Co., Ltd.
Warranty: 12 months or 1,000 running hours, subject to which comes first.
Supply Scope: Diesel engine, Alternator, Automatic start / stop control panel, Dry type air fillter, fuel filter, oil filter, 4V D.C automatic battery charger, Max. 50 degree celsius radiator, Batteries, rack and cable, Ripple flex exhaust pipe, flange and muffler, Circuit breaker, Base Fuel tank, Complete users' manual.
Testing: Tecgen Power provides a full line of brand new and high quality products. Every unit is strictly factory tested.
Services Parts: Service and parts are avaiable from Tecgen Power or distributors in your location.
Technical Specification: | ||||
Generator Set Specification | ||||
Genset Model | TG550C | TG550CS | TG550C | TG550CS |
Open | Silent | Open | Silent | |
Frequency | 50Hz | |||
Voltage | 400/230V | |||
Phase | 3 | |||
Rate Current (A) | 721.7 | |||
Prime Power | 400kW / 500kVA | 400kW / 500kVA | ||
Standby Power | 440kW / 550kVA | 440kW / 550kVA | ||
Engine Model | KTA19-G3A | QSK19-G13 | ||
Alternator Model | TGI354S400 | TGI354S400 | ||
Controller | Smartgen HGM6120N | |||
Fuel Tank Capacity | 1400L | 1200L | ||
Weight And Dimensions | ||||
Length (mm) | 3650 | 4510 | 3650 | 4510 |
Width (mm) | 1550 | 1880 | 1550 | 1880 |
Height (mm) | 2200 | 2300 | 2200 | 2300 |
Weight (kgs) | 4400 | 5530 | 4400 | 5530 |
Engine Specification | ||||
Engine Model | KTA19-G3A | QSK19-G13 | ||
Prime/Standby power (kw) | 507 / 563 | 570 / 630 | ||
Injection | Indirect | Indirect | ||
Aspiration | Turbocharged & Intercooled | Turbocharged and Air to Air Aftercooled | ||
No. of cylinders | 6 | 6 | ||
Bore of Stroke (mm) | 159 x 159 | 159 x 159 | ||
Displacement (L) | 19 | 19 | ||
Cooling | water | water | ||
Compression Ratio | 13.9:1 | 15:1 | ||
Engine Oil capacity (L) | 30.3 | 41.6 | ||
Coolant Capacity ( In radiator) | 30.3 | 41.6 | ||
Governor | Electric | Electric | ||
Air Filter | Dry Element | Dry Element | ||
Fuel consumption | at 50Hz | at 50Hz | ||
100% Load (L/h) | 201 | 143 | ||
75% Load (L/h) | 154 | 109 | ||
50% Load (L/h) | 107 | 77 | ||
25% Load (L/h) | 56 | 40 | ||
Alternator Specification | ||||
Brand | Tecgen | |||
Model | TGI354S400 | |||
Rate Output (kW) | 400 | |||
Pole | 4 | |||
Winding Connections | Star | |||
Insulation Class | H | |||
Enclosure | IP23 | |||
Altitude (m) | ≤1000 | |||
Voltage Regulator | AVR | |||
Steady State Voltage Regulator | 1% | |||
Bearing | single | |||
Controller System | ||||
Brand | Smartgen | |||
Model | HGM6120N | |||
Functions | Control with AMF module | |||
Static with auto. battery charger | ||||
Emergency stop push button | ||||
ATS Connection | ||||
OPTIONAL EQUIPMENTS | ||||
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts |
Tecgen Power Generator Feature:
1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.
2, Different brands of engine, alternator and controller as options
3, Coupled with Stamford alternator, Marathon alternator or Tecgen Power alternator
4, Open type, silent type, super silent type or mobile type generator.
5, CE, ISO9001-2008, SONCAP, SASO and SGS certified
6, Starter System with maintenance-free battery
7, Control Panel with Key Start (Power Switch)
8, With 100% fire-resistant sound attenuating sponge
9, 10% of rate output of overload for 1hours in every 12hours
10, Spare parts are easy to get from worldwide market with much cheaper price
11, Perfect after-service network
12, Both 50Hz and 60Hz
13, Chint circuit breaker
14, Three-phase output meets differing requirements
15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option
16, Working Hours Base Fuel Tank
17, Anti-Vibration Mounted
18, Industrial silencer and flexible exhaust hose
19, 0-110% load test for each unit before delivery
20, Warranty with 1000 hours or one year, which comes first.
perfect and luxury for advertising.
All stand machine can install wheel. It depends on your requirements. If we done this, the machine can move around easily.
