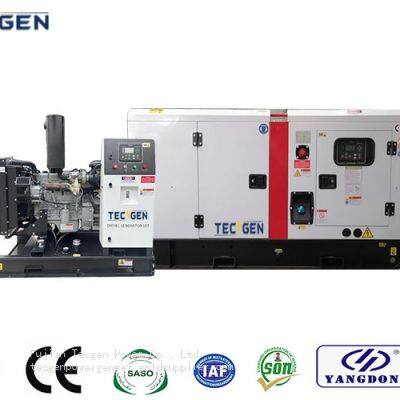

26kVA Silent Diesel Generator Yangdong Diesel Generator with Three Phase Output

FOB Price

USD $1750 - $3200 / Set

1 Set(Min.Order)

Port Fuzhou
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail20 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Self-Starting Diesel Generator	Warranty	1500hours
Stroke	Four Stroke	Usage	Common Units, Emergency Crew
Speed	Speed	Cooling Method	Water Cooling
Installation Method	Fixed	Excitation Mode	AC Rotating Exciter
Conditions of Use	Land Use	Landuse Type of Unit	Low Noise Automation Type
Output Type	AC Three Phase	Model	TG29YDSD6
Voltage	440V//415V/400V/380V/230V/220V/110V	Frequency	60Hz
Prime power	21kW / 26kVA	Max power	23kW / 29kVA
Engine Brand	YANGDONG	Engine model	Y490D
Alternator Model	TGI184S21	Controller	Smartgen HGM6110N
Fuel Tank Capacity	10 running hours	Transport Package	FCL
Trademark	TECGEN	Origin	CHINA

Product Description

26kVA Silent Diesel Generator Yangdong Diesel Generator with Three Phase Output

Product Description for 26kVA Silent Diesel Generator

Key Features:

Powerful & Efficient: Equipped with a reliable Yangdong diesel engine, delivering up to 26kVA prime power.
Ultra-Silent Operation: Silent/super silent design ensures minimal noise, ideal for noise-sensitive environments.
Stable Frequency: 60Hz Generator Set ensures consistent and stable power output for sensitive equipment.
Automatic Control: Smartgen controller for seamless operation and protection against various faults.

Standard Features:

Forced Water Cooling: Ensures optimal engine temperature and longer lifespan.
Overload Protection: Safeguards the generator from damage during overloads.
Easy Access Panels: Facilitates quick maintenance and repairs.

26kVA Silent Diesel Generator Technical Datasheets
Genset model				TG29YDSD6
Genset Type				Silent / Super Silent
Rated Voltage				440V//415V/400V/380V/230V/220V/110V
Frequency				60Hz
Speed				1800rpm
Output Type				AC Three Phase
P.F(COS)				P.F. 0.8
Prime Output Current				64.2A
Prime Power				21kW / 26kVA
Standby Power				23kW / 29kVA
Diesel Engine			Brand	Yangdong
			Model	Y490D
AC Alternator			Brand	Tecgen Power
			Model	TGI184S21
Genset Controller			Brand	Smartgen
			Model	HGM6110N
Genset Weight				900kgs
Genset Dimensions				L2100 * W 900 * 1000
Fuel Tank Capacity				10 running hours
Yangdong Diesel Engine Data
Brand				Yangdong
Engine Model				Y490D
Number of Cylinders				4 Cylinder in Line
Cycle				4-troke
Aspiration				Natural Aspiration
Displacement				2.67L
Compression ratio				18:1
Bore×Stroke				90*105mm
Speed				1800rpm
Prime Power				28kW
Standby Power				31kW
Speed Governor				MECH or Electrical
Cooling System				Forced water cooling cycle
Starting system				DC Motor
Fuel Consumption at 100% Load				243g/kwh@1800rpm
AC Alternator Data
Brand				Tecgen Power
Model				TGI184S21
Frequency/speed				60HZ/1800RPM
Rate Output				21kW
No. of Phase				3 Phase, 4 Wire
Exciter type				Single bearing, Brushless, Self-excited with AVR
Power factor				0.8
Insulation Grade				H
Protection Grade				IP23
Working Condition				Below 1000m
Bearing				Single
Coupling				Direct
Voltage adjust range				≥5%
Voltage regulation NL-FL				≤±1%
Genset Controller System
Controller System	Brand			Smargen
	Model			HGM6110N
	Functions			Auto Mains (Utility) Failure
				Static with auto. battery charger
				Emergency stop push button
				ATS & RS485 Connection
				CAN Functions
Diesel Generator Set Output ranges & Brand Options
Prime Power (kW)		Diesel Engine		AC Alternator	Controller	Type
8kW ~ 2400kW		Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin		Leroy Somer / Stamford / Mecc Alte / Tecgen	DEIF	Open/Silent
7kW ~ 320kW		Yangdong / FAWDE / Quanchai / YTO		Tecgen	Smartgen
11kW ~ 104kW		Beinei Aircooled		Tecgen
10kW ~ 300kW		Weifang Ricardo		Stamford	DEEPSEA
6.8kW ~ 2000kW		Caterpillar		Caterpillar	Caterpillar
6.8kW ~ 2000kW		FG Wilson		FG Wilson	FG Wilson
17kW ~ 30kW		Isuzu		Mecc Alte	ComAp
210kW ~ 818kW		VMAN		Tecgen	Tecegn
6kW ~ 2000kW		Chinese Engines			Smartgen

Usage:
Ideal for hospitals, banks, data centers, and other critical power applications where reliable and silent power is paramount.

Options:

Customization: Available to meet specific voltage, frequency, and output power needs.
Additional Accessories: Including ATS (Automatic Transfer Switch) for seamless power transfer.

Warranty:
Backed by an extensive 18-month or 1500-hour warranty, guaranteeing peace of mind and reliable performance.

FAQ:

Q: How silent is the generator?
A: It is designed for ultra-silent operation, providing a comfortable environment. Exact noise levels are available upon request.
Q: Can the generator be customized?
A: Yes, we offer customization options to suit your specific needs. Contact us for more details.

With its robust construction, high-efficiency, and silent operation, this 26kVA Silent Diesel Generator is the perfect choice for your power needs. Contact us now for more information and to order yours!
