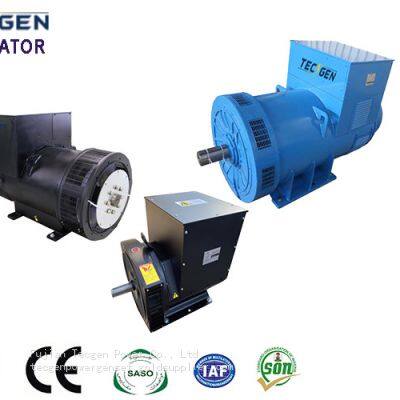

AC Brushless Alternator with AVR - Efficient synchronous generators

FOB Price

USD $100 - $50000 / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Port Fuzhou
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Self-Starting Diesel Generator	Warranty	1500hours
Stroke	Other	Usage	Common Units, Standby Unit, Emergency Crew
Speed	Speed	Cooling Method	Wind Cooling
Installation Method	Fixed	Excitation Mode	AC Rotating Exciter
Conditions of Use	Land Use	Landuse Type of Unit	Ordinary
Output Type	AC Three Phase	Brand	Tecgen
Output range	1kVA - 1000kVA	Alternator Type	Brushless / Brush
Frequency	50 / 60Hz	Voltage	110/120/208/220/230/240/380/400/415/440
Bearing	Single Or Double	Altitude	Below 1000m
Connection Type	AC Single Phase / Three Phase	Protection Grade	H
Voltage Regulation	AVR	Transport Package	FCL
Trademark	TECGEN	Origin	CHINA

Product Description

AC Brushless Alternator with AVR - Efficient synchronous generators

FEATURES OF THREE PHASE ALTERNATOR:

Compatible with all permanent magnetic generators, ensuring consistent excitation.
Meets GB755, IEC60034, BS5000, VDE0530, CSAC22.2-100 standards.
Available with single or double bearings, plus various adaptor & disc plate options.
12 reconnectable winding terminals for versatile voltage options.
Standard H insulation class for reliability.
Easy installation & maintenance of lead-end rotated diodes & adaptor bolts.
Standard sealed, maintenance-free bearings.
Standard IP23 protection, with optional enhanced environmental protection.

Model	Prime		Stand-by		stator	Single bearing Packed
	400V/50Hz				length	size/Weight
	KW	KVA	KW	KVA	L=	mm	m3	KGS
TGI-164A	6.5	8	7	9	65mm	430440490	0.10	93
TGI-164B	8.8	11	10	12	80mm	430440490	0.10	97
TGI-164C	10.8	14	12	15	100mm	460440490	0.10	106
TGI-164D	12.8	16	14	18	115mm	460440490	0.10	112
TGI-184ES	15	19	17	21	135mm	520490510	0.13	130
TGI-184E	18	23	20	25	150mm	520490510	0.13	138
TGI-184F	22	28	24	30	190mm	610490510	0.16	161
TGI-184G	25	31	28	34	230mm	610490510	0.16	177
TGI-184H	30	38	33	41	255mm	670490510	0.17	222
TGI-184J	34	43	37	47	285mm	670490510	0.17	235
TGI-224C	34	43	37	47	130mm	720490770	0.27	242
TGI-224D	40	50	44	55	160mm	720490770	0.27	265
TGI-224E	48	60	53	66	180mm	810490770	0.31	288
TGI-224F	58	73	64	80	240mm	810490770	0.31	320
TGI-224G	68	85	76	95	300mm	860490770	0.33	365
TGI-274C	80	100	88	110	165mm	810580850	0.40	390
TGI-274D	96	120	104	130	205mm	810580850	0.40	427
TGI-274ES	100	125	112	140	215mm	810580850	0.40	440
TGI-274E	112	140	124	155	230mm	930580850	0.46	490
TGI-274FS	120	150	132	165	250mm	930580850	0.46	510
TGI-274F	128	160	140	175	285mm	930580850	0.46	530
TGI-274G	146	183	160	200	335mm	980580850	0.49	593
TGI-274H	160	200	176	220	375mm	1020585850	0.51	625
TGI-274J	180	225	200	250	410mm	1110585850	0.55	660
TGI-274K	200	250	220	275	450mm	1110585850	0.55	680
TGI-314C	200	250	220	275	275mm	1150680930	0.73	851
TGI-314D	240	300	264	330	340mm	1150680930	0.73	931
TGI-314ES	260	325	288	360	410mm	1150680930	0.73	1022
TGI-314E	280	350	308	385	370mm	1150680930	0.73	950
TGI-314FS	304	380	336	420	500mm	1220690950	0.80	1150
TGI-314F	320	400	352	440	450mm	1220690950	0.80	1150
TGI-354C	360	450	400	500	350mm	13207501050	1.04	1355
TGI-354D	400	500	440	550	430mm	13707801050	1.13	1380
TGI-354E	488	610	536	670	500mm	13707801050	1.13	1490
TGI-354FS	500	625	560	700	440mm	13707801050	1.13	1550
TGI-354F	536	670	600	750	575mm	13707801050	1.13	1640
TGI-404B	600	750	660	825	355mm	17509201360	2.19	1920
TGI-404C	640	800	704	880	380mm	17509201360	2.19	2015
TGI-404D	728	910	800	1000	410mm	17509201360	2.19	2102
TGI-404E	800	1000	880	1100	470mm	17509201360	2.19	2227
TGI-404F	900	1125	1000	1250	560mm	17509201360	2.19	2452
TGI-404G	1000	1250	1100	1375	675mm	17809201360	2.23	2820
TGI-454B	1080	1350	1200	1500	465mm	194010501540	3.14	2900
TGI-454C	1264	1580	1400	1750	550mm	194010501540	3.14	3091
TGI-454D	1400	1750	1540	1925	620mm	216010501540	3.50	3391
TGI-454E	1520	1900	1680	2100	700mm	216010501540	3.50	3629
TGI-454F	1664	2080	1840	2300	770mm	216010501540	3.50	3913
TGI-454G	1800	2250	2000	2500	820mm	216010501540	3.50	4127

TECHNICAL SPECIFICATIONS OF THREE PHASE ALTERNATOR:

Stable voltage adjustment rate: ±0.5%
Instant voltage adjustment rate: ≥-15% to ≤+20%
Voltage adjustment range: ≥±25%
Insulation class: H
Constant working type: s1
Protection class: IP23

Remark:

Land rate data of three phase alternator applies to all models at 40oC (Altitude ≤ 1000m).
The voltages listed are derived from diverse individual windings, achieved through reconfiguration of 12 outlet terminals (3-phase) and 4 outlet terminals (single-phase).
We also offer custom voltage ranges tailored to client specifications.
