28kVA ISUZU Silent Diesel Generator Couple with Stamford Alternator Continuous USE
- 0 Set / Sets per Month
- Fuzhou
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
-
Premium AC Brushless Alternator - Efficient synchronous generators
-
Perkins Diesel Generator Set - TG58PSD6 Open / Silent Type
-
Prime 260kW Cummins Generator Sets with Sounproof Canopy for Emergency Power
-
Rated 25kVA Weifang Ricardo Diesel Engine Genset for Back-up Power Use
-
22kW Silent Enclosed Diesel Generator Powered by Yangdong Diesel Engine
Product Details
Type | Self-Starting Diesel Generator | Warranty | 1500hours | |
Stroke | Four Stroke | Usage | Common Units, Standby Unit, Emergency Crew | |
Speed | Speed | Cooling Method | Water Cooling | |
Installation Method | Fixed | Excitation Mode | AC Rotating Exciter | |
Conditions of Use | Land Use | Landuse Type of Unit | Low Noise Automation Type | |
Output Type | AC Three Phase | Model | TG28JIS | |
Frequency | 50Hz | Voltage | 230/400V | |
Phase | 3 Phase, 4 Wire | P.F(COS) | P.F 0.8 | |
Rated Power | 20kW / 25kVA | Standby Power | 22kW / 28kVA | |
Engine Brand | JX Isuzu | Engine Model | JE493DB-02 | |
Alternator Model | Stamford SOL2-P1 | Transport Package | FCL | |
Trademark | TECGEN | Origin | CHINA |
Product Description

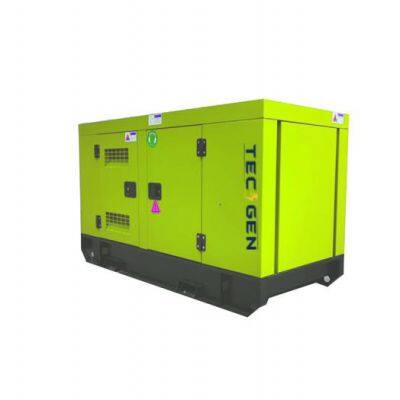

28kVA ISUZU Silent Diesel Generator Couple with Stamford Alternator Continuous USE
Introducing the Silent Power Generator - an exceptional ISUZU Diesel Generator that combines reliability, efficiency, and versatility. With its silent enclosed design, this generator set provides a seamless power solution for various applications. Let's explore the key points that differentiate our product and cater to Google SEO optimization:
Standard Features:
Power Output: 20kW/25kVA (Prime) and 22kW/28kVA (Standby)
Engine Model: ISUZU JE493DB-02, a robust 4-cylinder, naturally aspirated engine
Generator Model: SOL2-P1
Voltage: 230/400V (Customizable to multiple options)
Frequency: 50Hz
Speed: 1500rpm
Integrated-fuel-tank: An 8-hour internal fuel tank prevents corrosion damage, making it ideal for coastal or humid environments.
DEIF SGC-420 multifunctional controller: Ensures comprehensive control and monitoring capabilities.
Mechanical or electronic speed regulation: Provides flexibility for speed adjustments.
Maintenance-free 24V lead-acid battery with battery rack: Guarantees hassle-free operation.
Delixi or CHNT circuit breakers: Ensures reliable electrical protection.
Industrial-grade silencer: Reduces noise levels for a quieter operation.
Forklift holes: Facilitates easy transportation and maneuverability.
Optional configurations: Choose from built-in ATS or wall-mounted ATS box for seamless automatic transfer of power.
Super silent operation: Offers a peaceful environment with minimal noise.
24-hour fuel tank: Provides extended operation without refueling.
Remote monitoring and start: Allows convenient control and monitoring of the generator set from a distance.
Oil-water separator: Ensures efficient separation of oil and water for enhanced performance.
Water jacket heater: Facilitates quick engine start-up in cold conditions.
Output switch: Enables easy control of power distribution.
Parallel operation capability: Allows multiple generator sets to be connected in parallel for increased power output.
3000-hour spare parts: Ensures availability of necessary components for maintenance.
18-month or 1500-hour after-sales service: Provides reliable support and assistance.
Optional engine brands: Choose from SDEC, Yuchai, Doosan, Shanghai Engine, VMAN, Wudong, Googol, CAT, Perkins, Deutz Cummins, and more.
Optional generator brands: Select from renowned brands like Stamford, Leroy Somer, Meccalte, and Marathon.
Versatile configurations: Available in open, silent, containerized silent, and trailer-mounted silent options.
High production capacity: Factory produces 3000 units annually.
28kVA JX Isuzu Diesel Generator Datasheets:
28kVA ISUZU Silent Diesel Generator Technical Datasheets | ||||||
Genset model | TG28JIS | |||||
Genset Type | Silent Enclosed | |||||
Rate Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
Frequency | 50Hz | |||||
Speed | 1500rpm | |||||
P.F(COS) | P.F. 0.8 | |||||
Prime Output Current | 34.8A | |||||
Prime Power | 20kW / 25kVA | |||||
Standby Power | 22kW / 28kVA | |||||
Engine | Brand | ISUZU | ||||
Model | JE493DB-02 | |||||
Alternator | Brand | Stamford | ||||
Model | SOL2-P1 | |||||
Controller | Brand | DEIF | ||||
Model | SGC-420 | |||||
Genset Weight | 660kgs | |||||
Genset Dimensions | L2080 * W 880 * 1100 | |||||
ISUZU Diesel Engine Data | ||||||
Brand | Isuzu | |||||
Engine Model | JE493DB-02 | |||||
Number of Cylinders | 4 Cylinder in Line | |||||
Cycle | 4-troke | |||||
Aspiration | Natural Intake | |||||
Displacement | 2.771L | |||||
Compression ratio | 18.2L | |||||
Bore×Stroke | 93*102mm | |||||
Speed | 1500rpm | |||||
Prime Power | 24kW | |||||
Standby Power | 27kW | |||||
Speed Governor | MECH or Electrical | |||||
Cooling System | Forced water cooling cycle | |||||
Starting system | DC Motor | |||||
Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
Stamford Alternator Data | ||||||
Brand | Stamford | |||||
Model | SOL2-P1 | |||||
Frequency/speed | 50HZ/1500RPM | |||||
Rate Output | 25kVA | |||||
No. of Phase | 3 Phase, 4 Wire | |||||
Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
Power factor | 0.8 | |||||
Insulation Grade | H | |||||
Protection Grade | IP23 | |||||
Working Condition | Below 1000m | |||||
Bearing | Single | |||||
Coupling | Direct | |||||
Voltage adjust range | ≥5% | |||||
Voltage regulation NL-FL | ≤±1% | |||||
DEIF Controller System | ||||||
Controller | Brand | DEIF | ||||
Model | SGC-420 | |||||
Function | Auto Mains (Utility) Failure | |||||
Static with auto. battery charger | ||||||
Emergency stop push button | ||||||
ATS & RS485 Connection | ||||||
CAN Functions | ||||||
Diesel Generator Output ranges & Brand Options | ||||||
Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
17kW ~ 1260kW | Cummins | Leroy Somer | DEIF | Open/Silent | ||
10kW ~ 300kW | Weifang Ricardo | Tecgen | Mebay | |||
16kW ~ 600kW | Deutz | Marathon | DEIF | |||
7kW ~ 64kW | Yangdong | Tecgen
| ||||
7kW ~ 76kW | Quanchai | |||||
18kW ~ 3000kW | Weichai | |||||
8kW ~ 800kW | SDEC | |||||
12kW ~ 320kW | FAWDE | |||||
18kW ~ 1200kW | Yuchai | |||||
11kW ~ 104kW | Beinei Aircooled | |||||
7kW ~ 1800kW | Perkins | Stamford | DEEPSEA | |||
6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
6kW ~ 2000kW | Chinese Engines | Smartgen |
Usage:
Suitable for residential, commercial, and industrial applications.
Ideal as a backup power source for various equipment.
Key Features:
Silent Power Generator: Enjoy the tranquility of a noise-free operation.
ISUZU Diesel Generator: Benefit from the reliability and efficiency of an ISUZU engine.
Customizable options: Tailor the generator set to your specific requirements by choosing from various engine and generator brands.
Advanced control and monitoring: The DEIF SGC-420 controller ensures precise control and comprehensive monitoring capabilities.
Durable and corrosion-resistant: Designed to withstand coastal and humid environments, ensuring long-lasting performance.
Options and Advantages:
Wide range of engine and generator brands to choose from, allowing customization based on specific needs.
Multiple configurations available to suit different installation requirements.
Advanced features like remote monitoring, parallel operation, and oil-water separator enhance convenience and performance.
Comprehensive warranty and after-sales support provide peace of mind.
