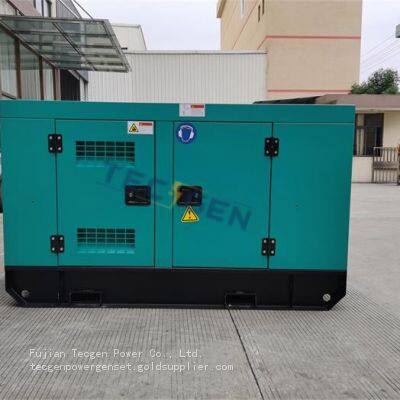

60kW Chinese Diesel Engine Generator Yandgong Silent Generator for Home Use
- Fuzhou
- T/T L/C PayPal D/P Western Union Other
- 20 days
You May Like
-
4 Cylinders 50kVA Diesel Engine Genset Isuzu Diesel Generator with Leroy Somer Alternator
-
31kW ISUZU Silent Power Generator 39kVA Standby Genset Powered by Isuzu Diesel Engine
-
3 Phase 36kW JX Isuzu Diesel Generator Silent Power Genset for Continuous Use
-
AC Brushless Alternator with AVR - Efficient synchronous generators
-
Brushless Alternator with Single Bearing AC Alternator for Diesel Generator Use
-
Three Phase Alternator AC Brushless Alternator with AVR for Diesel Generator Set Use
Product Details
Type | Self-Starting Diesel Generator | Warranty | 1500hours | |
Stroke | Four Stroke | Usage | Common Units, Emergency Crew | |
Speed | Speed | Cooling Method | Water Cooling | |
Installation Method | Fixed | Excitation Mode | AC Rotating Exciter | |
Conditions of Use | Land Use | Landuse Type of Unit | Low Noise Automation Type | |
Output Type | AC Three Phase | Model | TG83YDS | |
Voltage | 440V//415V/400V/380V/230V/220V/110V | Frequency | 50Hz | |
Prime power | 60kW / 75kVA | Max power | 66kW / 83kVA | |
Engine Brand | YANGDONG | Engine model | Y4110ZLD | |
Alternator Model | TGI224S60 | Controller | Smartgen HGM6110N | |
Fuel Tank Capacity | 10 running hours | Transport Package | FCL | |
Trademark | TECGEN | Origin | CHINA |
Product Description
60kW Chinese Diesel Engine Generator Yandgong Silent Generator for Home Use
Product Description: Silent Diesel Generator Set
Introducing our top-tier Silent Diesel Generator Set, the ultimate solution for noise-sensitive environments. This generator set is designed to deliver reliable power with minimal noise, making it ideal for home use and various business applications.
Key Features:
Ultra-quiet operation, providing low noise generator performance.
High-efficiency diesel engine for reliable and long-lasting power output.
Durable AC alternator, ensuring stable and clean power supply.
Compact and modular design for easy transportation and quick installation.
Standard Features:
Complete with all necessary accessories for seamless setup and operation.
User-friendly control panel for intuitive and convenient operation.
Advanced safety features to protect both the operator and the equipment.
Silent Diesel Generator Set Technical Datasheets | ||||||
Genset model | TG83YDS | |||||
Genset Type | Silent | |||||
Rated Voltage | 440V//415V/400V/380V/230V/220V/110V | |||||
Frequency | 50Hz | |||||
Speed | 1500rpm | |||||
Output Type | AC Three Phase | |||||
P.F(COS) | P.F. 0.8 | |||||
Prime Output Current | 104.3A | |||||
Prime Power | 60kW / 75kVA | |||||
Standby Power | 66kW / 83kVA | |||||
Diesel Engine | Brand | Yangdong | ||||
Model | Y4110ZLD | |||||
AC Alternator | Brand | Tecgen Power | ||||
Model | TGI224S60 | |||||
Genset Controller | Brand | Smartgen | ||||
Model | HGM6110N | |||||
Genset Weight | 1500kgs | |||||
Genset Dimensions | L2400 * W 1150 * 1400 | |||||
Fuel Tank Capacity | 160L | |||||
Yangdong Diesel Engine Data | ||||||
Brand | Yangdong | |||||
Engine Model | Y4110ZLD | |||||
Number of Cylinders | 4 Cylinder in Line | |||||
Cycle | 4-troke | |||||
Aspiration | Turbocharged & Intercooled | |||||
Displacement | 4.4L | |||||
Compression ratio | N.A | |||||
Bore×Stroke | 110*118mm | |||||
Speed | 1500rpm | |||||
Prime Power | 80kW | |||||
Standby Power | 88kW | |||||
Speed Governor | Electrical | |||||
Cooling System | Forced water cooling cycle | |||||
Starting system | DC Motor | |||||
Fuel Consumption at 100% Load | 207g/kwh@1500rpm | |||||
AC Alternator Data | ||||||
Brand | Tecgen Power | |||||
Model | TGI224S60 | |||||
Frequency/speed | 50HZ/1500RPM | |||||
Rate Output | 75kVA | |||||
No. of Phase | 3 Phase, 4 Wire | |||||
Exciter type | Single bearing, Brushless, Self-excited with AVR | |||||
Power factor | 0.8 | |||||
Insulation Grade | H | |||||
Protection Grade | IP23 | |||||
Working Condition | Below 1000m | |||||
Bearing | Single | |||||
Coupling | Direct | |||||
Voltage adjust range | ≥5% | |||||
Voltage regulation NL-FL | ≤±1% | |||||
Genset Controller System | ||||||
Controller System | Brand | Smargen | ||||
Model | HGM6110N | |||||
Functions | Auto Mains (Utility) Failure | |||||
Static with auto. battery charger | ||||||
Emergency stop push button | ||||||
ATS & RS485 Connection | ||||||
CAN Functions | ||||||
Diesel Generator Set Output ranges & Brand Options | ||||||
Prime Power (kW) | Diesel Engine | AC Alternator | Controller | Type | ||
8kW ~ 2400kW | Cummins / Perkins / Deutz / Weichai / Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin | Leroy Somer / Stamford / Mecc Alte / Tecgen
| DEIF | Open/Silent | ||
7kW ~ 320kW | Yangdong / FAWDE / Quanchai / YTO | Tecgen | Smartgen | |||
11kW ~ 104kW | Beinei Aircooled | Tecgen | ||||
10kW ~ 300kW | Weifang Ricardo | Stamford | DEEPSEA | |||
6.8kW ~ 2000kW | Caterpillar | Caterpillar | Caterpillar | |||
6.8kW ~ 2000kW | FG Wilson | FG Wilson | FG Wilson | |||
17kW ~ 30kW | Isuzu | Mecc Alte | ComAp | |||
210kW ~ 818kW | VMAN | Tecgen | Tecegn | |||
6kW ~ 2000kW | Chinese Engines | Smartgen | ||||
Usage:
Suitable for a wide range of applications, including home backup power, construction sites, events, and more. With its low noise generator capability, it seamlessly integrates into any environment without disturbing the peace.
Options:
Customize your generator set with a range of power ratings and specifications to meet your specific needs. Additional accessories, such as soundproof canopies and exhaust silencers, are also available for further noise reduction.
Warranty:
Backed by a comprehensive warranty of 18 months or 1500 operating hours, ensuring peace of mind and long-term performance.
FAQ:
Q: What is the noise level of this generator set?
A: With its low noise generator design, it operates at ultra-quiet levels, making it suitable for noise-sensitive environments.Q: Can the generator set be customized to my specific needs?
A: Yes, we offer a range of customization options, including power ratings and additional accessories, to meet your unique requirements.
Experience the power and quiet operation of our Silent Diesel Generator Set. Contact us today for more information and to place your order!
