Home > Products > Foxboro > Foxboro FBM208 P0914TB Discrete Output Interface Module

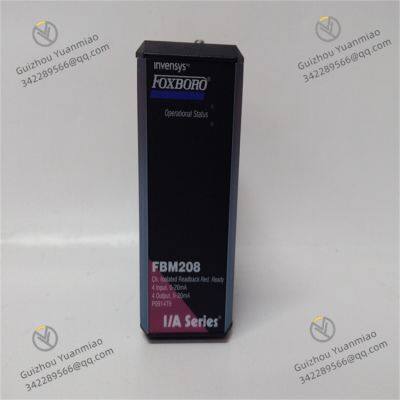

Foxboro FBM208 P0914TB Discrete Output Interface Module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Dimensions	263mm (H) × 58mm (W) × 28mm (D)
Weight	1.5kg	Power Voltage	24VDC ±10%

Product Description

Foxboro FBM208 P0914TBFunctional Features

Output Channels: 16 discrete output channels supporting on-off control for various industrial devices.
Output Types:

15-60V DC (for driving low-power relays, solenoid valves, etc.)
120V AC/125V DC (suitable for medium-high voltage load control)
240V AC (supports high-voltage device driving)

Isolation Characteristics: Each output channel uses optoelectronic isolation technology, with group isolation achieved via external excitation to effectively prevent interference.
Redundancy Configuration: Supports single-module or redundant module configuration to enhance system reliability and reduce downtime risks.
Design Features: Compact metal housing compliant with G3-level harsh environment standards, suitable for DIN rail mounting in industrial cabinets.
Functional Expansion: Executes discrete output control and ladder logic programs, supports fault diagnosis and output status feedback.
Wiring Method: Matched with terminal components (e.g., FBM208-TERM series), supporting local/remote wiring. Some terminals have signal conditioning and overload protection functions.

Technical Parameters

Physical Parameters

Parameter	Details
Origin	USA
Dimensions	263mm (H) × 58mm (W) × 28mm (D)
Weight	1.5kg (including terminal components)
Enclosure Material	Corrosion-resistant metal housing
Mounting Method	DIN rail mounting, compatible with standard cabinets

Electrical Parameters

Parameter	Details
Power Voltage	24VDC ±10%
Power Consumption	Maximum 20W (at full load output)
Number of Output Channels	16 discrete output channels
Output Types	- 15-60V DC (max 500mA) - 120V AC/125V DC (max 1A) - 240V AC (max 0.5A)
Output Impedance	Low impedance (suitable for inductive/resistive loads)
Isolation Voltage	2500Vrms between channels, group isolation via external excitation
Response Time	Typical 1-5ms (depending on load type)
Protection Functions	Output short-circuit protection, overload protection, reverse polarity protection

Performance Parameters

Parameter	Details
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-40°C to +95°C
Humidity Range	0-95% relative humidity (non-condensing)
Vibration Resistance	Complies with IEC 60068-2-6 (10-2000Hz)
Shock Resistance	Complies with IEC 60068-2-27 (50g, 11ms)
EMC Compatibility	Complies with EN 61000 industrial EMC standards

Communication Parameters
Parameter Details
Communication Protocol FOUNDATION Fieldbus H1 (31.25kbps)
Network Topology Bus/tree
Maximum Nodes 32 nodes per segment
Redundancy Support Supports dual redundant communication configuration

Parameter	Details
Communication Protocol	FOUNDATION Fieldbus H1 (31.25kbps)
Network Topology	Bus/tree
Maximum Nodes	32 nodes per segment
Redundancy Support	Supports dual redundant communication configuration

Configuration & Software

Parameter	Details
Configuration Tool	Foxboro I/A Series configuration software
Diagnostic Functions	Channel status monitoring, fault alarm, event log
Self-Diagnosis	Built-in watchdog, power monitoring, output loop detection

Typical Application Scenarios

Industrial Automation Control: Drives valves, motor start/stop, indicator lights, etc., to realize automated logic control of production lines.
Power System: Switchgear control, circuit breaker status feedback, power switching logic execution.
Process Control: ESD (Emergency Shutdown) systems, safety interlock loops, process equipment start/stop control.
Building Automation: On-off control for air conditioning units, lighting systems, and security equipment.

Supporting Terminal Components

Model	Features
FBM208-TERM1	Standard terminal block, suitable for 15-60V DC output
FBM208-TERM2	High-voltage terminal block, supports 120/240V AC output
FBM208-TERM3	Redundant terminal block, dual power input backup
FBM208-TERM4	Explosion-proof terminal block, suitable for hazardous areas

Application Fields

Manufacturing: Machine tool control, robot units, automated production line equipment driving.
Energy Industry: Power plant auxiliary equipment control, substation switch operation, new energy equipment start/stop management.
Petrochemical: Reactor stirring control, pipeline valve switching, safety interlock system execution.
Water Treatment: Water pump start/stop control, solenoid valve adjustment, filtration equipment logic control.

Common Faults and Solutions

No Output Response:

Check if load devices are normal (e.g., relay coil resistance, solenoid valve resistance).
Confirm if terminal component wiring is loose and measure whether output voltage meets load requirements.
Check output channel parameter settings (e.g., signal type, output mode) in the configuration software.
Test with a spare module to troubleshoot hardware faults.

Abnormal Output Action:

Detect if electromagnetic interference exists (e.g., power cables not isolated from signal lines).
Check if the output loop is short-circuited or grounded, and if terminal component fuses are blown.
Confirm if output logic in the software program is correct and if there are mis-triggering conditions.

Communication Failure:

Check if Fieldbus cable connections are secure and if terminating resistors are installed.
Verify that the module address matches the configuration software settings.
Restart the module or system to troubleshoot communication protocol compatibility issues.

Comparison with FBM207

Module Model	FBM207 (Discrete Input)	FBM208 (Discrete Output)
Core Function	Collects on-off input signals	Outputs on-off control signals
Channel Type	16 inputs, supports multiple voltage monitoring	16 outputs, supports multiple load driving
Isolation Method	Input current isolation	Output optoelectronic isolation
Typical Applications	Sensor signal collection, status monitoring	Equipment driving, logic control
