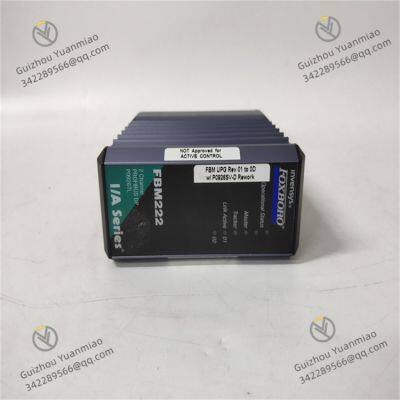

Foxboro FBM222 P0926TL Fieldbus Module

Incorrect Profibus DP bus wiring, such as cable open circuit, short circuit, or loose connection.

Misconfigured communication protocol, with parameters like baud rate and parity not matching other devices.

Conflicting module address settings causing communication chaos.

Electromagnetic interference affecting communication signal quality.

Check bus wiring to ensure firm connection, no damage or short circuit, and replace cables if necessary.

Confirm communication protocol parameter settings, ensure consistency with the master and other slave stations, and redownload the configuration.

Check the module address in the system to ensure uniqueness, reset the address, and restart the module.

Shield the bus, keep away from strong electromagnetic interference sources, or add anti-interference devices

External 24V DC power supply not connected or voltage abnormal, exceeding the module's allowable range.

Loose or poor contact of power terminal blocks.

Damaged internal power circuit of the module.

Use a multimeter to measure the power input, ensuring the voltage is 24V DC±5%. If abnormal, check the power supply or replace it.

Tighten power terminal blocks to ensure good contact; promptly handle or replace terminals if oxidized or damaged.

If the external power supply is normal, try replacing the module. If the issue is resolved, it indicates a fault in the original module's internal power circuit, requiring contact with the manufacturer for repair or replacement.

Excessively high working environment temperature, exceeding the module's rated operating temperature (-20°C to +60°C).

Poor ventilation at the module installation position, resulting in poor heat dissipation.

Long-term high-load operation of the module, or internal faults such as short circuits causing excessive current.

Improve the working environment and reduce the ambient temperature, such as adding air conditioners or fans.

Adjust the module installation position to ensure sufficient space for ventilation and heat dissipation, and clean debris and dust around the module.

Check the module's working load and connected devices to avoid overload operation; promptly eliminate short circuit faults or replace faulty components.

Incorrect channel configuration, such as signal type and range settings not matching the actually connected devices.

Damaged channel hardware, such as faults in internal components like A/D converters and amplifiers.

Faulty sensors or transmitters connected to the channel.

Check channel configuration parameters to ensure consistency with the actually connected sensors or transmitters, and retest after reconfiguring.

If configuration is correct, try replacing the channel or module to determine if it is a hardware fault. For hardware faults, contact the manufacturer for repair or replacement.

Check the working status of sensors or transmitters, and repair or replace them if faulty.

Internal module faults causing abnormalities in the indicator control circuit.

Software faults or incorrect configuration information affecting the normal display of indicators.

Try restarting the module to see if the indicators return to normal. If still abnormal, try redownloading the correct configuration information.

If the above methods are ineffective, it may be a hardware fault inside the module, requiring contact with the manufacturer for repair or replacement.
