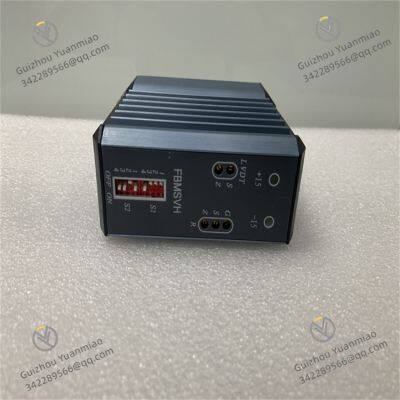

Foxboro FBMSVH Field Bus Module

Compatible with mainstream industrial communication protocols such as Modbus, Profibus DP, and HART, enabling seamless connection with field devices like sensors, actuators, and PLCs.

Supports communication interfaces including RS-232/485 and Ethernet, adapting to physical connection requirements of different devices.

Supports dual-bus redundancy configuration (e.g., A/B bus hot standby), automatically switching to the redundant path when the main communication link fails to reduce system downtime risks.

Features power redundancy and fault self-check at the hardware level, enhancing stability in industrial environments.

Provides a graphical configuration interface (e.g., FBMSSW software based on Windows/Solaris) for intuitive setup of channel parameters, communication rates, data mapping relationships, etc.

Supports online hot-swappable configuration updates, allowing module maintenance or parameter adjustment without shutdown.

Integrates real-time data from field devices (e.g., temperature, pressure, flow) into the Foxboro control system database, supporting historical data storage and trend analysis.

Enables custom alarm thresholds, prompting via system alarms, indicator lights, etc., for rapid fault location when data is abnormal or communication is interrupted.

Built-in self-diagnosis mechanism for real-time monitoring of channel faults, power anomalies, communication link status, etc., generating detailed diagnostic reports.

Supports integration with other Foxboro software (e.g., Control Builder, Display Builder) to form a complete automation solution.

Connects field instruments (e.g., pressure transmitters, flowmeters, control valves) with DCS systems to achieve data acquisition and control command issuance.

Communicates with devices like PLCs and frequency converters in petroleum refining and chemical production lines to coordinate multi-device collaborative operations.

Real-time collects process parameters such as temperature, pressure, and flow, uploading them to SCADA systems for closed-loop control (e.g., PID adjustment).

Supports data interaction with third-party systems (e.g., MES) to facilitate intelligent industrial management.

Monitors real-time operating status of field devices (e.g., motor speed, valve opening) through module self-diagnosis, providing advance warning of equipment faults.

Used in power systems to monitor transformer oil temperature, switchgear status, etc., improving equipment maintenance efficiency.

Phenomenon: Communication failure between the module and slave devices, with status lights flashing or off.

Causes: Poor cable connection, incorrect communication parameters (e.g., baud rate, address conflict), missing bus terminal resistors.

Solutions: Check cable connections and confirm terminal resistor installation; reconfigure communication parameters via FBMSSW software to ensure unique addresses.

Phenomenon: Collected data does not match actual values, or historical records are missing.

Causes: Communication interference, data mapping errors, improper filtering parameter settings.

Solutions: Use twisted shielded cables to enhance anti-interference; check data point mapping in software and adjust module filtering time (e.g., increase debounce cycle).

Phenomenon: Abnormal module indicator lights (e.g., constant ERROR light), with system prompting hardware faults.

Causes: Power anomalies, internal circuit failures, improper hot-swapping operations.

Solutions: Check if power voltage is stable; try restarting the module or redownloading configuration files; contact the manufacturer for maintenance or replacement if the issue persists.
