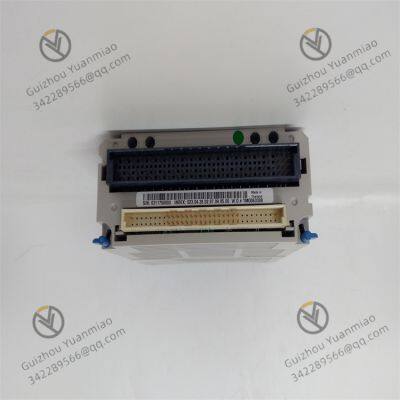

Emerson 5X00070G04 high-performance analog input module

Supports software-configurable input signal types without hardware jumpers. Signal types (current, voltage, RTD, or thermocouple) can be switched via system parameter settings, reducing on-site debugging complexity.

Built-in automatic calibration circuit enables periodic or manual zero and full-scale calibration to minimize accuracy deviations caused by temperature drift and long-term use (temperature drift error ≤±0.005%/°C).

Real-time status monitoring: Continuously detects anomalies such as input signal disconnection, out-of-range values, and channel failures, providing feedback to the main control system via LED indicators (e.g., power, communication, fault) and register status bits.

Hardware protection mechanisms: Each channel is equipped with overvoltage and overcurrent protection circuits to prevent module damage from sensor failures or wiring errors, enhancing system safety.

Supports mixed installation with same-series modules (e.g., analog output, digital input/output modules) in control cabinets, enabling data sharing via backplane buses to adapt to complex control system architectures.

Compatible with the HART protocol (optional function), enabling bidirectional communication of analog and digital quantities by superimposing FSK signals, supporting remote configuration and diagnosis of field devices.

Adopts DIN rail mounting, supporting horizontal or vertical installation. Sufficient heat dissipation space (module spacing ≥25mm) must be reserved.

Wiring terminals feature a detachable design for convenient on-site cabling and maintenance. Signal types (e.g., current, voltage) must be distinguished and connected by polarity during wiring.

Shielded cables must be used for analog signal wires, laid separately from power cables to reduce electromagnetic interference.

For RTD or thermocouple inputs, corresponding compensation wires must be used, and wiring resistance must be matched (e.g., Pt100 supports 3-wire or 4-wire connection).

Collects parameters such as flow, pressure, and temperature in petrochemical and power industries, providing real-time data for PID control and equipment monitoring (e.g., reactor temperature monitoring, steam pipeline pressure regulation).

Used in intelligent buildings and sewage treatment systems to collect analog signals such as temperature, humidity, liquid level, and gas concentration for real-time energy management or environmental parameter monitoring.

In metallurgy and manufacturing, monitors temperatures of key equipment such as motors and bearings via RTDs or thermocouples, combined with vibration sensor signals (requiring current input adaptation) for fault early warning.
