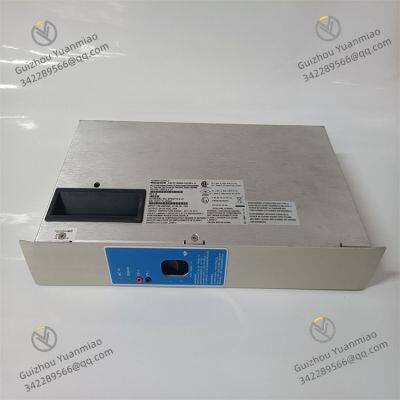

Honeywell SPS5710-2-LF 51198685-100 Power Supply Module

Operating voltage: typically 220V.

Output frequency: 100kHz.

Dimensions vary by specific model and design, but it is generally compact for easy installation in various equipment layouts.

Weight: approximately 0.46kg.

Operating temperature range: -20°C to +60°C.

With water, oil, and dust resistance, the protection level meets the requirements for harsh industrial environments.

Cause: The total power of connected devices exceeds the rated output power of the module.

Solution: Check the total power of the load devices, reduce non-essential loads, or replace the power module with a higher rated power.

Cause: Damage or aging of internal components (such as capacitors, transformers) of the power module.

Solution: After powering off, check the module's appearance for physical damage such as charring or bulging. If any, contact Honeywell after-sales service to replace the module. If there is no obvious damage, try restarting the module. If it is invalid, professional personnel are required for detection and maintenance.

Cause: Input voltage exceeds the rated range (e.g., non-220V power supply), loose input line connection, or power failure.

Solution: Check whether the input power voltage is within the rated range (220V±10%), confirm that the power cord is firmly connected, and repair or replace the faulty line.

Cause: Load current exceeds the module's rated value (e.g., long-term exceeding the maximum output current).

Solution: Disconnect part of the load, check if there is equipment short circuit or failure. After troubleshooting, restart the module. If the overload persists, confirm whether the load matches the module specifications.

Cause: The module's working environment temperature is too high (exceeding 60°C) or poor heat dissipation (such as dust accumulation on the shell, installation in a closed space).

Solution: Check whether the ambient temperature is within the range of -20°C to +60°C, clean the module shell and surrounding dust, ensure good ventilation at the installation position, and add a cooling fan if necessary.

Cause: Sudden increase in input voltage or overvoltage caused by output terminal anomalies.

Solution: Detect whether the input power voltage is stable, check if there is a short circuit or ground fault in the output line, and restart the module after repair

Cause: IP address, port number, and communication protocol configuration do not match the host computer.

Solution: Check and reset the communication parameters through Honeywell's special configuration software (such as FactoryTalk) to ensure consistency with the system.

Cause: Damaged network cable, loose interface, or faulty interface chip.

Solution: Replace the network cable and replug the interface. If the interface is damaged, contact after-sales service for repair or replace the module.

Cause: The communication protocol version supported by the module is incompatible with the device (such as too low EtherNet/IP version).

Solution: Confirm the protocol version supported by the module, upgrade the module firmware, or adjust the device protocol settings (refer to the product manual).

Cause: Input power is not connected or the module's internal power circuit fails.

Solution: Check the input power cord and circuit breaker to ensure normal power supply. If the power supply is normal but the indicator light is off, the internal power supply of the module may be damaged, and the module needs to be replaced.

Cause: The module is in a protection state (such as overload, overtemperature) or internal failure.

Solution: Refer to the solutions for triggered protection functions, restart the module after troubleshooting. If the alarm persists, professional detection is required.

Cause: External impact or insufficient protection level leads to water ingress and dust prevention failure.

Solution: If the shell is damaged but the internal circuit is not affected, temporarily protect it with insulating materials. If water ingress or internal moisture occurs, power off immediately for drying, and replace the module in severe cases (ensure the installation environment meets the protection requirements, such as IP65 grade).

Cause: Installation screws are not tightened, or interface looseness caused by equipment operation vibration.

Solution: Re-tighten the installation screws, check whether the wiring terminals are firm, and add shock absorption measures (such as rubber pads) if necessary.

Cause: Input/output cables are not shielded or are close to strong electromagnetic equipment, resulting in signal distortion.

Solution: Use shielded cables, separate signal wires from power cables for wiring, and add signal isolators (if the module itself supports isolation functions, confirm whether they are enabled).

Cause: Reduced accuracy after long-term use of the module or lack of regular calibration.

Solution: Calibrate the zero point and full scale of the module through Honeywell calibration tools or software. If the deviation is still large after calibration, the internal ADC/DAC chip may be faulty, and the module needs to be replaced.
