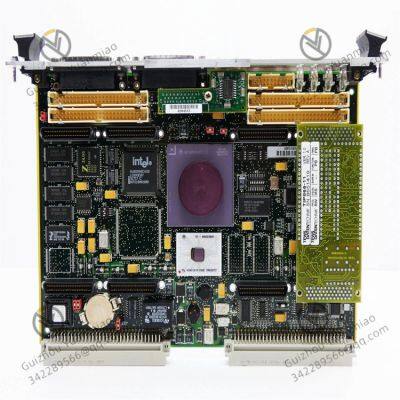

MOTOROLA MVME162P-344 VME bus architecture embedded controller

Utilizes a 32-bit data bus (expandable to 64-bit), supporting a maximum data transfer rate of 40 MB/s (A32/D32 mode). Enables high-speed communication between multiple modules via backplane connectors.

Complies with the Eurocard standard, with a module size of 6U (3U as the basic specification). Compatible with industrial-grade enclosures, supports hot-swapping (requires additional hardware), and is suitable for reliable operation in harsh environments.

Supports daisy-chain and parallel arbitration, allowing multiple master devices (e.g., CPU modules, DSP modules) to share bus resources, ensuring real-time response in multitasking systems.

Scenario: Speed control of steel mill rolling mills, temperature regulation of power plant boilers, pressure monitoring of chemical reactors, etc.

Advantages: Rapidly collects sensor data (e.g., encoders, pressure transmitters) via the VME bus, uses FPU for real-time control parameter calculations, and outputs PWM signals through IP modules to drive actuators, achieving control cycles within 1 ms.

Scenario: Trajectory planning and servo motor control for multi-axis machining centers.

Application: Leverages the MC68040's computing power to process G-code parsing and interpolation algorithms, communicates with servo drives via the VME bus for micron-level precision control. SCSI interface stores machining programs, supporting breakpoint resume.

Scenario: Aircraft sensor simulation, avionics system compatibility testing.

Features: Communicates with avionics equipment via RS-422 ports, simulates various sensor signals (e.g., temperature, pressure) using IP modules, and runs test programs and data recording tasks simultaneously through the VME bus's multi-master arbitration mechanism.

Scenario: Front-end data processing for medical imaging equipment (e.g., CT scanners).

Function: Receives detector signals, performs initial filtering and amplification, calculates projection data using the FPU, and transmits data to the backend image processing unit via the VME bus to meet real-time requirements.

Mature Ecosystem: Supports real-time operating systems like VxWorks and Linux, with complete  development tools (e.g., Wind River Workbench), ideal for long-term maintenance industrial projects.

Strong Compatibility: Stable VME bus standard ensures compatibility with devices from the 1990s to present, suitable for upgrading legacy industrial systems.

Performance Bottlenecks: 33 MHz clock speed and 16.5 MIPS processing power struggle to handle modern demands such as AI algorithms and high-definition vision processing, requiring external DSP or FPGA coprocessors.

Size & Cost: 6U form factor occupies significant space, and VME modules are costlier than newer interface solutions like PCIe/USB, making them more suitable for scenarios requiring extremely high reliability.
