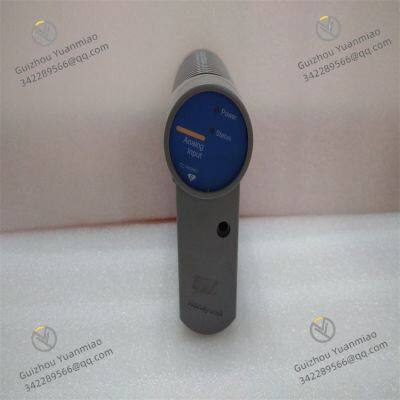

Honeywell CC-PAIN01 51410069-175 Analog Input Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Honeywell	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Other, Global universal model
Structure	Other, Global universal model	Output Range	4-20mA
Dimensions	19.1cm×18.8cm×6.5cm	Weight	0.35kg

Product Description

Honeywell CC-PAIN01

Features

High Precision and Resolution
With 16-bit resolution, it ensures accurate measurement and monitoring of process parameters, converting analog signals to digital signals with high precision to enhance the accuracy and reliability of control systems.
Multi-channel Input
Typically equipped with multiple analog input channels, it can receive analog signals from various sensors and instruments (such as thermocouples, pressure transmitters, etc.), meeting the requirements of complex industrial applications.
Easy Configuration and Programming
Users can configure and program the module according to specific application requirements, defining the functions and ranges of input channels. It also features software-configurable scaling and filtering settings for fine-tuning data acquisition.
Wide Industrial Applications
Suitable for various industrial and manufacturing applications such as chemical, power, pharmaceutical, food processing, and building automation. It can be integrated with systems based on advanced CNC platforms to achieve grinding process control with nanometer-level precision.
Self-diagnosis Function
Equipped with extensive self-diagnosis capabilities, it real-time monitors the module's working status, promptly detects and reports faults, helping to quickly locate and resolve issues.
High Reliability
Adopting a rugged structural design, it withstands harsh industrial environments (e.g., vibration and electromagnetic interference resistance). Some modules also offer optional redundant configurations to further enhance system reliability.

Technical Parameters

Input Range: 0-24Vdc.
Input Resolution: 16 bits.
Accuracy: ±0.1%.
Output Range: 4-20mA.
Output Accuracy: ±0.2%.
Operating Temperature: -40°C to 70°C.
Dimensions: 19.1cm×18.8cm×6.5cm.
Weight: 0.35kg.
Power Supply: Typically 24VDC for stable power supply. Electrical connections use M12 connectors to ensure reliability and stability.

Working Principle of Honeywell CC-PAIN01I. Signal Input and Acquisition Mechanism

Input Types and Ranges
Supports 16-channel analog input, compatible with current signals (e.g., 4-20mA, 0-20mA) and voltage signals (e.g., 0-10Vdc, ±10Vdc), adapting to signal outputs from industrial sensors such as pressure, temperature, and flow.
Partial channels (e.g., channels 13-16) support differential input, suppressing common-mode interference (e.g., electromagnetic noise) through dual-end signal acquisition to enhance signal stability in complex environments.
Signal Access Mode
Current signals are converted to voltage via a 200Ω precision resistor (e.g., 4-20mA corresponds to 0.8-4V), while voltage signals are directly connected to the input port.
Supports 2-wire or self-powered transmitters, enabling field device signal acquisition without additional power supply.

II. Core Processing of Analog-to-Digital Conversion (A/D Conversion)

16-bit High-Resolution ADC
Using a 16-bit analog-to-digital converter, it converts analog signals to digital quantities (resolution approx. 0.015% of full scale), ensuring high-precision data acquisition (e.g., temperature monitoring in chemical reactors, precision flow control scenarios).
The full-channel synchronous sampling rate reaches 100Hz, supporting dynamic adjustment of the sampling frequency to match rapidly changing industrial processes (e.g., compressor vibration monitoring).
Anti-interference Filter Design
Built-in single-pole RC filter attenuates 3dB at 6.5Hz, effectively suppressing 60Hz power frequency interference and high-frequency noise; inter-channel crosstalk suppression reaches -60dB to avoid signal mutual interference.
Common-mode rejection ratio (CMRR) is 70dB (DC to 60Hz, 500Ω source unbalance), eliminating the impact of common-mode interference such as ground potential differences on measurement accuracy.

III. Communication Protocols and Data Transmission

Bidirectional HART Protocol Communication
Built-in HART 5/7 protocol supports bidirectional interaction with field intelligent devices (such as smart transmitters):

Upstream: Transmits collected digital signals to PLC, DCS, or SCADA systems via the HART protocol.
Downstream: Receives control system commands to achieve remote parameter configuration (e.g., range calibration) and device diagnosis (e.g., sensor fault alarms).

Multi-protocol Compatibility and Interface Expansion
Supports Modbus RTU (RS-485 interface) and Modbus TCP (optional Ethernet interface), seamlessly integrating into industrial automation networks for data interaction with third-party devices.

IV. Self-diagnosis and Safety Protection Mechanism

Full-link Fault Monitoring
Real-time detects anomalies such as channel open circuits, short circuits, and signal overlimits (e.g., current exceeding 21mA), outputting diagnostic information via module indicator lights (e.g., LED status lights) or communication interfaces for quick fault point location.
Data Protection and Exception Handling
Supports process variable backup (e.g., maintaining the last valid data during signal anomalies) to avoid control logic errors caused by transient interference; the overlimit warning function triggers system alarms to prevent process parameter overruns.

V. Power Supply and Environmental Adaptability Design

Power Management
Powered by 24Vdc (wide voltage range 18-30Vdc), with power consumption ≤10W, supporting reverse connection protection and overvoltage protection to prevent module damage from power fluctuations.
Wide Temperature and Industrial-grade Reliability
Operating temperature range: -40°C to +85°C, adapting to harsh environments such as outdoor and high-temperature workshops.
Vibration resistance (complying with IEC 60068-2-6 standards) and electromagnetic interference resistance (complying with EN 61000-6-2 industrial standards) ensure long-term stable operation.

VI. Principle Differences from CC-PAIH51 (Extended Comparison)

Comparison Dimension	CC-PAIN01	CC-PAIH51
Differential Input Channels	Possibly supports only partial channels (e.g., channels 13-16)	May expand the number of differential channels or optimize circuit design
HART Communication Version	Supports basic HART 5/7 protocol functions	May enhance HART real-time performance or support HART-IP
Filtering and Anti-interference	Basic RC filter design	May upgrade to multi-stage filtering or add hardware shielding measures
Diagnostic Functions	Basic fault alarm	May support channel-level waveform monitoring or fault tracing
