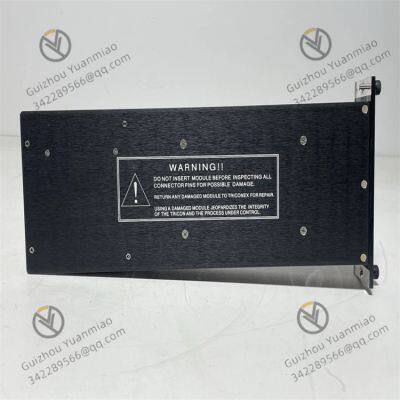

TRICONEX 8310 power module

TRICONEX 8310 power module

TRICONEX 8310 typically refers to a power supply module manufactured by TRICONEX. The following is an introduction to it from the aspects of functional characteristics, technical parameters, application fields, etc.:   - **Functional Characteristics**      - **Voltage Conversion**: It can convert the input alternating current (AC) or direct current (DC) into the required DC, providing a stable low-voltage DC power supply for TRICONEX systems or other related devices.      - **Isolation Protection**: It has good electrical isolation performance, with the isolation voltage between input and output exceeding 1000VAC or 1500VDC. This can effectively prevent interference and leakage risks between circuits, improving the safety and stability of the system.      - **Temperature Monitoring**: It is equipped with a built-in temperature sensor. When the internal temperature exceeds 181°F (83°C), the temperature warning monitor will trigger an alarm to remind users to take timely measures to avoid damage to the module due to overheating. This situation usually occurs when the ambient temperature reaches 140°F (60°C) or higher.      - **Alarm Contacts**: It is equipped with normally open, normally closed, and common alarm contacts. Each contact can support a current of 120VAC@1A, and can be externally connected to alarm devices such as indicator lights and buzzers to issue an alarm in a timely manner when abnormal conditions occur in the module.      - **Safety Protection**: The input terminals are equipped with safety protective covers to prevent operators from accidentally touching live parts, reducing the risk of electric shock. At the same time, it can also protect the terminals from the influence of dust, debris, etc.

- **Technical Parameters**      - **Input Power**: The minimum input power of each power module is 240 watts.      - **Output Power**: When the ambient temperature is 140°F (60°C), the output power is 175 watts.      - **Output Voltage**: The output voltage is 6.5VDC, with an accuracy of ±1% under all working conditions.      - **Output Current**: When the ambient temperature is 140°F (60°C), the maximum output current is 27 amperes.      - **Input Voltage Range**: For AC input, the voltage range is 85-140VAC, and the frequency is 47-63Hz; for DC input, the voltage range is 95-180VDC.      - **Fuse Specification**: A 5-ampere time-delay fuse is used, which can cut off the circuit in a timely manner when the circuit is overloaded or short-circuited, protecting the module and other devices from damage.      - **Physical Characteristics**: It weighs about 3.8 kilograms, has a moderate size, is convenient for installation and integration into various devices or systems, and the shipping weight is 7 kilograms.

- **Application Fields**      - **Industrial Automation**: It is used in the control systems of various industrial automation production lines and mechanical equipment to provide stable power supplies for devices such as programmable logic controllers (PLC) and distributed control systems (DCS), ensuring the precise control and stable operation of the production process.      - **Petrochemical Industry**: In the production devices of the petroleum and chemical industry, such as refineries and chemical plants, it supplies power to key control devices and safety instrument systems, ensuring the safety and reliability of the production process and preventing accidents caused by power problems.      - **Power System**: It can be applied to power systems such as power plants and substations to provide power support for power monitoring devices, protection relays, etc., ensuring the stable operation of the power system and the reliable transmission of electric energy.      - **Transportation**: In the transportation fields such as rail transit and aerospace, it provides high-quality power supplies for train control systems, avionics, etc., ensuring the safety and efficiency of transportation.      - **Other Fields**: It is also widely used in fields such as ships, mines, medical equipment, and data centers to provide stable power supplies for various devices and systems that require high-reliability power supplies.
