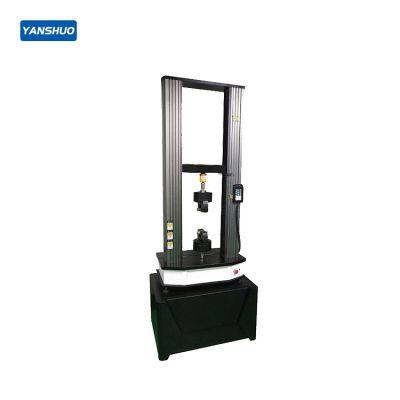

YG028 type electronic universal strength machine
- 10 Unit / Units per Month
- T/T
You May Like
Product Description
[Scope of Application]:
This device is designed to measure the mechanical properties of various materials, including textiles, nonwovens, leather, rubber, and metals. It can measure tensile strength, elongation at break, tear strength, peel strength, puncture strength, seam slip, seam strength, split strength, and elastic recovery. The device supports a variety of testing functions, such as constant speed, fixed displacement, fixed time, fixed load, and fixed elongation.
[Applicable standards]:
1. Breaking strength (strip method): GB/T3923.1; ISO13934.1; ASTM D5035;
(Grab method): GB/T3923.2; ISO13934.2; ASTM D5034;
2. Tear strength (tongue-shaped tear):GB/T3917.2; ISO13937.2; ASTM D2261;
(Trapezoidal tear): GB/T3912.3; ISO9074.4; ASTM D5587;
3.Suture slippage: GB/T13772.1/2/3;ISO13936.1/2; ASTM D434;
4.Force removal: FZ/T01085; ASTM D2724/3936; AATCC 136; FZ/T80007.1;
FZ/T01010；FZ/T60011
5. Steel ball bursting: GB/T19976; FZ/T01030; ISO3303; ASTM D3787/6796;
6. Resilient response: FZ/T70005; FZ/T70006; BS 4952;
7. Single yarn strength: GB/T3916/14344; ISO2062; ASTM D2256;
8. Other standards: GB/T4689.6; GB/T13763; GB/T13773; GB/T14800; GB/T15788;
GB/T16989；FZ/T01031；FZ/T20019；FZ/T60005；FZ/T60006；
FZ/T70007；ISO 13935.1/2；ASTM D1683；ASTM D4964；
ASTM D5733/5735；BS 3320。
[qualification ]：
1. Force measurement range: 50kg, 100kg, 250kg, 500kg, 1000kg; full scale 1~100%; (optional)
2. Force measurement accuracy: ±0.1%F.S;
3. Stretching speed: 1~1000mm/min (any setting);
4. Response speed: 1~1000mm/min (any setting);
5. Sampling frequency:>1000 times/second;
6. Extension resolution: less than or equal to 0.001mm;
7. Effective stroke: 700mm (pneumatic fixture) 800mm (manual fixture);
8. Power supply: AC220V±10%/50Hz
9. Power rate: 750w;
10. External dimensions: 820 x 630 x 1800 mm;
11. Net weight: 205Kg.
[Instrument Features]:
1. The instrument column is made of aluminum alloy profile, and the surface is treated with oxidation to be scratch resistant;
2. Philips 32-bit industrial level single chip controller is adopted, and 18-bit A/D converter is produced by AD Company in the United States, which has strong anti-interference performance and fast data processing and transmission;
3. The dynamic sampling frequency is more than 1000 times per second, which can effectively and correctly capture the peak of each data during the test;
4. LCD touch screen operation, full Chinese menu, built-in printer direct output report, easy to operate;
5. Online control of the computer to dynamically follow up the working status of the instrument; transmit test data and display the strong stretch curve in real time;
6. Pneumatic clamping, AC servo control system drive, ball screw transmission, ultra quiet operation;
7. Built-in automatic digital calibration system for force value;
8. Test the integrated design of function and open data connection interface to realize multi-function in one machine;
9. Force unit: CN, N, Kg and lb can be freely converted;
10. It has overload, overstroke and overpressure protection to ensure the safe operation of the instrument.
