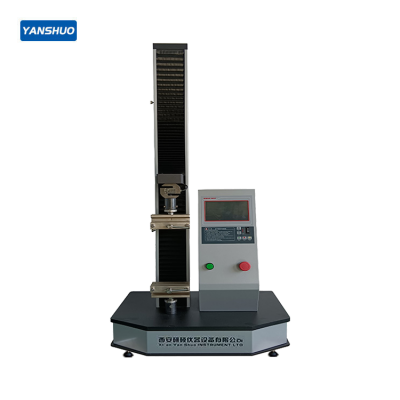

YG026T electronic fabric strength machine
- 10 Unit / Units per Month
- T/T
You May Like
Product Description
[Scope of Application]:
This device is designed to test the mechanical properties of various materials, including fabrics, nonwovens, papers, tapes, and nonwovens. It measures tensile strength, elongation at break, tear resistance, peel resistance, puncture resistance, splitting resistance, and seam slippage. It also supports a variety of testing functions, such as constant speed, fixed displacement, fixed time, fixed load, and fixed elongation.
[method standard ]：
Fracture strength (strip method): GB/T3923.1; ISO13934.1; ASTM D5035;
(Grab method): GB/T3923.2; ISO13934.2; ASTM D5034;
Tear strength (tongue-shaped tear): GB/T3917.2; ISO13937.2; ASTM D2261;
(Trapezoidal tear): GB/T3912.3; ISO9074.4; ASTM D5587;
Suture slippage: GB/T13772.1/2/3;ISO13936.1/2; ASTM D434;
Force removal: FZ/T01085; ASTM D2724/3936; AATCC 136; FZ/T80007.1; FZ/T01010; FZ/T60011
Steel ball bursting: GB/T19976; FZ/T01030; ISO3303; ASTM D3787/6796;
Single yarn strength: GB/T3916/14344; ISO2062; ASTM D2256;
Other standards: GB/T4689.6; GB/T13763; GB/T13773; GB/T14800; GB/T15788; GB/T16989; FZ/T01031; FZ/T20019; FZ/T60005; FZ/T60006; FZ/T70007; ISO 13935.1/2; ASTM D1683; ASTM D4964; ASTM D5733/5735; BS 3320.
[ technical parameter ]：
1. Force measurement range: 30kg; 50kg; 100kg; 250kg; full scale 1~100%; (optional)
2. Force measurement accuracy: ≤±0.5%F.S
3. Stretching speed: 1~500mm/min (any setting)
4. Response speed: 1~500mm/min (any setting)
5. Sampling frequency:>1000 times/second
6. Extension resolution: less than or equal to 0.01mm
7. Effective stroke: 600mm
8. Power supply: AC220V±10%
9. Power rate: 600w
10. External dimensions: 670x480x1400mm
11. Net weight: 115kg
[Instrument Features]:
1. Philips 32-bit industrial microcontroller is used for control, and 18-bit A/D converter produced by AD Company of the United States has strong anti-interference performance and fast data processing and transmission
2. The dynamic sampling frequency is more than 1000 times per second, which can effectively and correctly capture the peak data during the test process
3. Touch screen display, full Chinese menu (can customize English menu), easy to operate
4. The computer is controlled online to dynamically track the working state of the instrument; transmit test data and display the strong stretch curve in real time
5. Driven by automatic servo system, ball screw transmission, and ultra-quiet operation
6. Built-in automatic digital calibration system for force value
7. Test the integrated design of function and open data connection interface to realize multi-function of one machine
8. Force unit: CN, N, Kg and lb can be freely converted
9. It has overload, overstroke, overpressure and overheating protection to ensure safe and reliable operation of the instrument
[ hardware configuration ]：
1. Delta servo system (motor, driver) or alternative, servo system dedicated reducer
2. Philips 32 is an industrial-grade single chip microcomputer
3. AD Corporation of the United States produces 18 A/D converters
4. The United States imports high precision dynamic sensors
5. Ball screw, precision guide rail
