Home > Products > Non-woven fabric testing instrument2 > YG461E-Ⅰ Nonwoven Air Permeability Tester

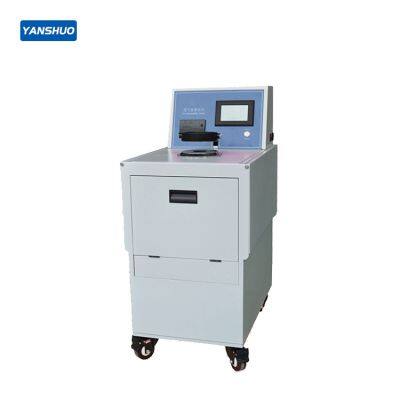

YG461E-Ⅰ Nonwoven Air Permeability Tester
- 0 Unit / Units per Month
- T/T
You May Like
Product Description
【Scope of Application】:
Used to test the air permeability of various materials such as fabrics, non-woven fabrics, industrial filter cloth, paper, and various filter media.
【Compliance Standards】:
GB/T 5453, ASTM D737, ASTM D3574, EN ISO 7231, EN ISO 9237, BS 5636, DIN 53887, JIS L1096-A, AFNOR G07-111, EDANA 140.1/2, TAPPI T251, etc.
【Instrument Features】:
1. Fast testing speed, typically 20-30 seconds per test.
2. Color touchscreen operation with Chinese/English menu display.
3. Customizable parameters and units for different national standards; test results require no conversion and can be printed directly.
4. Fully compliant with international standards, achieving advanced levels in stability, repeatability, and reliability.
5. Uses internationally renowned imported pressure sensors to ensure accurate test data.
6. Equipped with lockable silent swivel casters for easy mobility.
7. Features a retractable worktable for convenient testing and space-saving.
【Technical Specifications】:
1. Pressure range: 0-300 Pa.
2. Measurement units: mm/s; cfm; cm3/cm2/s; L/m2/s; L/dm2/min;
m3/m2/min; m3/m2/h; dm3/s/25cm2.
3. Testing range: 0.2-12,826 mm/s.
4. Display resolution: 0.1.
5. Testing accuracy: ≤ ±2%.
6. Sample thickness: ≤12 mm.
7. Instrument calibration: Standard orifice plate calibration.
8. Power supply: AC220V±10%.
9. Power: 1100W.
10. Dimensions: 450×710×1000 mm.
11. Net weight: 115 kg.
